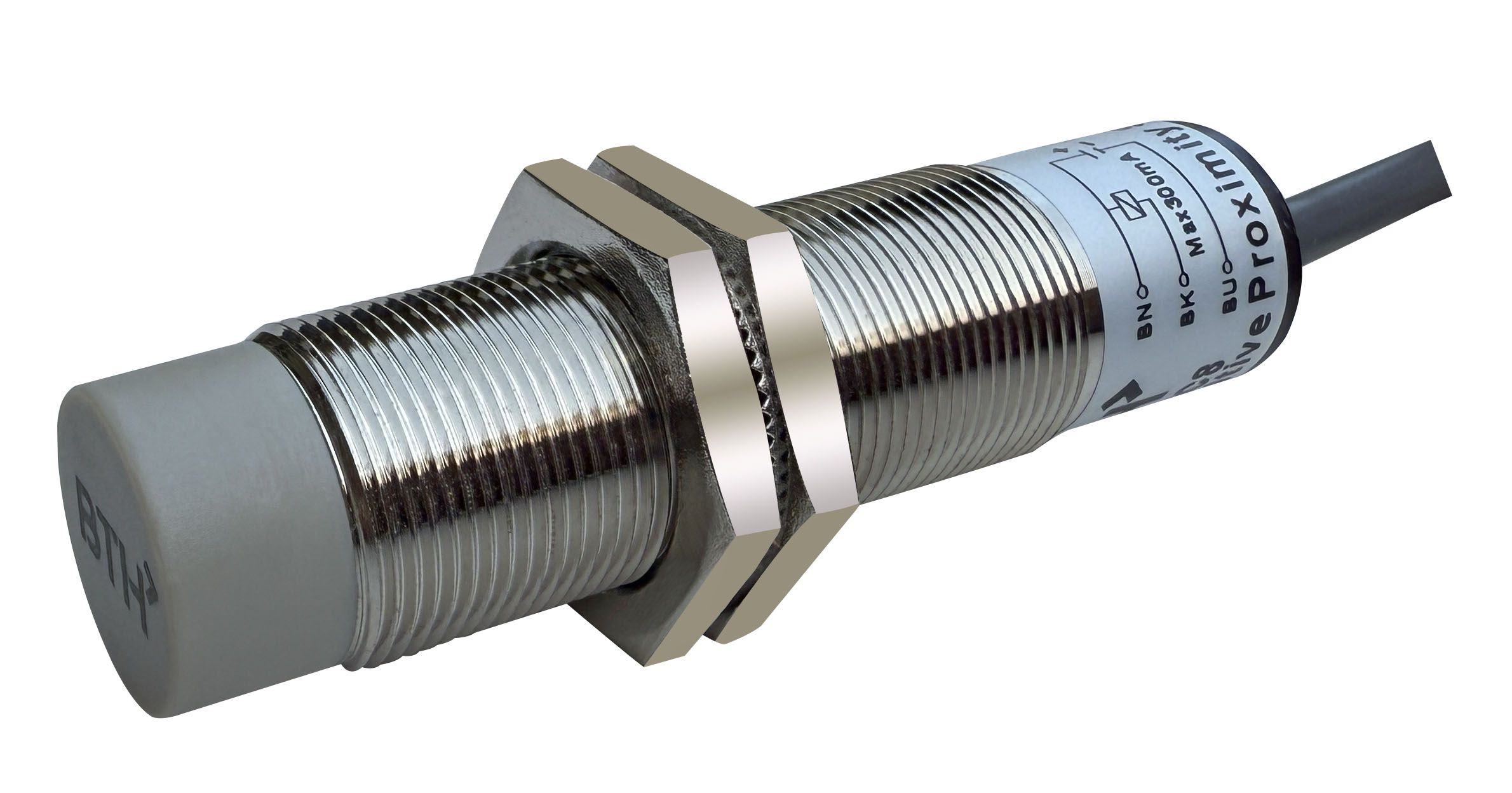

ACR18-AC8 ||Ashoka Series Capacitive Proximity Sensor, AC 2 Wire, Diameter 18mm, Sensing Range 8mm, Non Flush, AC NC

Out of stock

SKU

ACR18-AC8

Special Price ₹975.00 Regular Price ₹1,500.00

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Function: AC NC
Outer Diameter: ⌀18mm
Sensing Distance: 8mm
Response frequency: 25Hz
Mounting: Non Flush Mountable
Hysteresis: Within 1%-10% of sensing distance
Supply voltage : 90~250V AC
No load current : max 5mA
Voltage Drop: max 7V AC
Temperature Influence: –25ºC ~ 65ºC (±15% of sensing distance in the operating temperature range with rated voltage)
Output Current: 10~300mA max.
Insulation Resistance: 50MΩ min. (at 500VDC)
Dielectric Strength: 2000VAC, 50/60Hz for 1min
Vibration Resistance: Withstand
Shock Resistance: Withstand
Indicator: Operating Indicator (Red Light)
Ambient temperature: –25ºC to +70ºC (non-freezing condition) Storage
Ambient Humidity: 35% to 95%RH
Protection Circuit: Surge Protection circuit, Impulse Protection
Protection: as per IP65
Connection: Pre wired 2mtr. PVC cable
Housing Material: Brass coated, heat resistance ABS
Approval: CE
Standard Detecting Target Material: Oil, PVC
Standard Detecting Target Factor: 0.4
