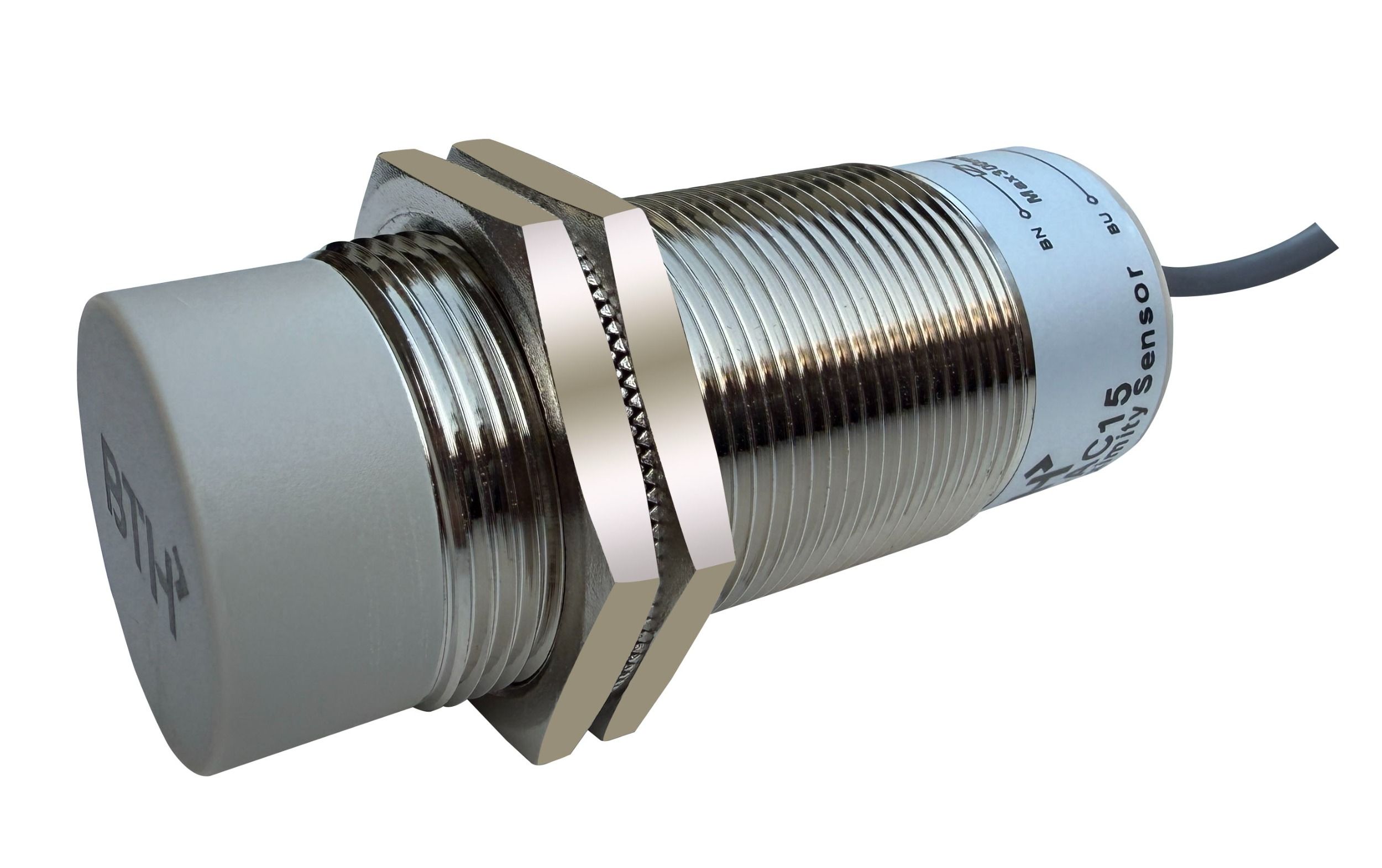

ACR30-PN15 ||Ashoka Series Capacitive Proximity Sensor, Diameter 30mm, Sensing Range 15mm, Non Flush, PNP NO

In stock

SKU

ACR30-PN15

Special Price ₹1,170.00 Regular Price ₹1,800.00

(18% GST Extra)

Qty

Add to Wish List

Able to detect iron, metal, plastic, water, stone, wood etc.
Long life cycle & high reliability
Convenient to adjust the detecting distance by sensitivity adjustment potentiometer
Application to control level and position
Standard, cylindrical housing styles
Excellent EMC performance

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Function: PNP NO
Outer Diameter: ⌀30mm
Sensing Distance: 15mm
Response frequency: 200Hz
Mounting: Non Flush Mountable
Hysteresis: Within 1%-10% of sensing distance
Supply voltage : 6~36V DC
No load current : max 12mA at 12V DC
Voltage Drop: max 1V DC
Temperature Influence: –25ºC ~ 65ºC (±15% of sensing distance in the operating temperature range with rated voltage)
Output Current: 300mA max.
Insulation Resistance: 50MΩ min. (at 500VDC)
Dielectric Strength: 1000VAC, 50/60Hz for 1min
Vibration Resistance: Withstand
Shock Resistance: Withstand
Indicator: Operating Indicator (Red Light)
Ambient temperature: –25ºC to +70ºC (non-freezing condition) Storage
Ambient Humidity: 35% to 95%RH
Protection Circuit: Reverse polarity protection, Surge protection circuit, Overload & short circuit protection
Protection: as per IP65
Connection: Pre wired 2mtr. PVC cable
Housing Material: Brass coated, heat resistance ABS
Approval: CE
Standard Detecting Target Material: Wood
Standard Detecting Target Factor: 0.8
