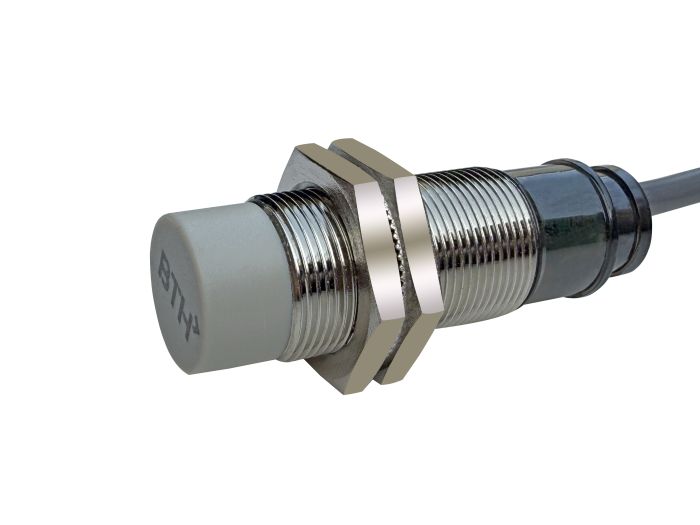

AIR18-AN10N||Ashoka Series Inductive Proximity Sensor, AC 2 Wire, Diameter 18mm, Sensing Range 8mm, Non Flush, NO

In stock

SKU

AIR18-AN10N

Special Price ₹585.00 Regular Price ₹900.00

(18% GST Extra)

Qty

Add to Wish List

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Function: NO
Outer Diameter: ⌀18mm
Sensing Distance: 8mm
Response frequency: 25Hz
Mounting: Non Flush Mountable
Hysteresis: Within 1%-10% of sensing distance
Standard Detecting Target: 18×18×1mm (Iron)
Voltage: Supply voltage
Current: Output current
Temperature Influence: When at –25ºC ~ 65ºC sensing distance within ±15% of sensing distance at rated voltage
Insulation Resistance: 50MΩ min. (at 500VDC)
Dielectric Strength: 2000VAC, 50/60Hz for 1min
Vibration Resistance: Withstand
Shock Resistance: Withstand
Indicator: Operating Indicator (Red Light)
Ambient temperature: –25ºC to +70ºC (non-freezing condition) Storage
Ambient Humidity: 35% to 95%RH
Protection Circuit / Protection: Surge suppressor / as per lP67(lEC specification)
Connection: Pre wired 2mtr. PVC cable
Body: Housing- Brass-coated, Surface - Heat-resistance ABS
Approval: CE
