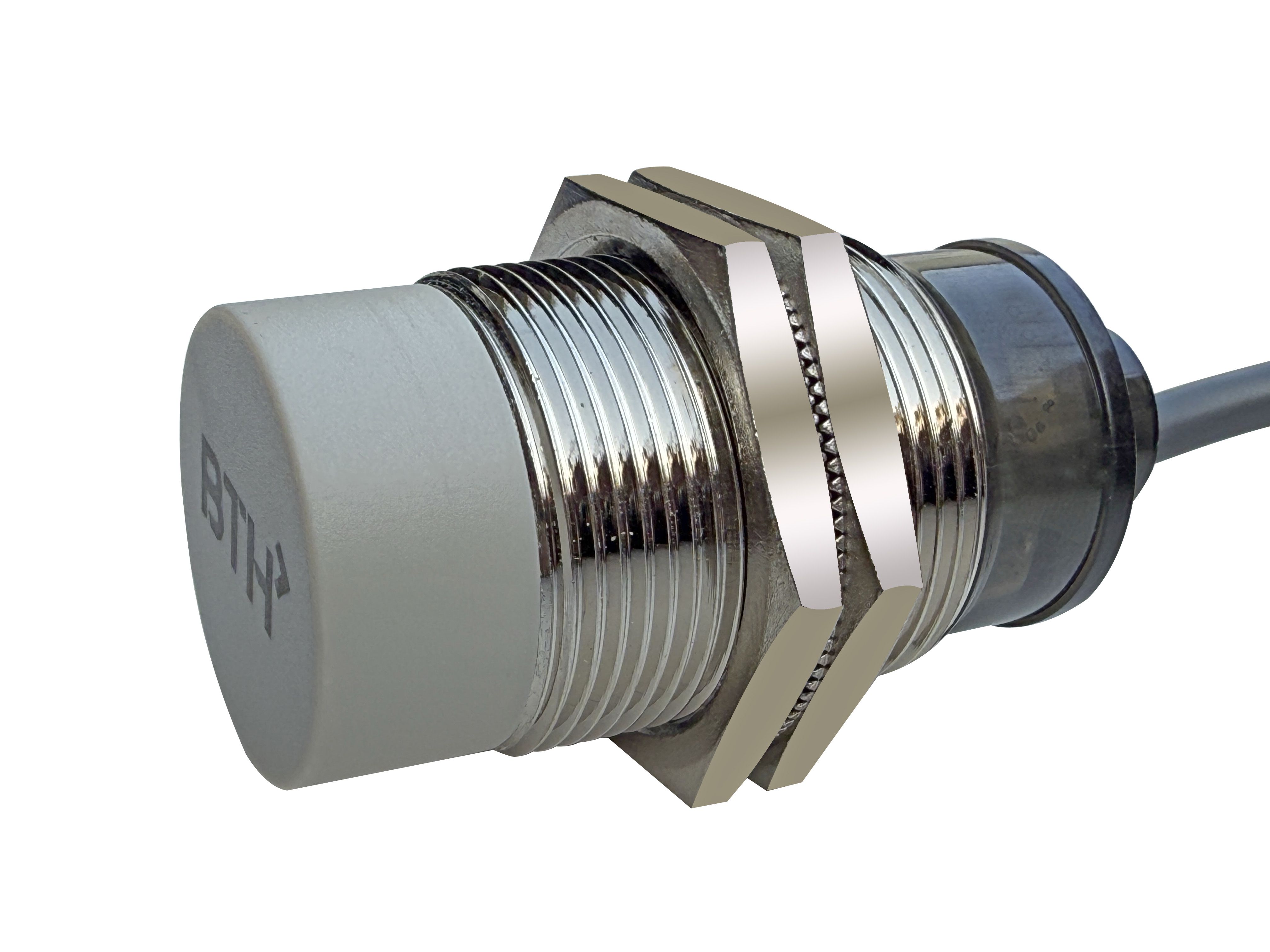

AIR30-PC18N||Ashoka Series Inductive Proximity Sensor, Diameter 30mm, Sensing Range 15mm, Non Flush, PNP NC

Out of stock

SKU

AIR30-PC18N

Special Price ₹910.00 Regular Price ₹1,400.00

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Function: PNP NC
Outer Diameter: ⌀30mm
Sensing Distance: 15mm
Response frequency: 100Hz
Mounting: Non Flush Mountable
Hysteresis: Within 1%-10% of sensing distance
Standard Detecting Target: 30×30×1mm (Iron)
Voltage: Supply voltage
Current: Output current
Temperature Influence: When at –25ºC ~ 65ºC sensing distance within ±15% of sensing distance at rated voltage
Insulation Resistance: 50MΩ min. (at 500VDC)
Dielectric Strength: 1000VAC, 50/60Hz for 1min
Vibration Resistance: Withstand
Shock Resistance: Withstand
Indicator: Operating Indicator (Red Light)
Ambient temperature: –25ºC to +70ºC (non-freezing condition) Storage
Ambient Humidity: 35% to 95%RH
Protection Circuit: Reverse polarity protection, Surge protection circuit, Overload & Short circuit protection
Protection: as per lP67(lEC specification)
Connection: Pre wired 2mtr. PVC cable
Body: Housing- Brass-coated, Surface - Heat-resistance ABS
Approval: CE
