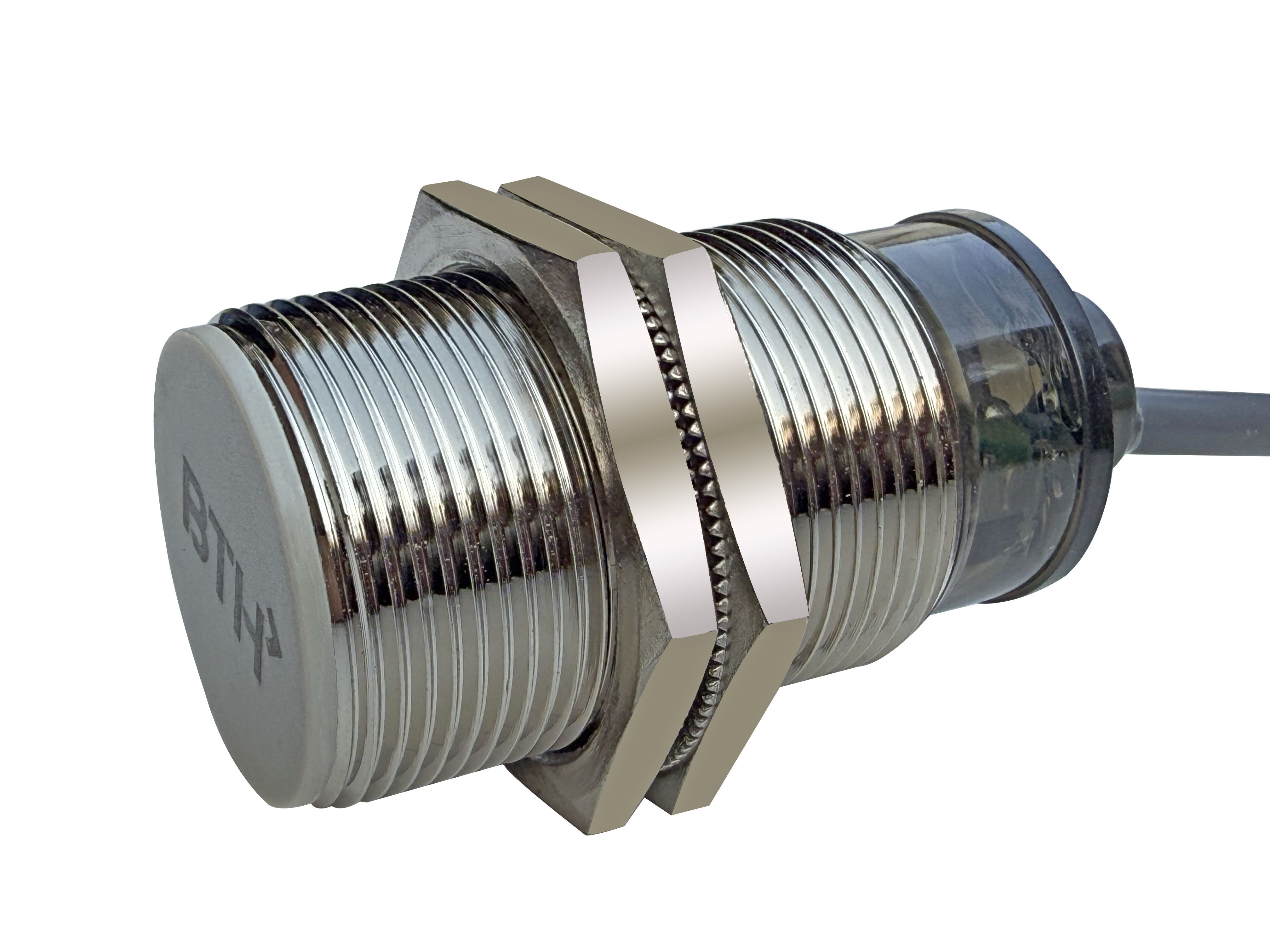

AIR30-TN10F||Ashoka Series Inductive Proximity Sensor, DC 2 Wire, Diameter 30mm, Sensing Range 10mm, Flush, NO

In stock

SKU

AIR30-TN10F

Special Price ₹910.00 Regular Price ₹1,400.00

(18% GST Extra)

Qty

Add to Wish List

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Switching: NO
Outer Diameter: ⌀30mm
Sensing Distance: 10mm
Response frequency: 200Hz
Mounting: Flush Mountable
Voltage Drop: max 1.5VDC
Output Current: 3~100mA
Voltage: 6~36VDC (10~30VDC)
Hysteresis: Within 1%-10% of sensing distance
Standard Detecting Target: 30×30×1mm (Iron)
Temperature Influence: When at –25ºC ~ 65ºC sensing distance within ±15% of sensing distance at rated voltage
Insulation Resistance: 50MΩ min. (at 500VDC)
Dielectric Strength: 1000VAC, 50/60Hz for 1min
Vibration Resistance: Withstand
Shock Resistance: Withstand
Indicator: Operating Indicator (Red Light)
Ambient temperature: –25ºC to +70ºC (non-freezing condition) Storage
Ambient Humidity: 35% to 95%RH
Protection Circuit: Reverse polarity protection, Surge protection circuit, Overload & Short circuit protection
Protection: as per lP67(lEC specification)
Connection: Pre wired 2mtr. PVC cable
Body: Housing- Brass-coated, Surface - Heat-resistance ABS
Approval: CE
