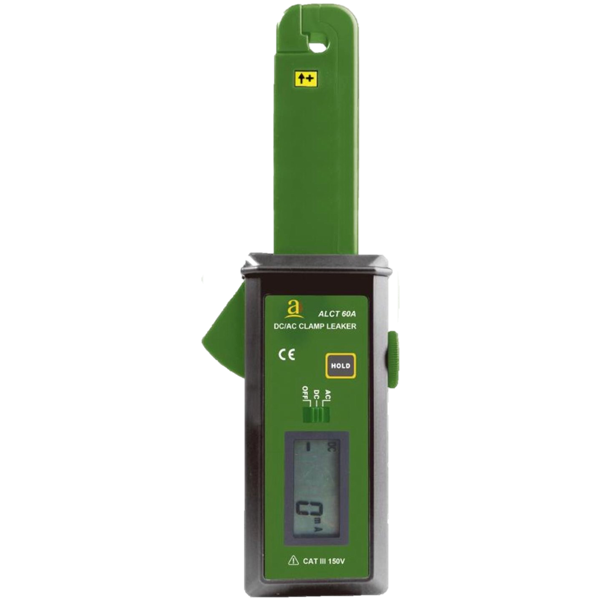

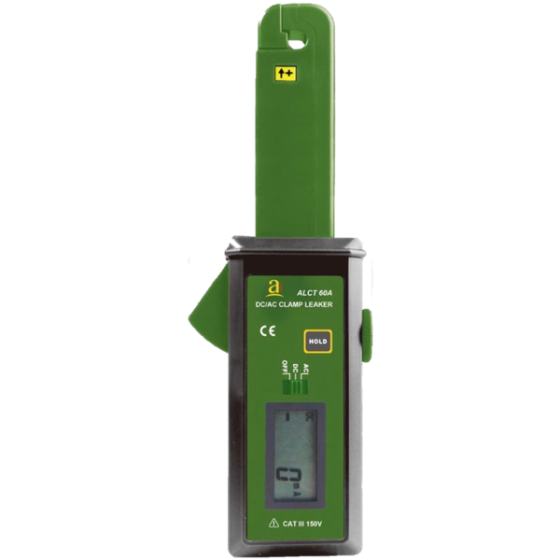

Rishabh ALCT 60A Smart AC/DC Leakage Clamp Meter
In stock
SKU
Agam ALCT 60A
Special Price
₹15,115.75
Regular Price
₹23,255.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| General Functions | |
|---|---|
| Current (A) | 0mA ~ 60.0A AC/DC |
| Accuracy | ±(2% + 5) |
| Resolution | 1mA AC/DC |
| Frequency Response | AC: 45Hz ~ 200Hz |
| Special Functions | |
| Display Mode | 4-bit LCD display, 10,000 counts |
| Jaw Size | φ 7mm (max wires O.D.) |
| Auto Range | √ |
| RS-232 Data Transmission | √ |
| Data Storage | 99 groups |
| Zero Adjustment | Adjust ZERO key to return to zero, remove residual magnetism induction, and then clamp the wires to be tested |
| Data Hold | √ |
| Line Voltage | Not beyond 600V |
| Auto Power Off | After 5 minutes |
| Low Battery Indication | Indicates low battery when the voltage is 7.2V |
| Sampling Rate | About 2 sec per time |
| Working Current | 20mA |
| Applicable Standards | |
| Pollution Grade | 2 |
| Standards | IEC 1010-1, IEC 1010-2-032, CAT III 150V |
| General Characteristics | |
| Power Supply | Zinc-manganese battery 6F22 9V |
| Product Size | 168mm × 65mm × 34mm |
| Product Weight | 180g (with batteries) |
| Standard Accessories | |
| |
No specifications available for this product.
