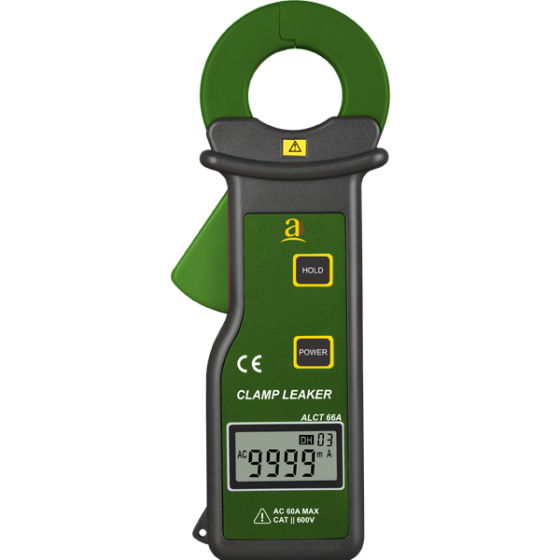

Rishabh ALCT 66A AC Smart Leakage Clamp Meter
In stock
SKU
Agam ALCT 66A
Special Price
₹11,804.00
Regular Price
₹18,160.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| General Functions | |
|---|---|
| Display Mode | 4 Digits LCD Display |
| Auto Range | √ |
| Jaw Capacity | 25mm × 30mm |
| RS-232 | √ |
| Data Storage | 99 |
| Peak Value | √ |
| Data Hold | √ |
| Auto Power Off | 5 Minutes |
| Low Battery Indication | ≤7.2V |
| Over-Range Display | OL |
| Specifications | |
| Leakage Current (A) | 0.001mA to 60.00A |
| Accuracy | ±(1.5% + 5) |
| Voltage (Frequency) | 0V ~ 600V (50Hz / 60Hz) √ |
| Resolution | 1µA |
| Test Mode | Clamp CT, Integral Approach |
| Environmental Specifications | |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 80% @ -10°C to 40°C; Below 70% @ -20°C to 60°C |
| Applicable Safety Standards | Pollution grade 2, IEC 61010-1, IEC 61010-2-032, CAT II 600V |
| General Characteristics | |
| Power | 9V Battery (6F22) |
| LCD Size | 32mm × 15mm |
| Product Size | 175mm × 70mm × 38mm |
| Standard Accessories | Battery, RS232 Interface Cable, Software CD, Carrying Bag |
