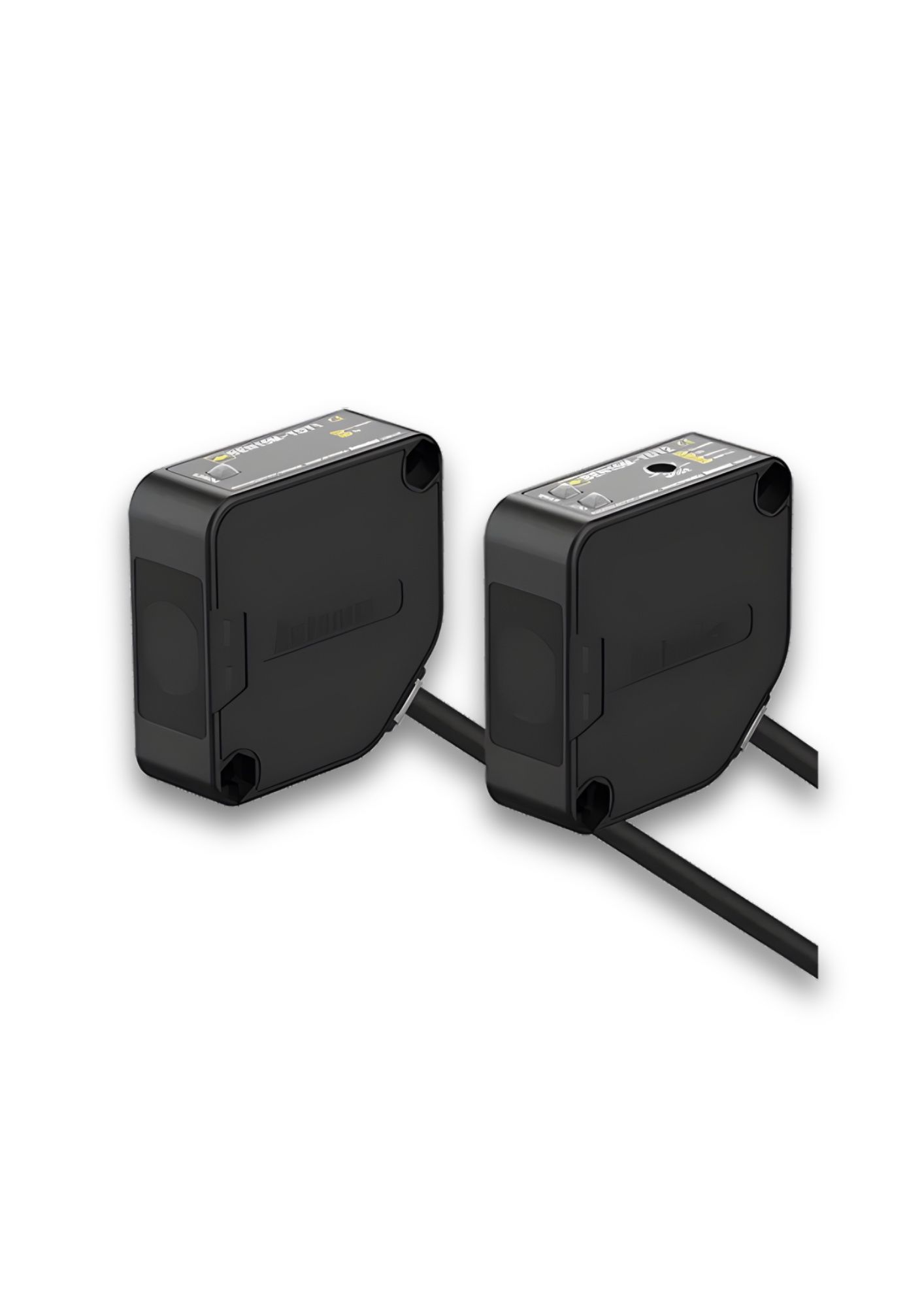

Autonics BEN10M-TDT, 10m Sensing, Sensing target Opaque material of min. Ø16mm, Through-beam type, Universal AC/DC Photoelectric Sensor
In stock
SKU
BEN10M-TDT
Special Price
₹2,588.30
Regular Price
₹4,706.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Through-beam type |
| Sensing distance | 10 m |
| Sensing target | Opaque material of min. Ø16 mm |
| Light source | Infrared LED (850 nm) |
| Response time | Max. 1 ms |
| Power voltage | 12–24 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Emitter / Receiver: Max. 50 mA |
| Operation mode | Light ON / Dark ON (set by switch) |
| Control output | NPN & PNP open collector (simultaneous output) |
| Connection type | Cable type (Ø5, 2 m) |
| Ambient illumination |
Sunlight: Max. 11,000 lx, Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient temperature | -20 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP50 |
| Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material |
Case, Case cover: Heat resistant Acrylonitrile butadiene styrene, Sensing part: Polycarbonate (with polarizing filter: polymethyl methacrylate), Bracket: Steel plate (cold commercial), Bolt & Nut: Steel chromium molybdenum |

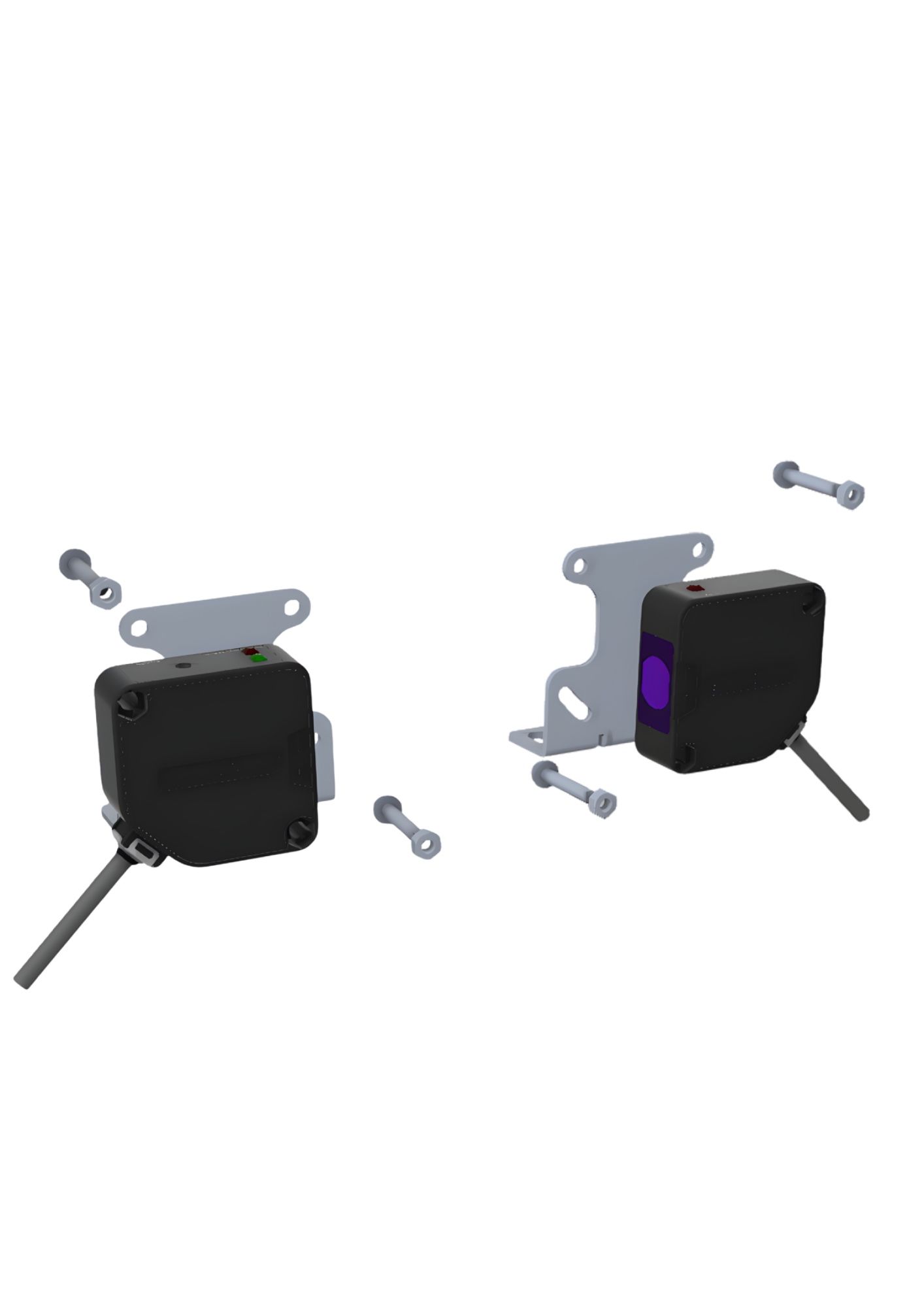

| Accessories (Common) | Adjuster driver, Fixing bracket, Bolts, Nuts |
