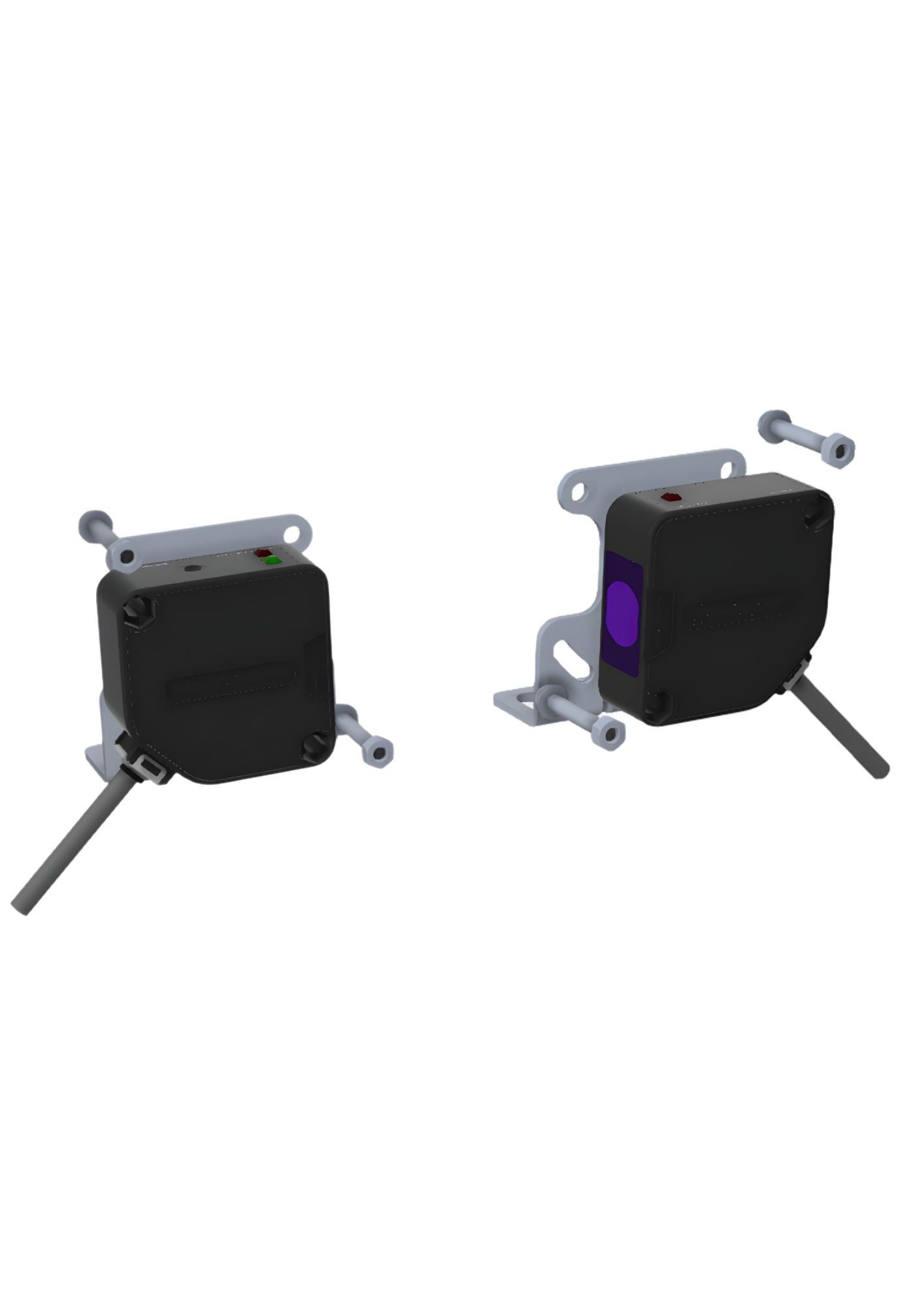

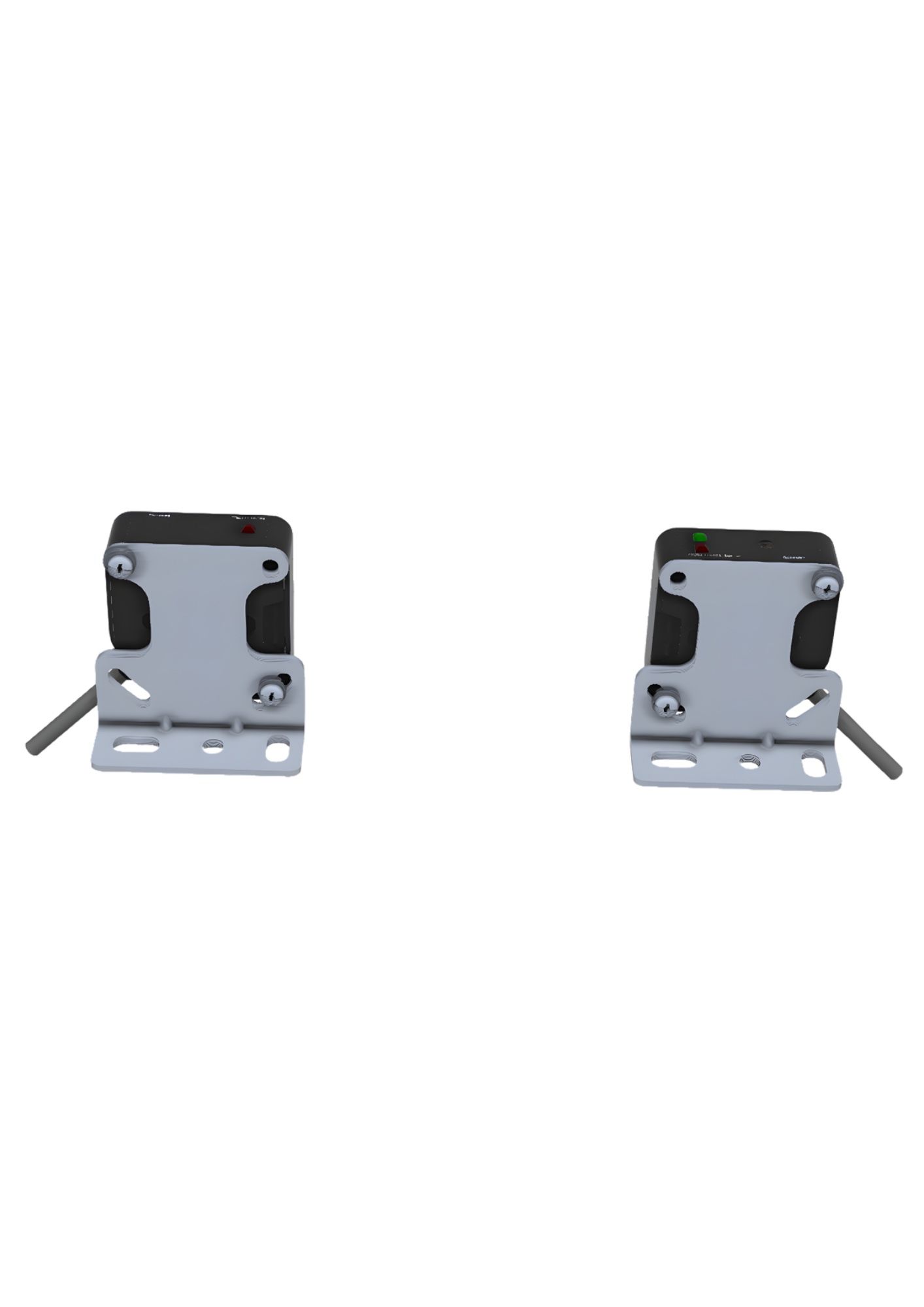

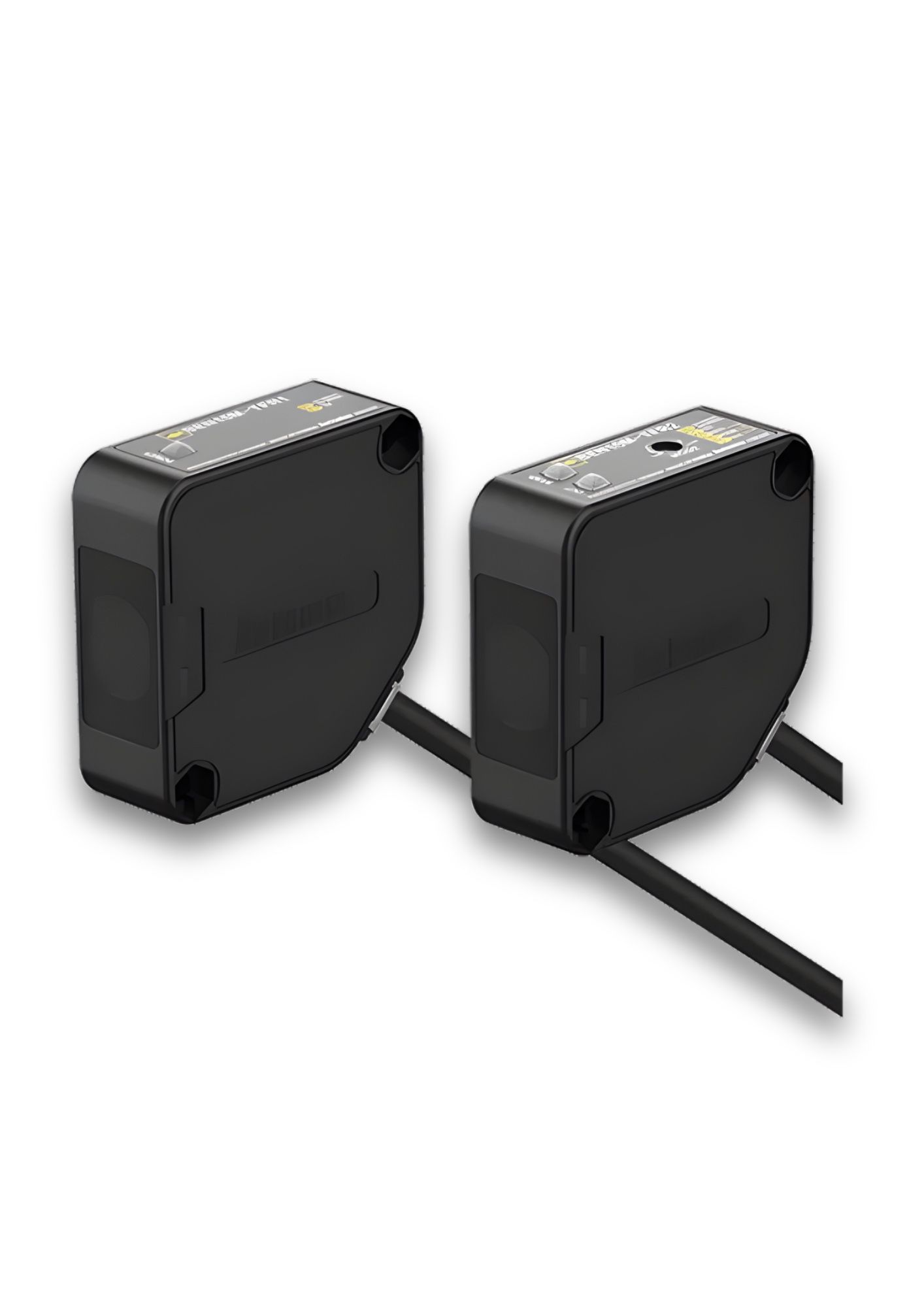

Autonics BEN10M-TFR, 10m Sensing, Sensing target Opaque material of min. Ø16mm, Through-beam type, Universal AC/DC Photoelectric Sensor
Out of stock
SKU
BEN10M-TFR
Special Price
₹3,059.10
Regular Price
₹5,562.00
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Through-beam type |
| Sensing distance | 10 m |
| Sensing target | Opaque material of minimum Ø16 mm |
| Light source | Infrared LED (850 nm) |
| Response time | Max. 20 ms |
| Power voltage |
24–240 VAC ±10% (50/60 Hz), 24–240 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 4 VA |
| Operation mode | Light ON / Dark ON (set by switch) |
| Control output | Relay |
| Connection type | Cable type (Ø5, 2 m) |
| Ambient illumination |
Sunlight: Max. 11,000 lx, Incandescent lamp: Max. 3,000 lx |
| Ambient temperature | −20 to 65°C, Storage: −25 to 70°C |
| Protection structure | IP50 |
| Ambient humidity | 35 to 85% RH (storage: 35 to 85% RH) |
| Material |
Case & case cover: Heat-resistant ABS Sensing part: Polycarbonate (with polarizing filter: PMMA) Bracket: Steel plate (cold commercial) Bolt & nut: Chromium molybdenum steel |
| Accessories | Adjuster driver, Fixing bracket, Bolts, Nuts |
