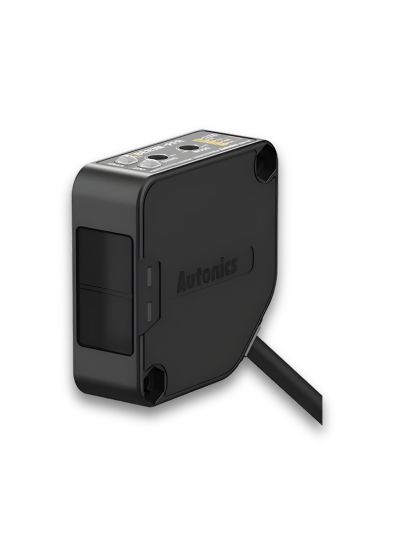

Autonics BEN300-DFR, 300mm Sensing, Sensing target Opaque & Translucent material, Diffuse reflective type, Universal AC/DC Photoelectric Sensor
In stock
SKU
BEN300-DFR
Special Price
₹2,653.20
Regular Price
₹4,824.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 300 mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED (940 nm) |
| Response time | Max. 20 ms |
| Power voltage | 24–240 VAC ±10% (50/60 Hz), 24–240 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Max. 4 VA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON / Dark ON (set by switch) |
| Control output | Relay |
| Connection type | Cable type (Ø5, 2 m) |
| Ambient illumination |
Sunlight: Max. 11,000 lx, Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient temperature | -20 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP50 |
| Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis (distance) | Max. 20% at sensing distance |
| Material |
Case, Case cover: Heat resistant Acrylonitrile butadiene styrene, Sensing part: Polycarbonate (with polarizing filter: polymethyl methacrylate), Bracket: Steel Plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Accessories (Common) | Adjuster driver, Fixing bracket, Bolts, Nuts |
No specifications available for this product.
