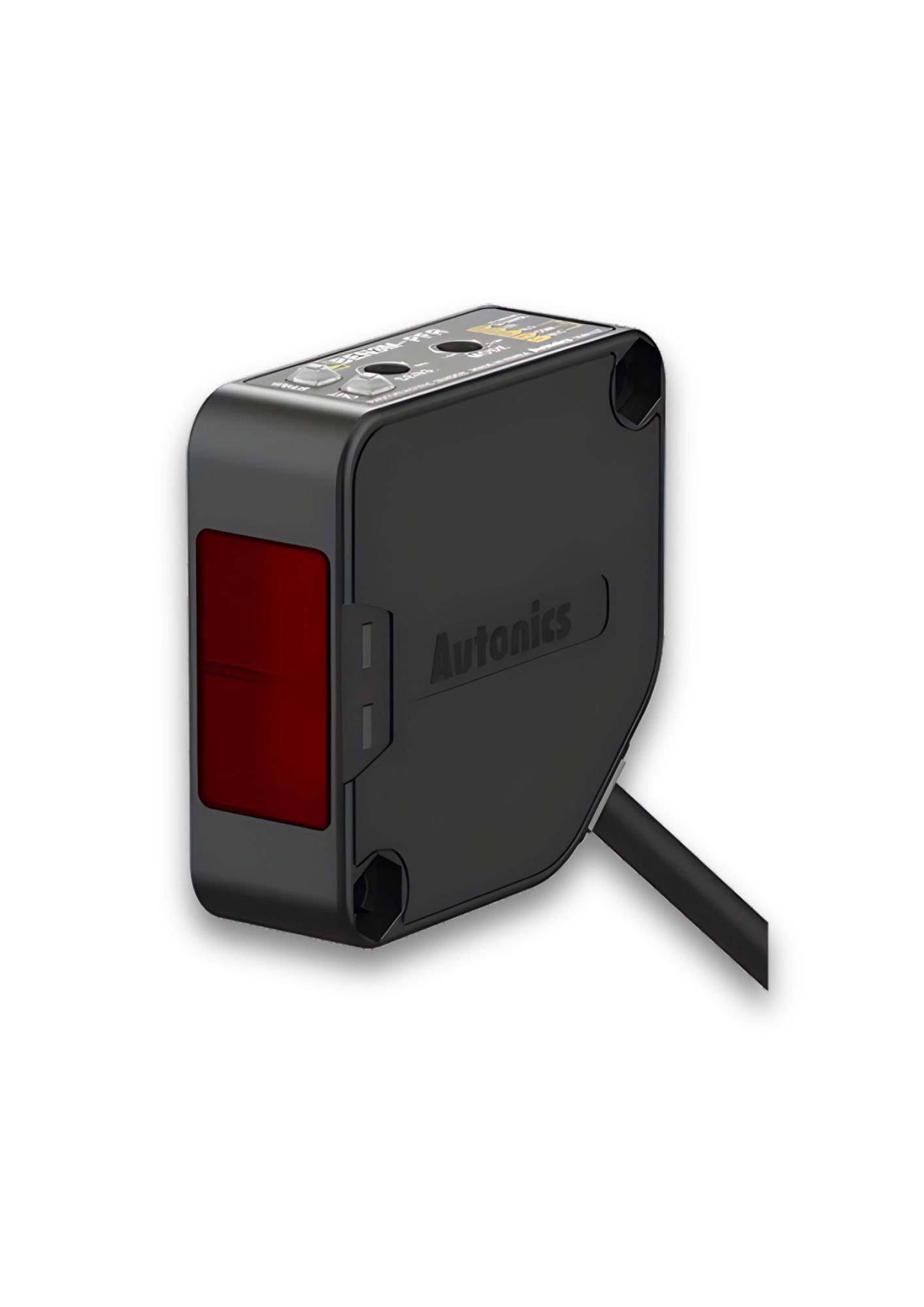

Autonics BEN3M-PFR, 3m(MS-2) Sensing, Sensing target Opaque material of min. Ø60mm, Retroreflective type, Universal AC/DC Photoelectric Sensor
In stock
SKU
BEN3M-PFR
Special Price
₹2,588.30
Regular Price
₹4,706.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Retroreflective type (built-in polarizing filter) |
| Sensing distance | 3 m (MS-2) |
| Sensing target | Opaque material of minimum Ø60 mm |
| Light source | Red LED (660 nm) |
| Response time | Max. 20 ms |
| Power voltage |
24–240 VAC ±10% (50/60 Hz), 24–240 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Max. 4 VA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON / Dark ON (set by switch) |
| Control output | Relay |
| Connection type | Cable type (Ø5, 2 m) |
| Ambient illumination |
Sunlight: Max. 11,000 lx, Incandescent lamp: Max. 3,000 lx |
| Ambient temperature | −20 to 65°C, Storage: −25 to 70°C |
| Protection structure | IP50 |
| Ambient humidity | 35 to 85% RH (storage: 35 to 85% RH) |
| Material |
Case & case cover: Heat-resistant ABS Sensing part: Polycarbonate (with polarizing filter: PMMA) Bracket: Cold commercial steel plate Bolt & nut: Chromium molybdenum steel |

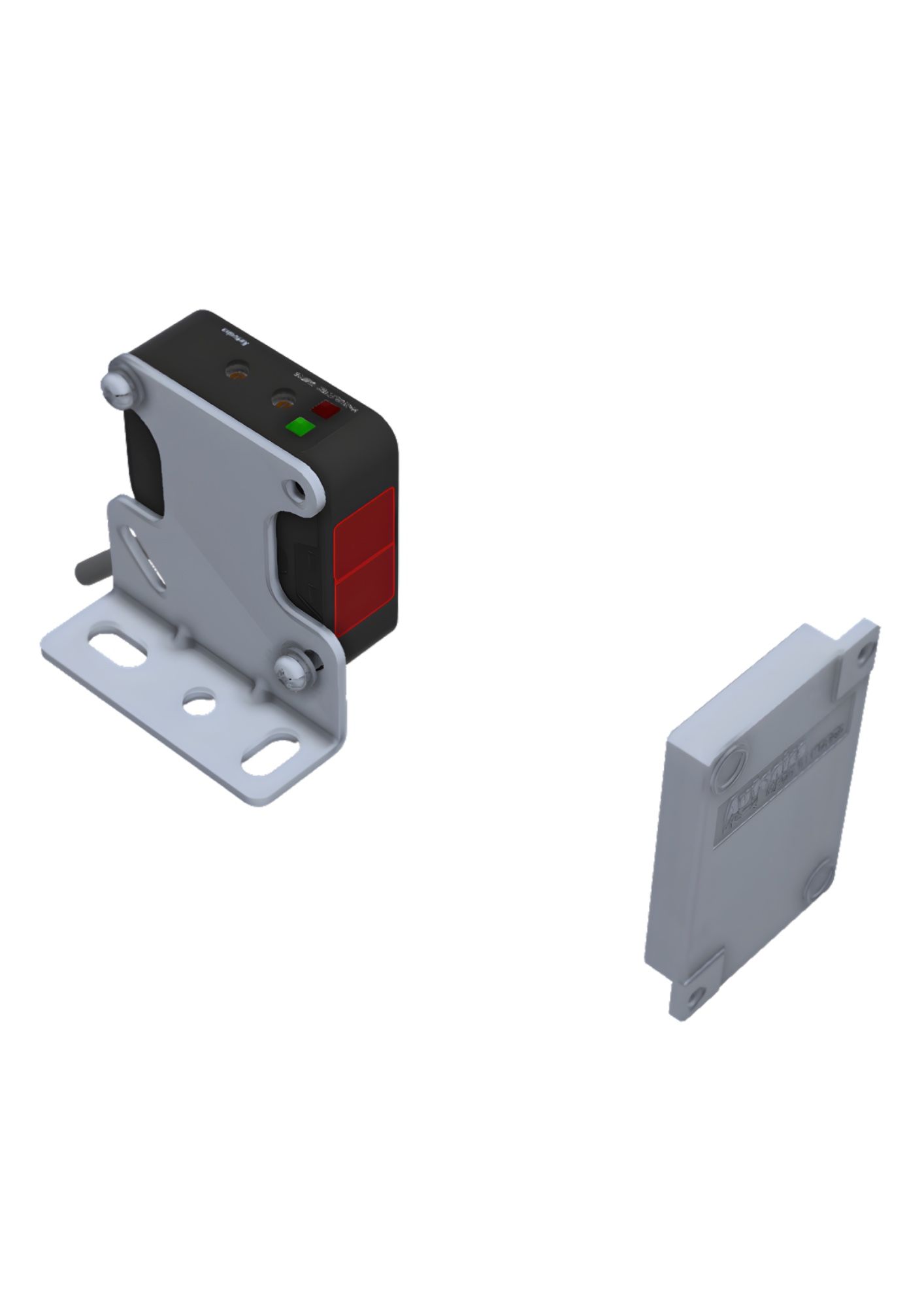

| Accessories (Individual) | Reflector (MS-2) |
| Accessories (Common) | Adjuster driver, Fixing bracket, Bolts, Nuts |
