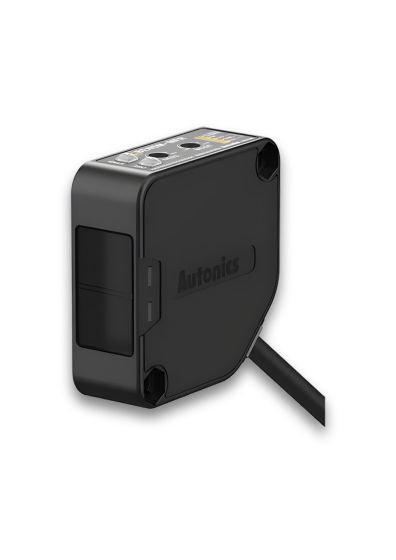

Autonics BEN5M-MDT, 5m Sensing, Sensing target Opaque material of min. Ø60mm, Retroreflective type, Universal AC/DC Photoelectric Sensor
In stock
SKU
BEN5M-MDT
Special Price
₹2,045.45
Regular Price
₹3,719.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing Type | Retroreflective type (standard type) |
| Sensing Distance | 5 m (MS-2) |
| Sensing Target | Opaque material of minimum Ø60 mm |
| Light Source | Infrared LED (940 nm) |
| Response Time | Maximum 1 ms |
| Power Voltage | 12–24 V DC ±10% (Ripple P-P: Max. 10%) |
| Current Consumption | Maximum 50 mA |
| Sensitivity Adjustment | Sensitivity adjuster |
| Operation Mode | Light ON / Dark ON (set by switch) |
| Control Output | NPN, PNP open collector (simultaneous output) |
| Connection Type | Cable type (Ø5 mm, 2 m) |
| Ambient Illumination |
Sunlight: Max. 11,000 lx Incandescent lamp: Max. 3,000 lx |
| Ambient Temperature |
Operating: -20 to 65 °C Storage: -25 to 70 °C |
| Protection Structure | IP50 |
| Ambient Humidity | 35–85% RH (Operating & Storage) |
| Material |
Case/Cover: Heat-resistant ABS Sensing part: Polycarbonate (PMMA polarizing filter) Bracket: Cold commercial steel plate Bolt/Nut: Chromium molybdenum steel |
| Accessories (Individual) | Reflector (MS-2) |

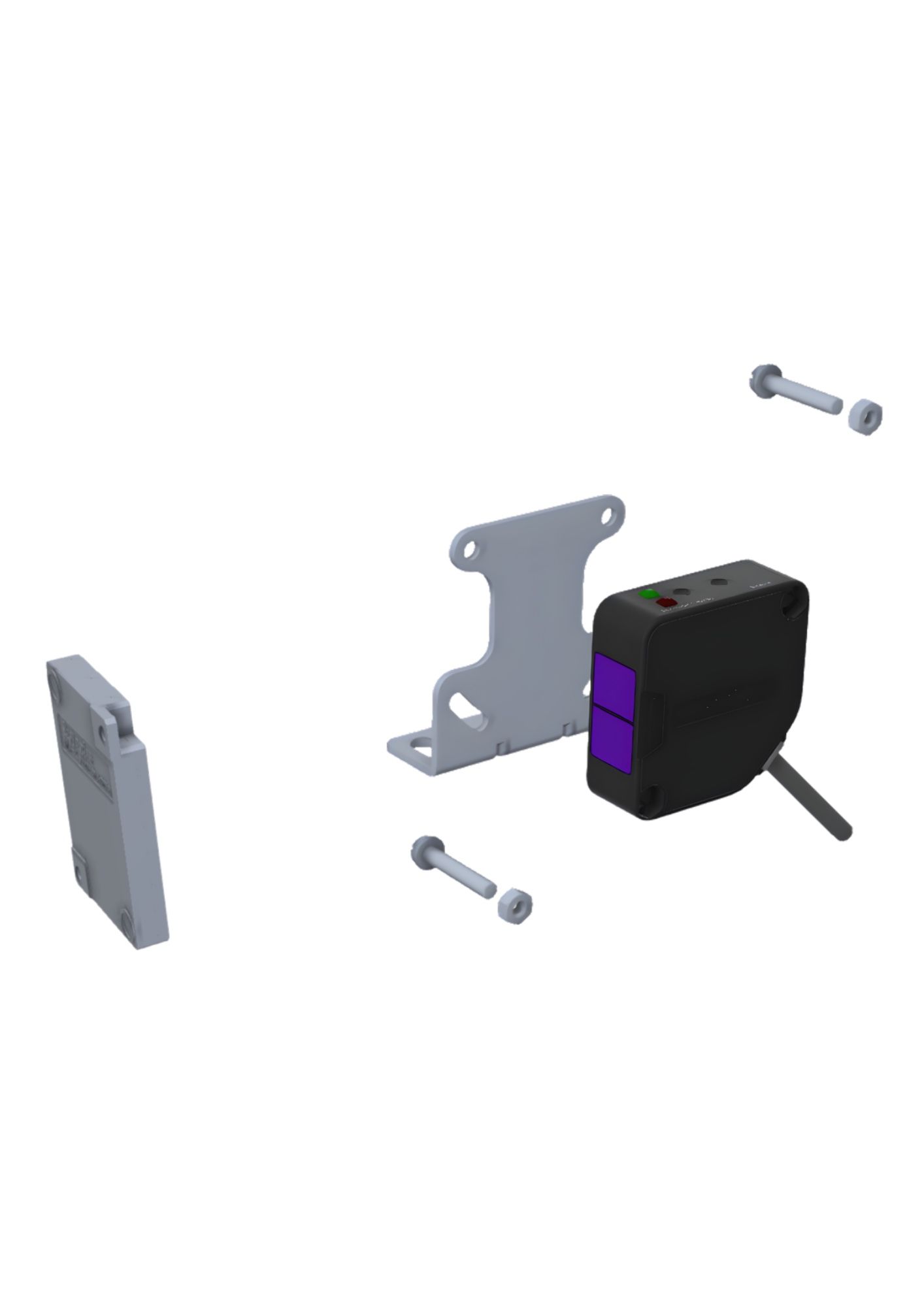

| Accessories (Common) | Adjuster driver, Fixing bracket, Bolts, Nuts |
