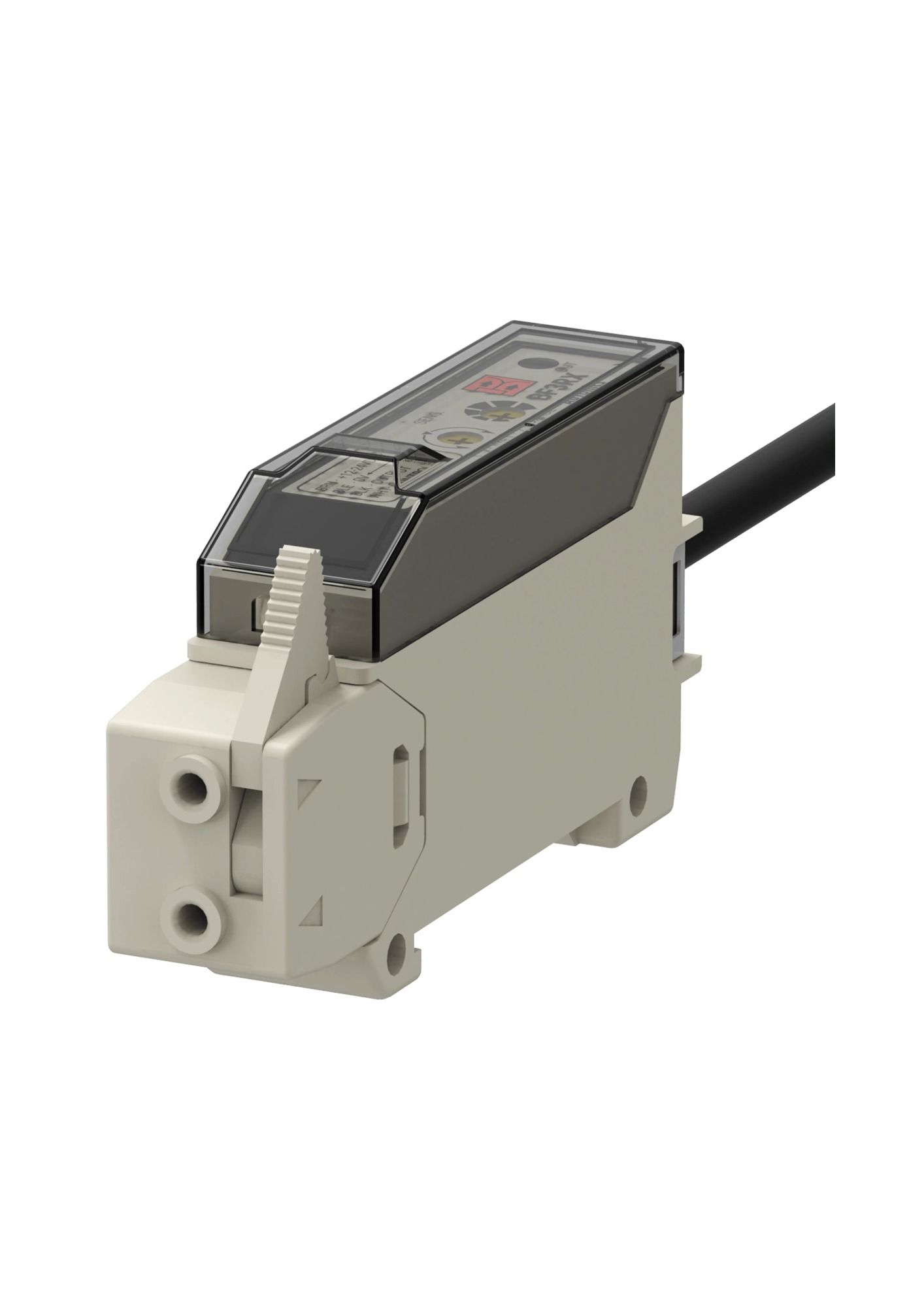

Autonics BF3RX, Built-in twin volume type, NPN open collector, Dual Adjustment Fiber Optic Amplifier
Out of stock
SKU
BF3RX
Special Price
₹2,087.25
Regular Price
₹3,795.00
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Type | Built-in twin volume type |
| Light source | Red LED (660 nm) |
| Response time | Max. 1 ms |
| Power voltage | 12–24 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Max. 40 mA |
| Operation mode | Light ON / Dark ON (set by control wire) |
| Control output | NPN open collector |
| Sensitivity adjustment | Sensitivity adjuster (coarse adjustment, fine adjustment) |
| Ambient illumination |
Sunlight: Max. 11,000 lx, Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient temperature | -10 to 50 ℃, storage: -25 to 70 ℃ |
| Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material |
Case: Acrylonitrile butadiene styrene, Cover: Polycarbonate |
| Cable specification |
Ø5 mm, 4-wire, 2 m (AWG24, core diameter: 0.08 mm, number of cores: 40, insulator out diameter: Ø1 mm) |
| Accessories | Sensitivity adjuster driver, Mounting bracket, Bolts, Nuts |
No specifications available for this product.
