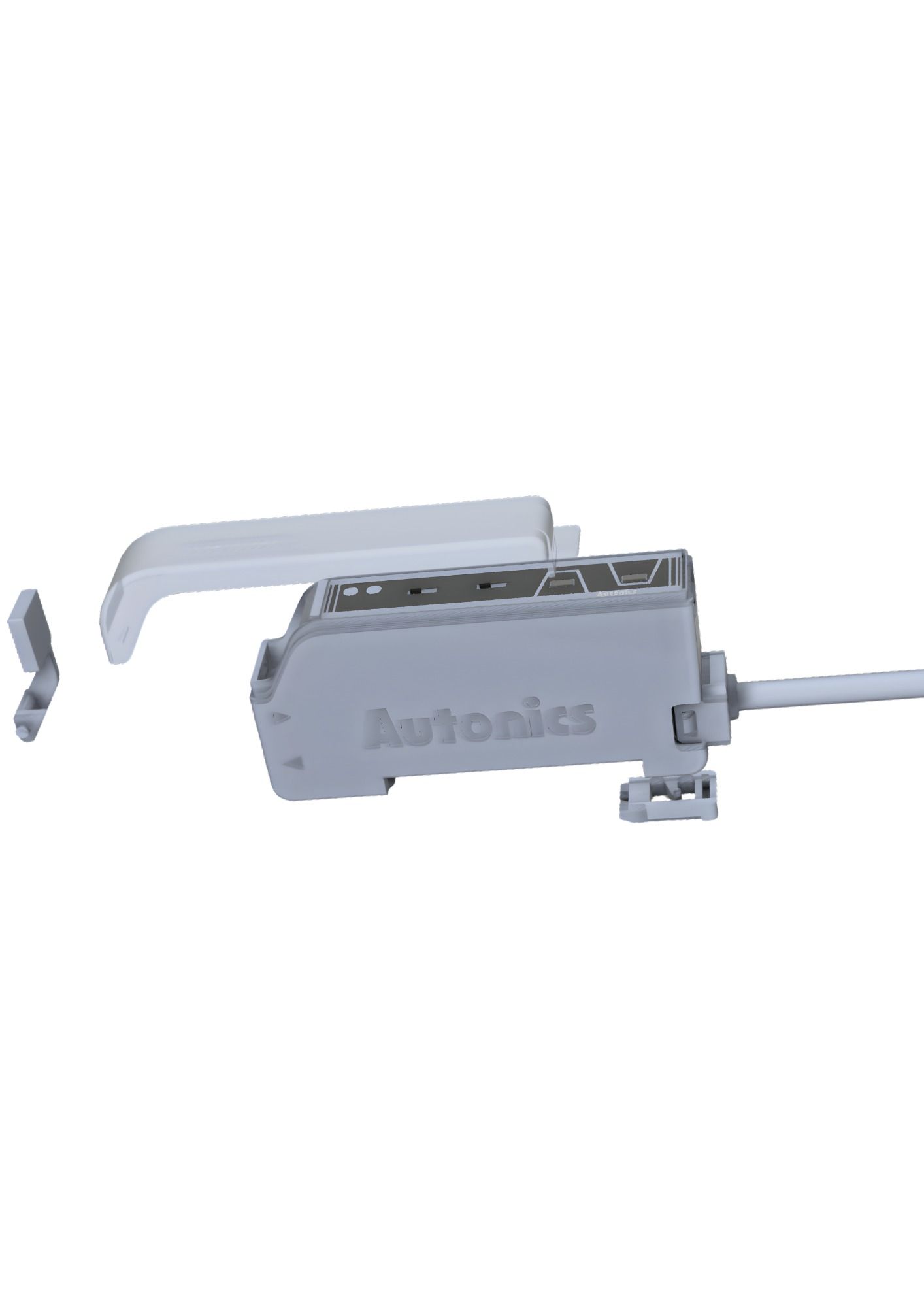

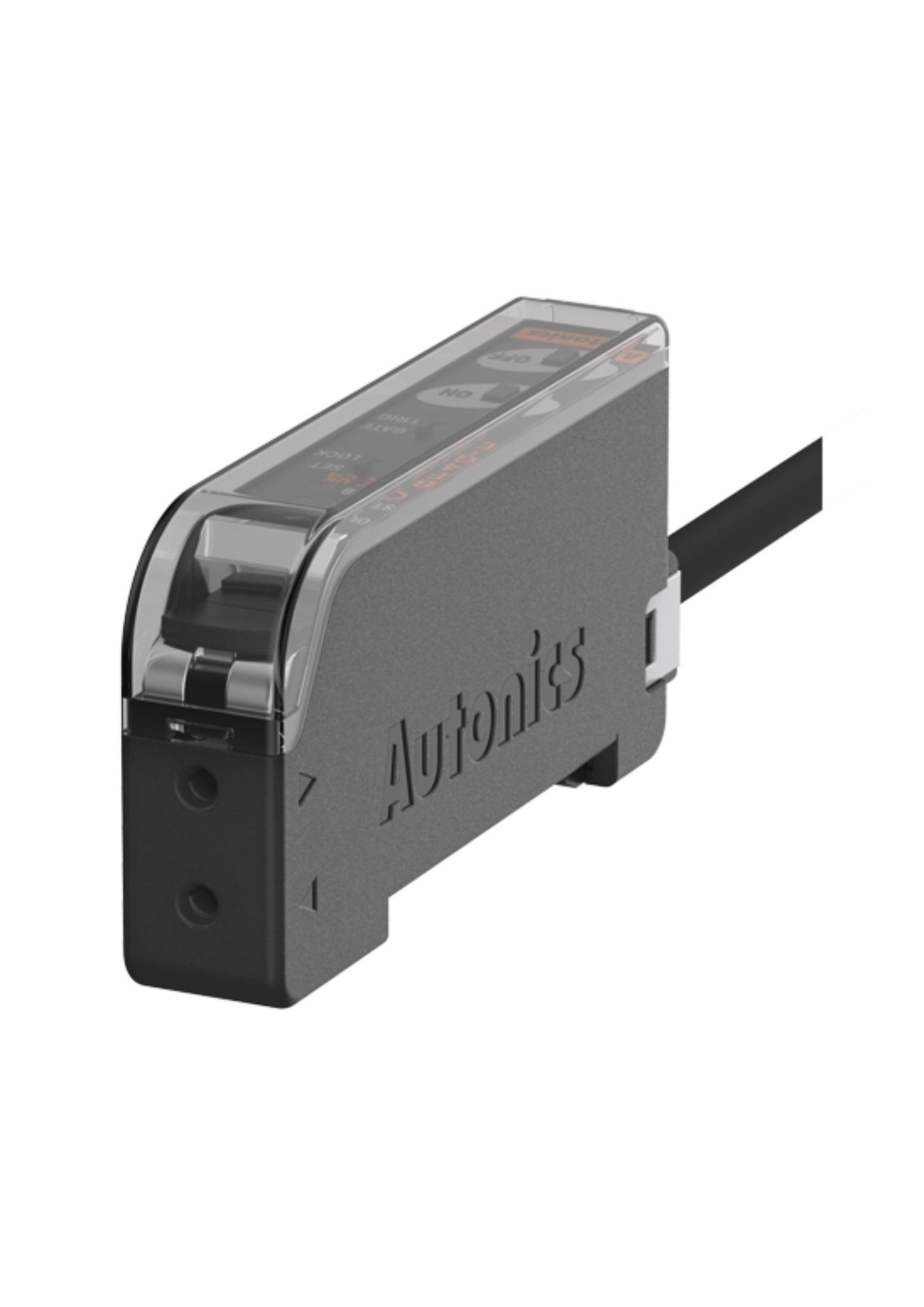

Autonics BF4R, Standard type, Light source: Red LED(660nm), Control output: NPN open collector, Digital Display Fiber Optic Amplifier
In stock
SKU
BF4R
Special Price
₹2,988.70
Regular Price
₹5,434.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Type | Standard type |
| Light source | Red LED (660 nm) |
| Response time |
Frequency 1: Max. 0.5 ms Frequency 2: Max. 0.7 ms |
| Power voltage | 12–24 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Maximum 45 mA |
| Operation mode | Light ON / Dark ON (set by ON/OFF button) |
| Control output | NPN open collector |
| Timer function | OFF Delay (40 ms) |
| Sensitivity adjustment | Manual |
| Ambient illumination |
Sunlight: Max. 11,000 lx Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient temperature | -10 to 50 ℃, storage: -20 to 70 ℃ |
| Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Mutual interference prevention |
Built-in differential frequency mode Frequency 1 (normal mode): Max. 0.5 ms Frequency 2: Max. 0.7 ms |
| Self-diagnosis output |
ON state under unstable sensing (target stays for 300 ms at unstable level) ON state when control output is short-circuited Load voltage: Max. 30 VDC Load current: Max. 50 mA Residual voltage: Max. 1 V (load current: 50 mA) |
| Material |
Case: Heat-resistant Acrylonitrile Butadiene Styrene (ABS) Cover: Polycarbonate |
| Cable specification |
Ø4 mm, 4-wire, 2 m (AWG22) Core diameter: 0.08 mm, Number of cores: 60 Insulator outer diameter: Ø1.25 mm |
| Accessories | Fixing bracket, Bolts, Nuts |
