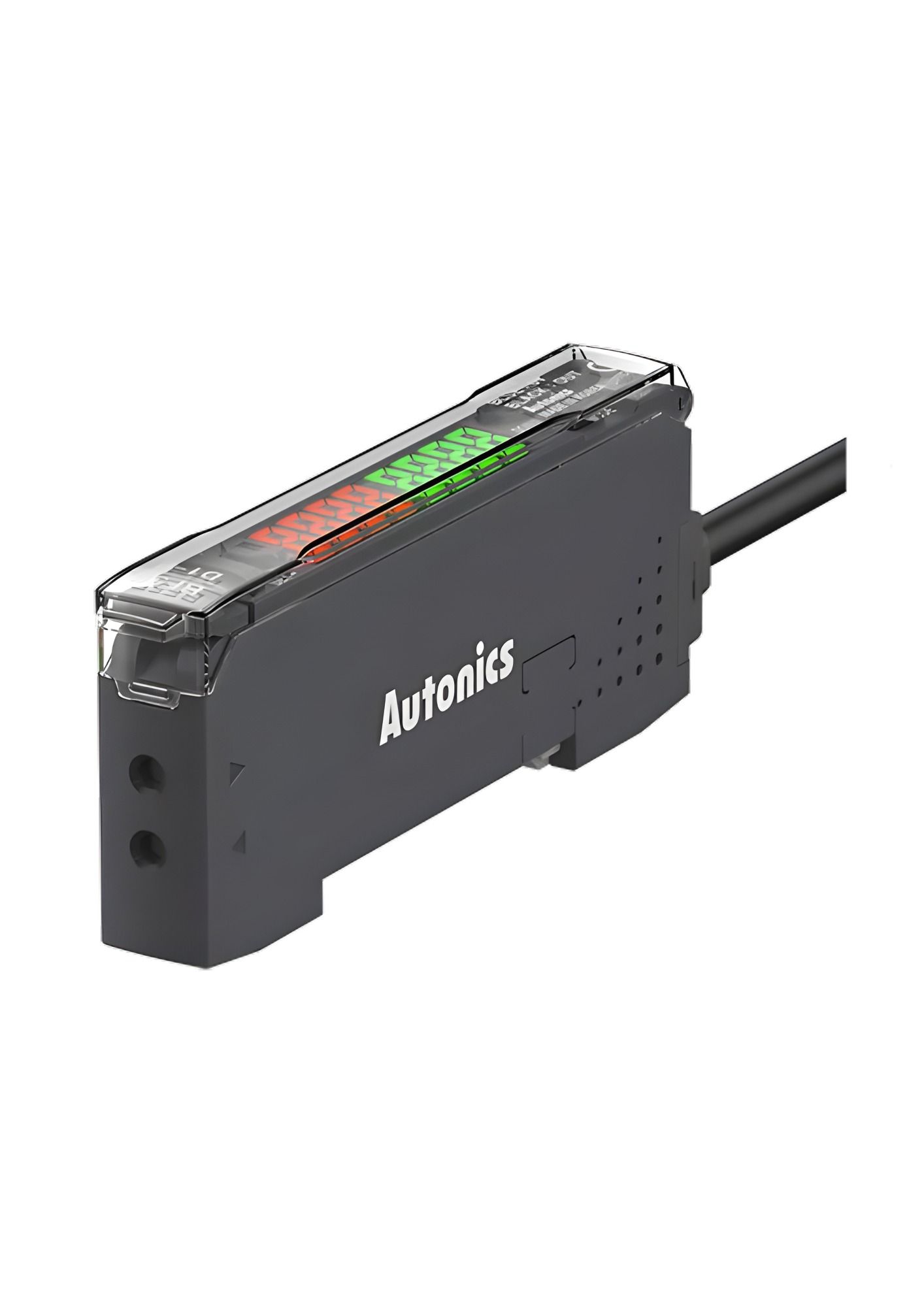

Autonics BF5R-D1-N, Dual display, 4-digit 7-segment LED, High Performance Dual Digital Fiber Optic Amplifiers
In stock
SKU
BF5R-D1-N
Special Price
₹5,645.20
Regular Price
₹10,264.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Type | Dual display |
| Display method | 4-digit 7-segment LED |
| Light source | Red LED (660 nm) |
| Response time | 50 μs, 150 μs, 500 μs, 4 ms, 10 ms |
| Power voltage | 12–24 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Maximum 50 mA |
| Operation mode | Light ON / Dark ON (set by parameter) |
| Control output | NPN open collector |
| Timer function | OFF, OFF Delay, ON Delay, One-shot (1 to 5000 ms) |
| Sensitivity adjustment |
Manual Teaching (auto-tuning, 1-point, 2-point, positioning) ※ Batch teaching available in multiple connection |
| Communication | I²C (max. 8 units) |
| Ambient illumination |
Sunlight: Max. 11,000 lx Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient temperature | -10 to 50 ℃, storage: -20 to 70 ℃ |
| Protection structure | IP40 |
| Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Mutual interference prevention | Max. 8 unit sets (automatically set regardless of response time) |
| Initializing | Initializing as factory mode |
| Energy saving | Normal / Energy saving 1 / Energy saving 2 |
| Material |
Case: Polybutylene terephthalate (PBT) Cover: Polycarbonate |
| Accessories |

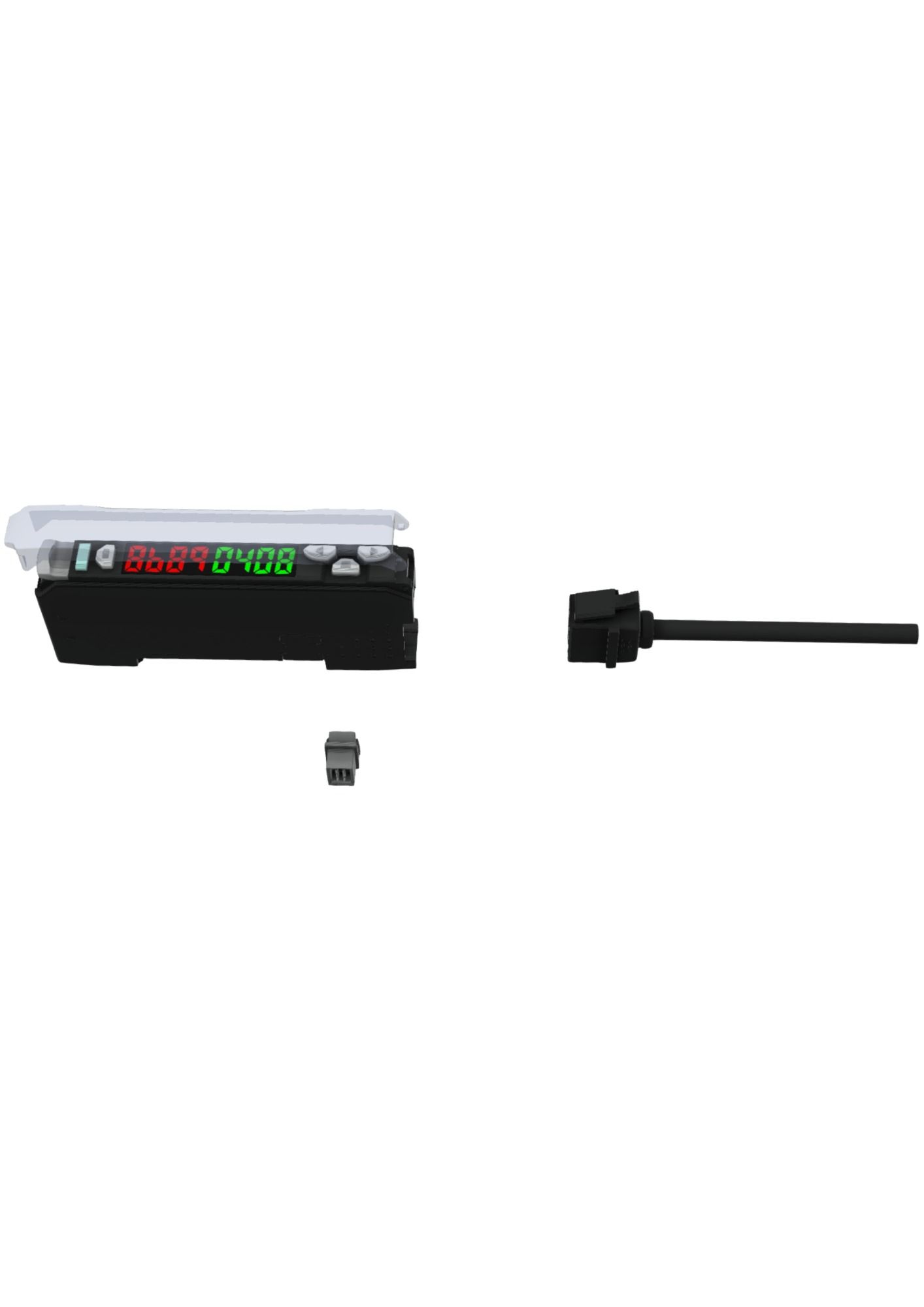

Connector type wire (Ø4 mm, 3-wire, 2 m, AWG22) Core diameter: 0.08 mm, Number of cores: 60 Insulator outer diameter: Ø1.25 mm Side connector |
