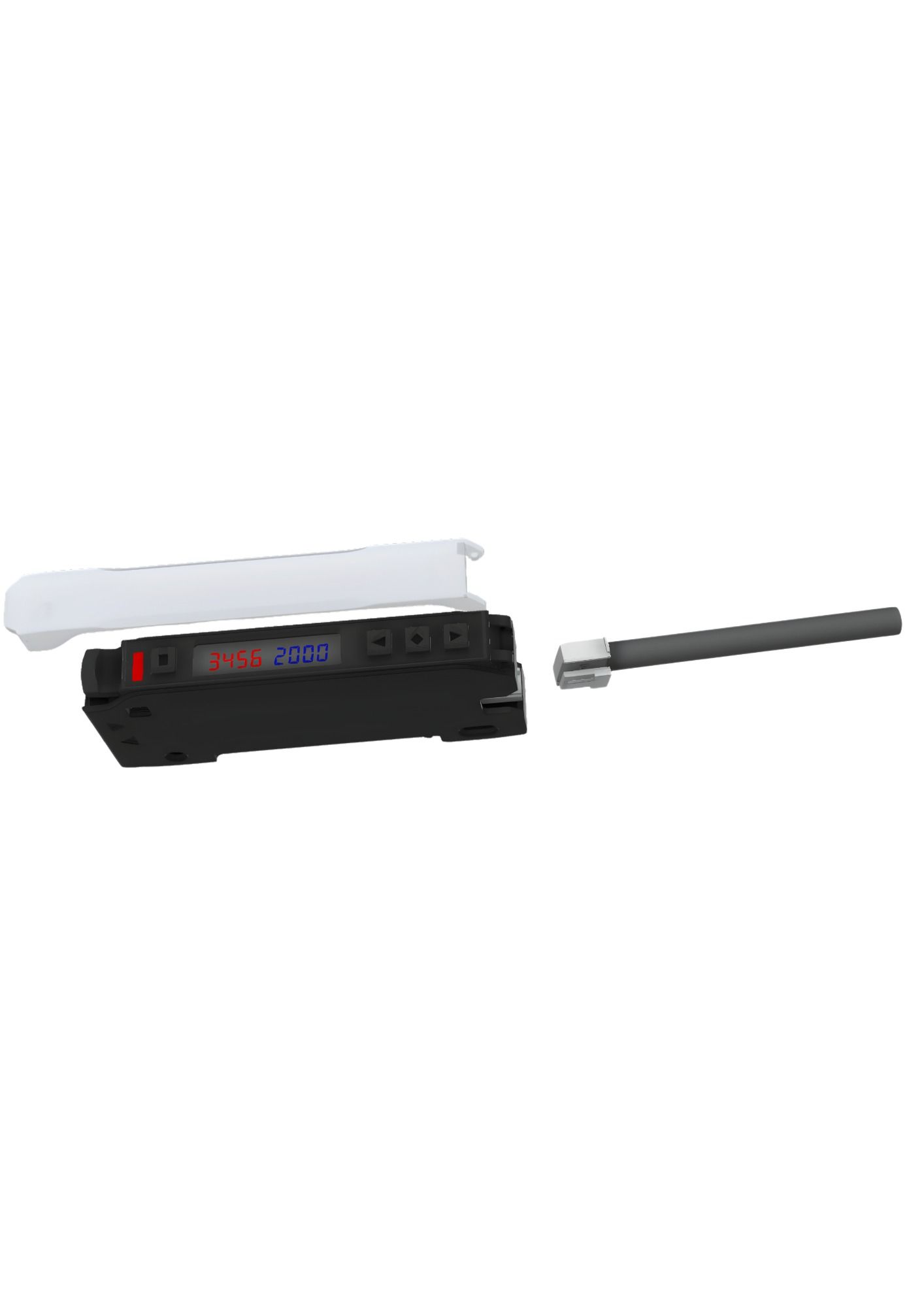

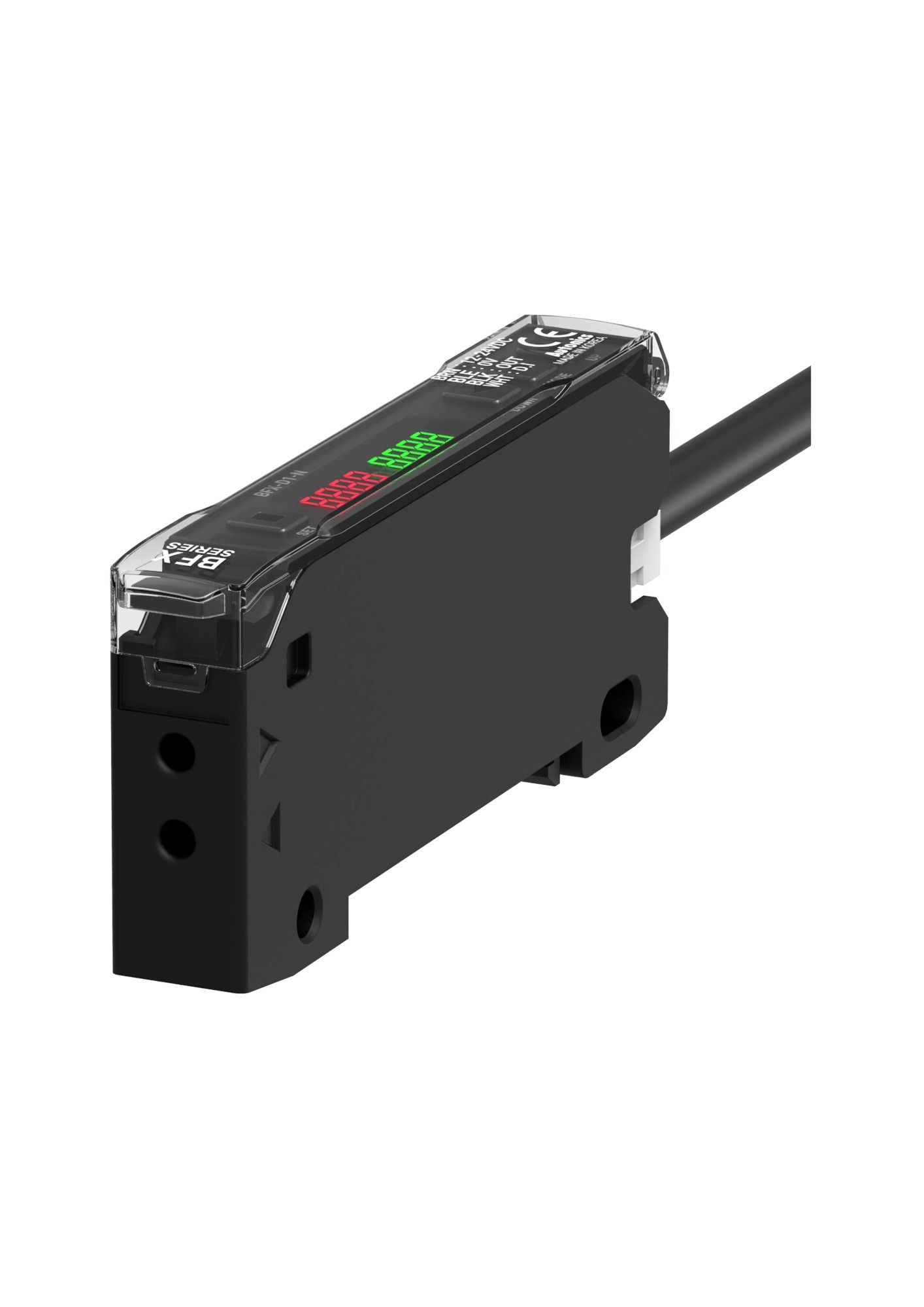

Autonics BFX-D1-P, Dual Display, 4-digit 7-segment, LCD Display Digital Fiber Optic Amplifier
In stock
SKU
BFX-D1-P
Special Price
₹2,301.20
Regular Price
₹4,184.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Type | Dual display |
| Display method | 4-digit 7-segment LCD |
| Light source | Red LED (660 nm) |
| Response time | 50 μs, 150 μs, 500 μs, 4 ms, 10 ms |
| Power voltage | 12–24 VDC |
| Current consumption | Max. 50 mA |
| Operation mode | Light ON / Dark ON (set by parameter) |
| Control output | PNP open collector |
| Timer function | OFF, OFF Delay, ON Delay, One-shot (1 to 5000 ms) |
| Sensitivity adjustment | Manual Teaching (auto-tuning, 1-point, 2-point, positioning) |
| Ambient illumination |
Sunlight: Max. 11,000 lx, Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient temperature | -10 to 50 ℃ |
| Protection structure | IP40 |
| Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material |
Case: Polyketon, Cover: Polycarbonate |
| Accessories |
Connector type wire (Ø4 mm, 4-wire, 2 m / AWG22, core diameter: 0.08 mm, number of cores: 60, insulator diameter: Ø1.25 mm) |
