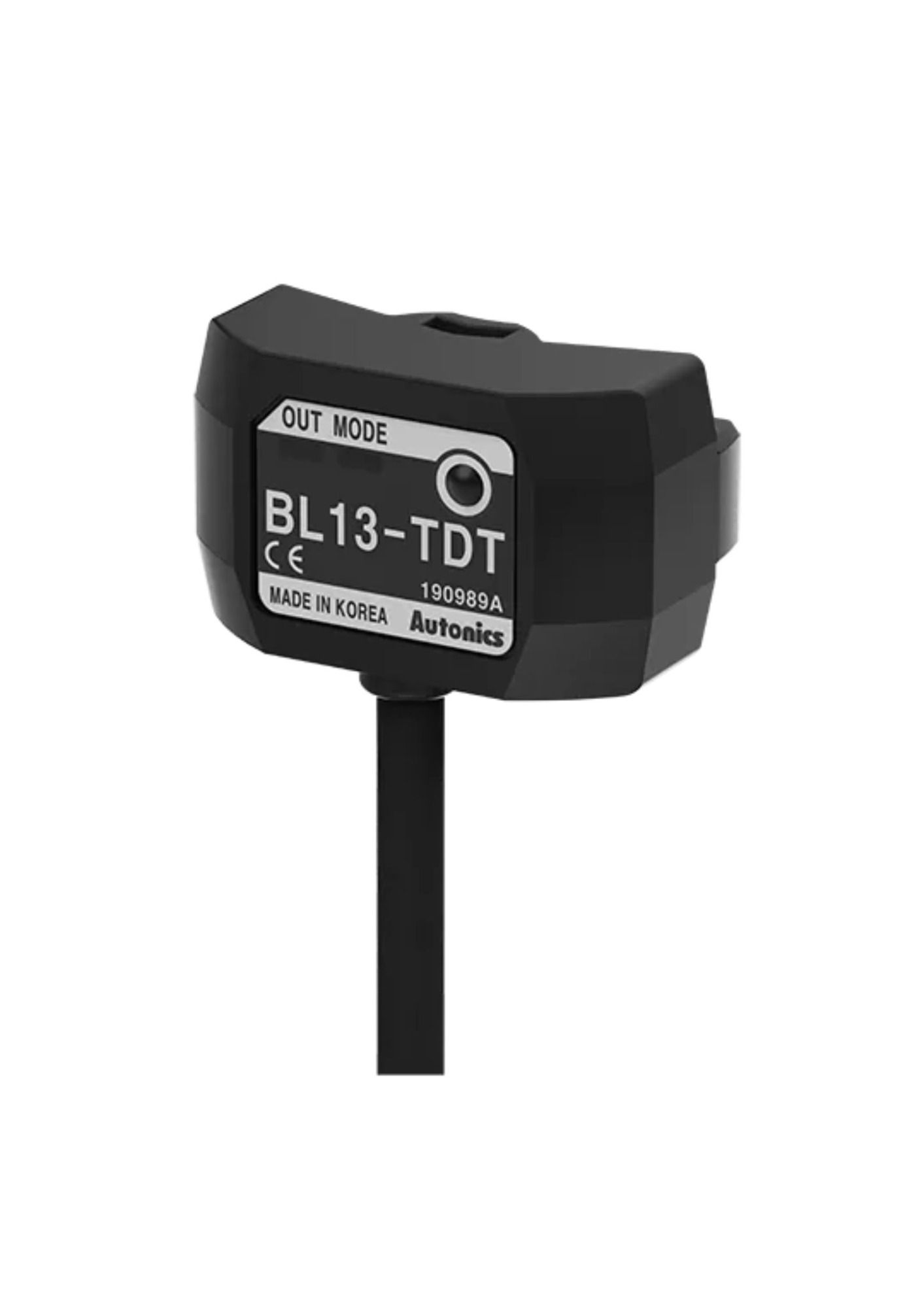

Autonics BL13-TDT, Through-beam type, Standard sensing target: Liquid in a pipe, Liquid Level Photoelectric Sensor
In stock
SKU
BL13-TDT
Special Price
₹5,518.15
Regular Price
₹10,033.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Through-beam type |
| Applicable pipe |
Using binding band: Ø6 to 13 mm Using protection bracket: Ø12.7 mm (1/2 inch) transparent pipe, 1 mm thickness (FEP (fluoroplastic) or equivalent transparency) |
| Standard sensing target | Liquid in a pipe |
| Light source | Infrared LED (950 nm) |
| Response time | Maximum 2 ms |
| Power voltage | 12–24 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Maximum 30 mA |
| Operation mode | Light ON / Dark ON (set by button) |
| Control output | NPN open collector |
| Connection type | Cable type (Ø2.5 mm, 1 m) |
| Ambient illumination | Sunlight / Incandescent lamp: Max. 3,000 lx each (received illumination) |
| Ambient temperature | 10 to 55 ℃, storage: -25 to 65 ℃ |
| Protection structure | IP64 |
| Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Polycarbonate |
| Accessories |
Binding band: 2 Anti-slip tube: 2 |
No specifications available for this product.
