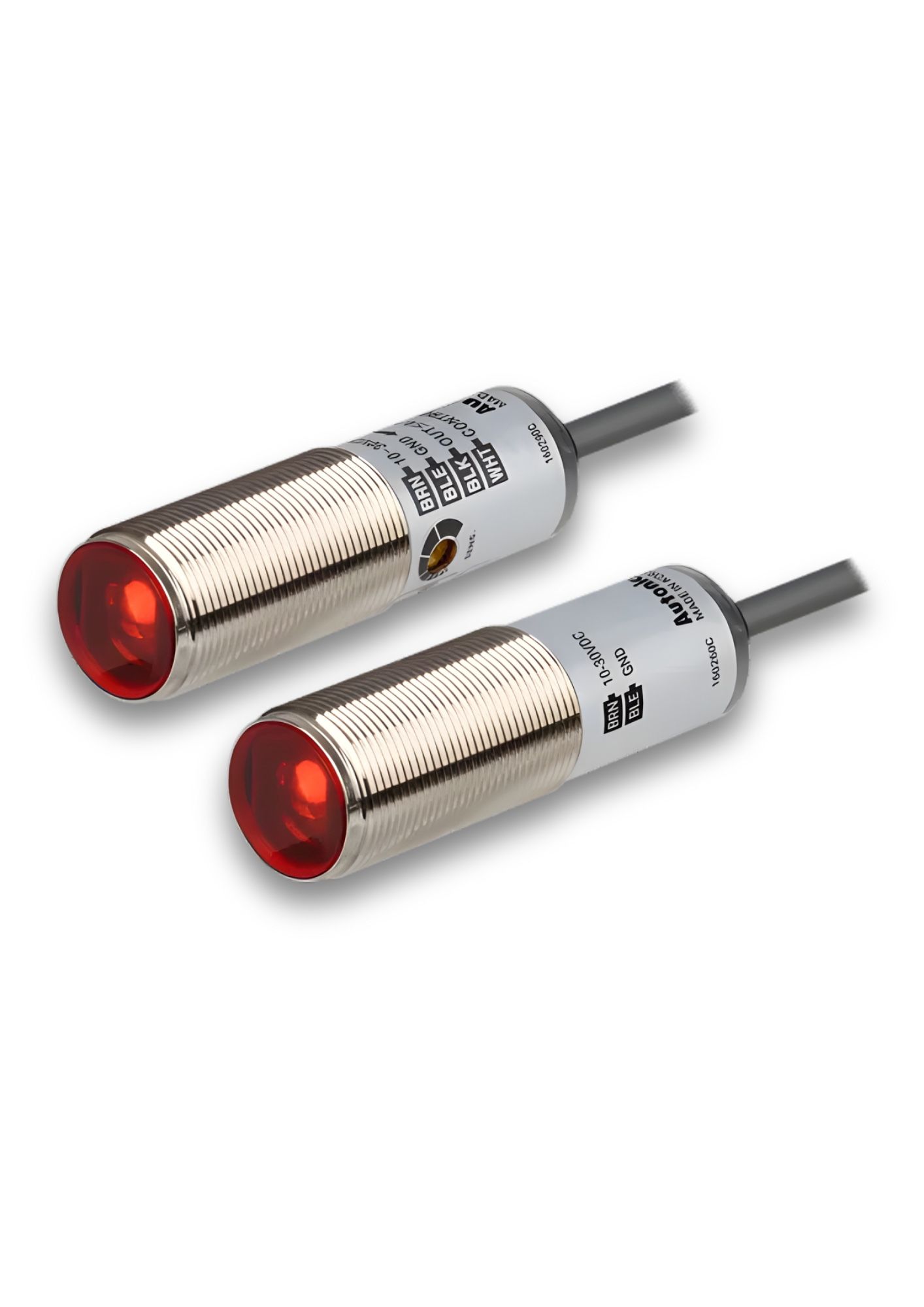

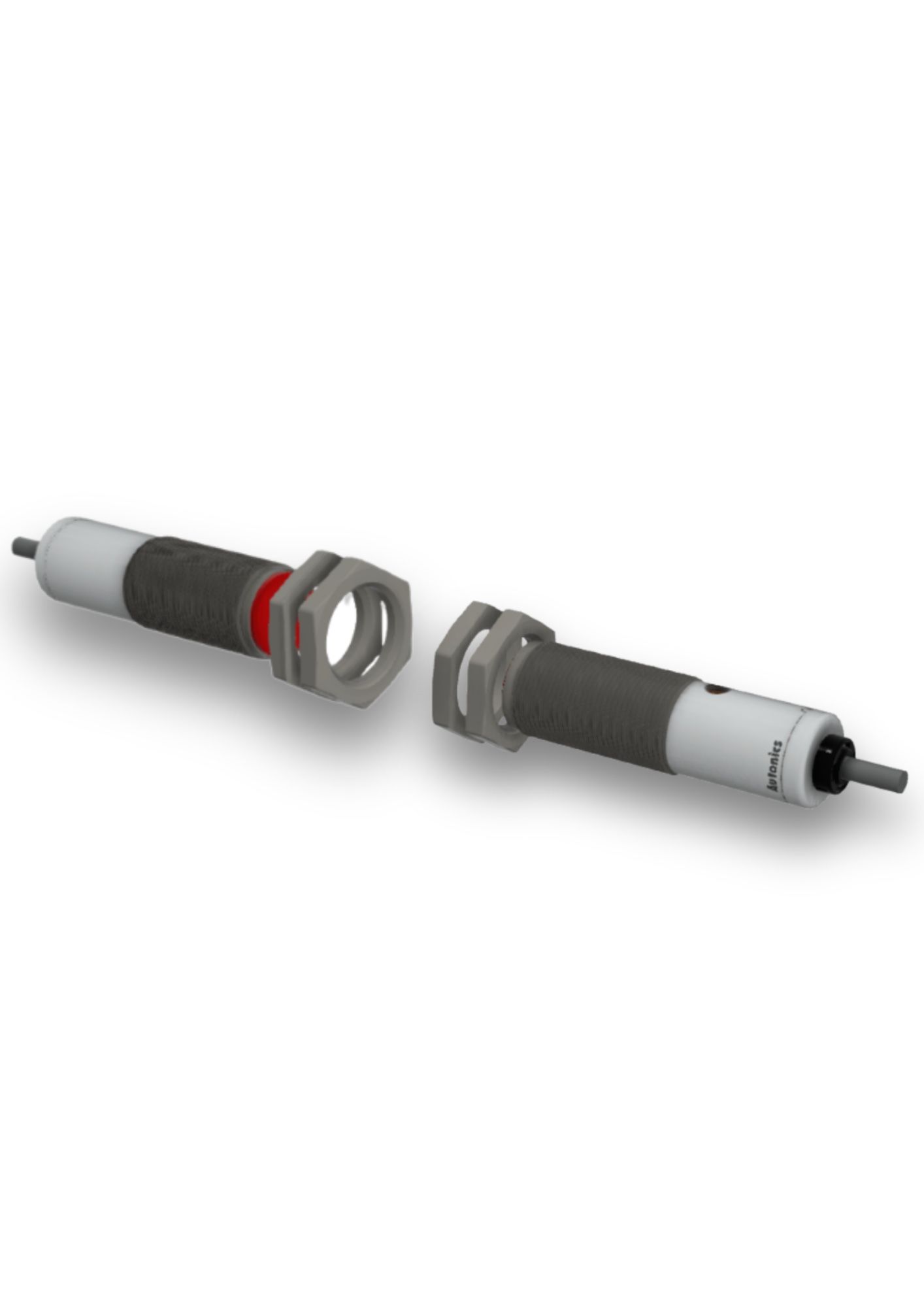

Autonics BRQM20M-TDTA-P, 20m Sensing, Sensing target Opaque material of min. Ø7mm, Through-beam type, Cylindrical Photoelectric Sensor
In stock
SKU
BRQM20M-TDTA-P
Special Price
₹3,262.05
Regular Price
₹5,931.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Through-beam type |
| Sensing distance | 20 m |
| Sensing target | Opaque material of min. Ø7 mm |
| Light source | Red LED (660 nm) |
| Response time | Max. 1 ms |
| Power voltage | 10–30 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Emitter / Receiver: Max. 20 mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON / Dark ON (set by control wire) |
| Control output | PNP open collector |
| Connection type | Cable type (Ø4, 2 m) |
| Ambient illumination |
Sunlight: Max. 11,000 lx Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient temperature |
Operating: −25 to 60 ℃ Storage: −30 to 70 ℃ |
| Protection structure | IP67 (IEC standard) |
| Ambient humidity | 35 to 85% RH (operating & storage) |
| Material |
Case: Brass, Ni-plate Lens / Lens cover: Polymethyl methacrylate (acrylic) |
