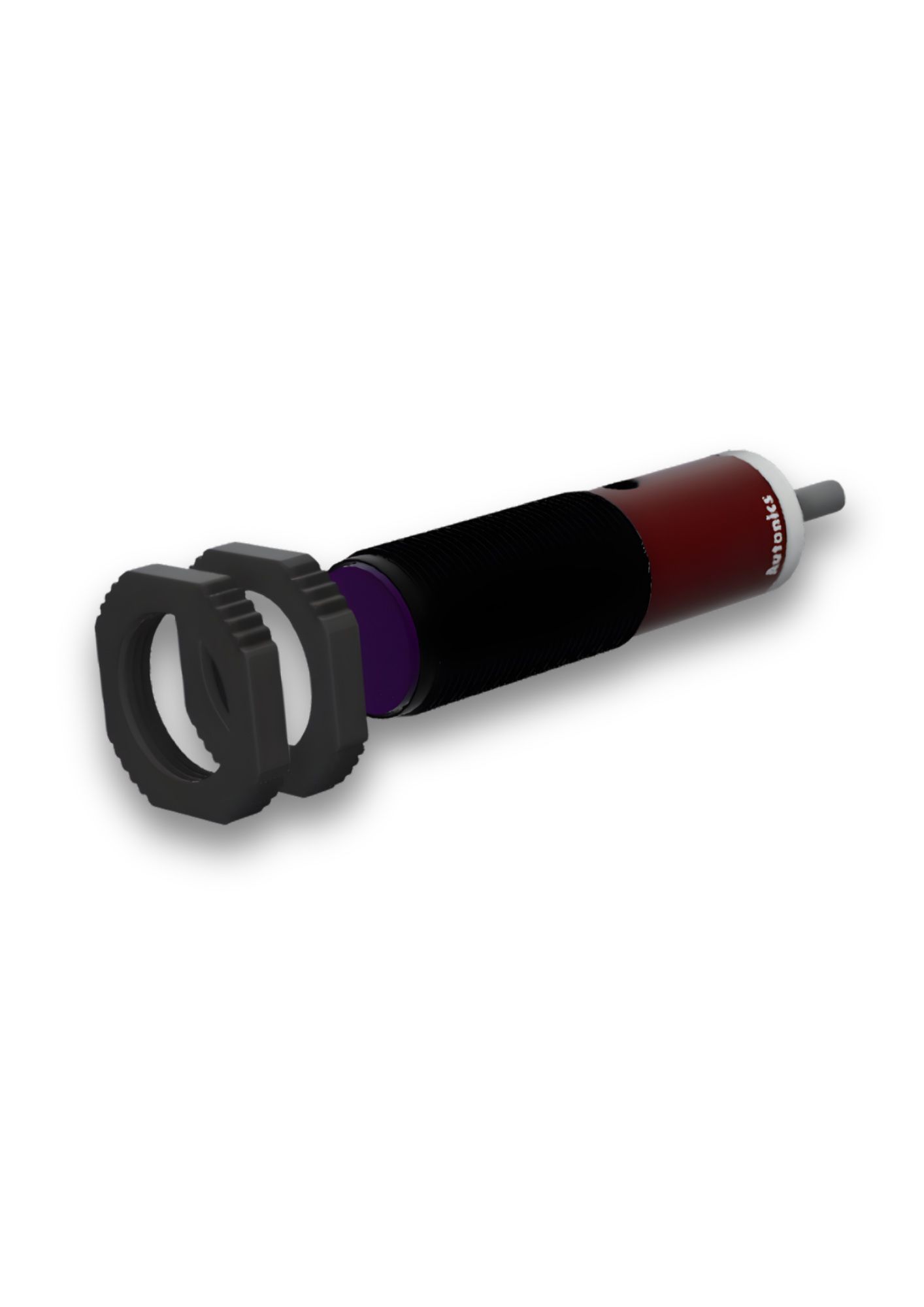

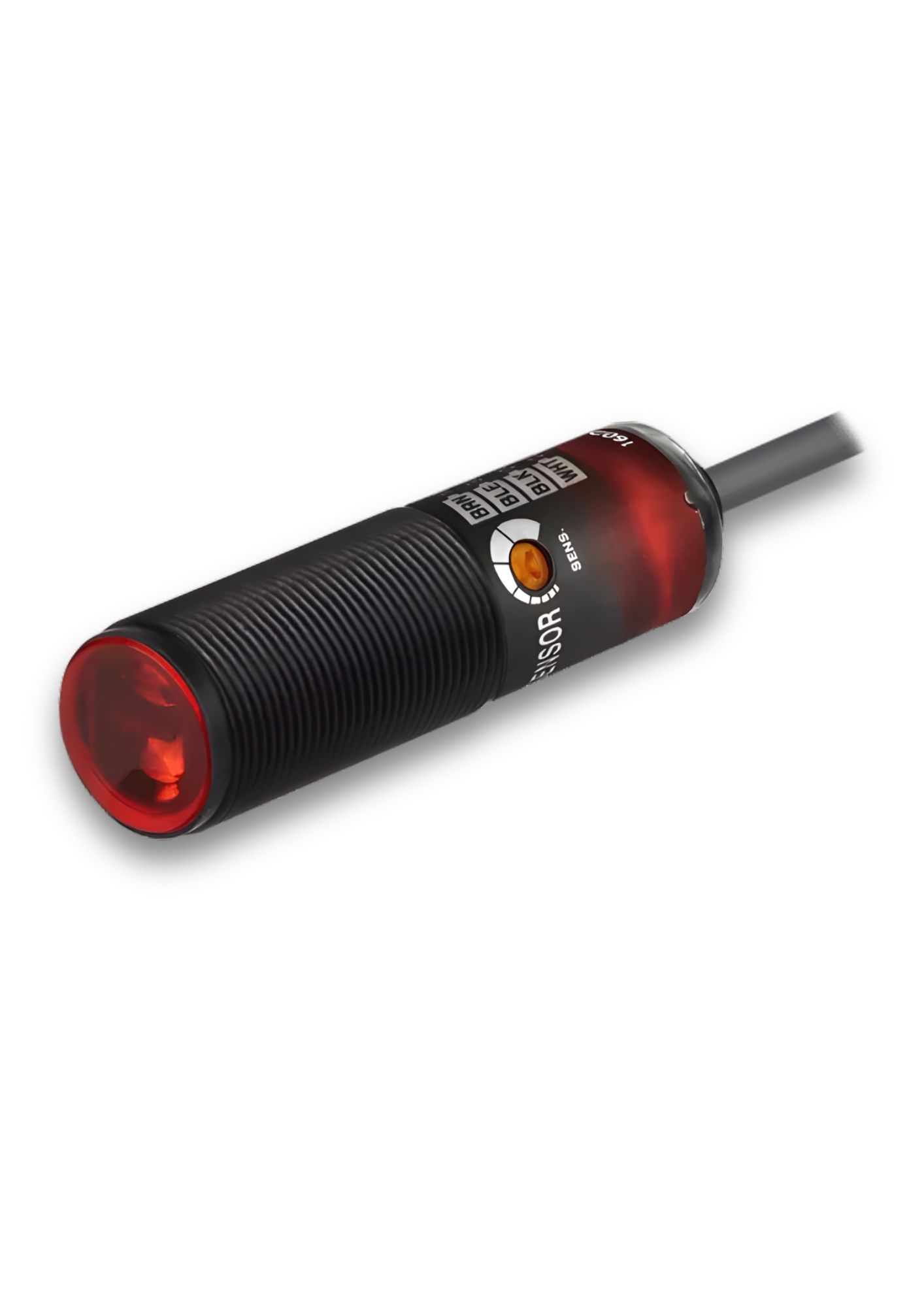

Autonics BRQP100-DDTA-P, 100mm Sensing, Sensing target Opaque & Translucent material, Diffuse reflective type, Cylindrical Photoelectric Sensor
In stock
SKU
BRQP100-DDTA-P
Special Price
₹1,915.10
Regular Price
₹3,482.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing Type | Diffuse reflective type |
| Sensing Distance | 100 mm |
| Sensing Target | Opaque, Translucent material |
| Light Source | Infrared LED (850 nm) |
| Response Time | Max. 1 ms |
| Power Voltage | 10–30 VDC ±10% (Ripple P-P: max. 10%) |
| Current Consumption | Max. 30 mA |
| Sensitivity Adjustment | Sensitivity adjuster |
| Operation Mode | Light ON / Dark ON (set by control wire) |
| Control Output | PNP open collector |
| Connection Type | Cable type (Ø4 mm, 2 m) |
| Ambient Illumination |
Sunlight: Max. 11,000 lx Incandescent lamp: Max. 3,000 lx |
| Ambient Temperature |
Operating: −25 to 60 ℃ Storage: −30 to 70 ℃ |
| Ambient Humidity |
Operating: 35 to 85% RH Storage: 35 to 85% RH |
| Hysteresis (Distance) | Max. 20% at rated sensing distance |
| Material |
Case: Polycarbonate Lens / Lens Cover: Polymethyl Methacrylate (Acrylic) |
