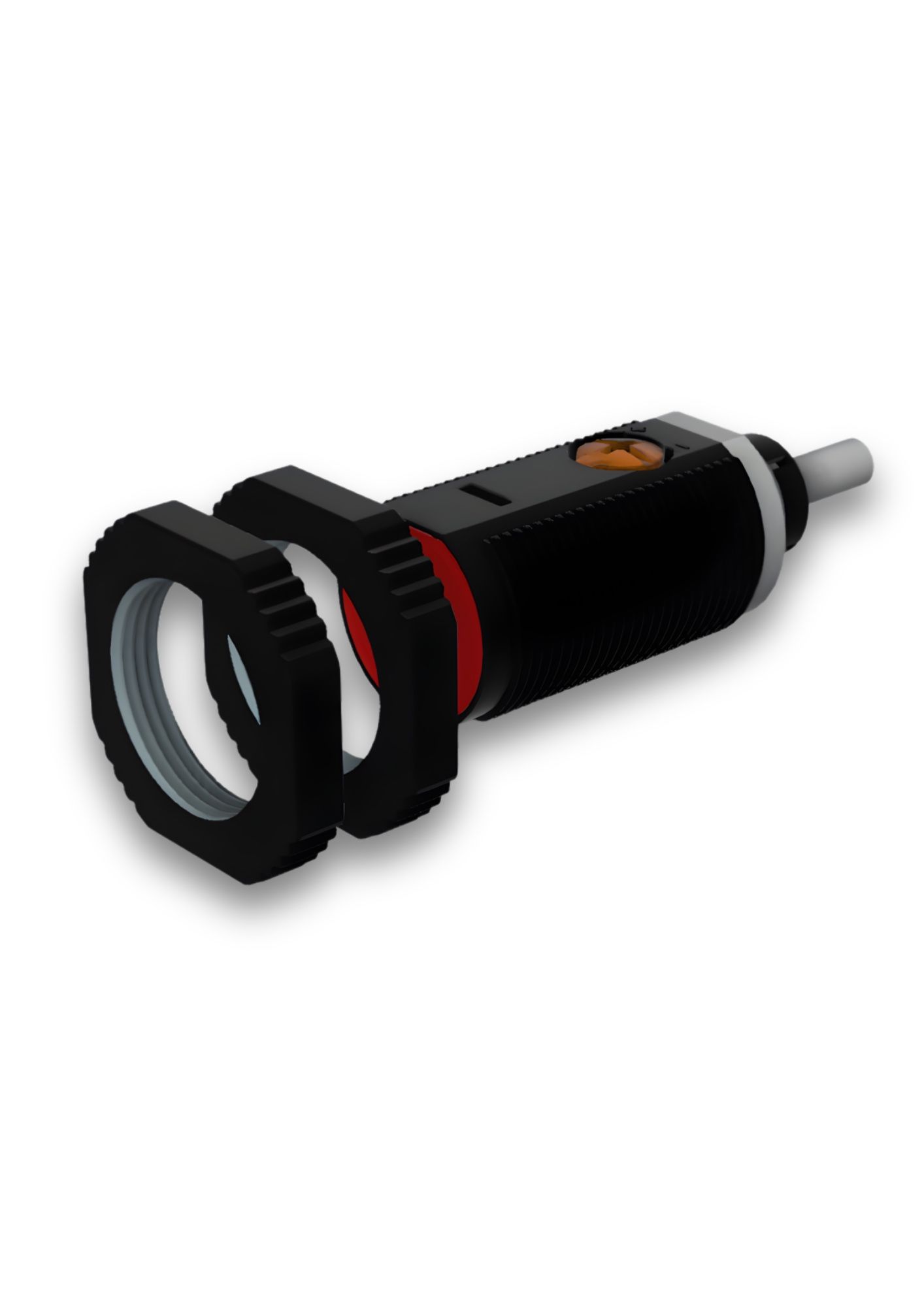

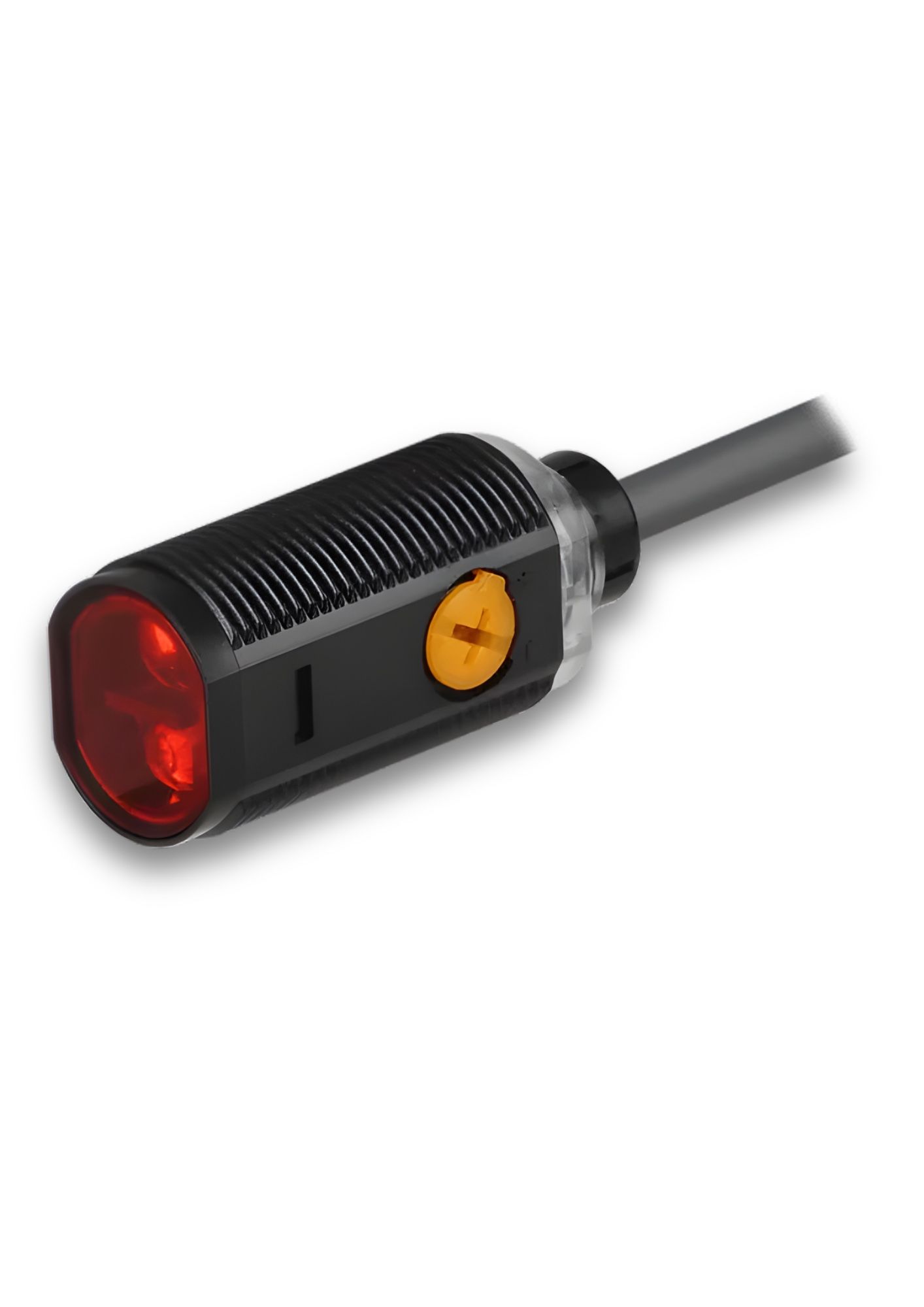

Autonics BRQP400-DDTB-P, 400mm Sensing, Sensing target Opaque & Translucent material, Diffuse reflective type, Cylindrical Photoelectric Sensor
In stock
SKU
BRQP400-DDTB-P
Special Price
₹1,740.75
Regular Price
₹3,165.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 400 mm |
| Sensing target | Opaque, Translucent material |
| Light source | Red LED (660 nm) |
| Response time | Max. 1 ms |
| Power voltage | 10–30 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Max. 30 mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON / Dark ON (set by control wire) |
| Control output | PNP open collector |
| Connection type | Cable type (Ø4, 2 m) |
| Ambient illumination |
Sunlight: Max. 11,000 lx Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient temperature | -25 to 60℃, storage: -30 to 70℃ |
| Protection structure | IP67 (IEC standard) |
| Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis (distance) | Max. 20% at rated sensing distance |
| Material |
Case: Polycarbonate Lens, Lens cover: Polymethyl Methacrylate (Acrylic) |
