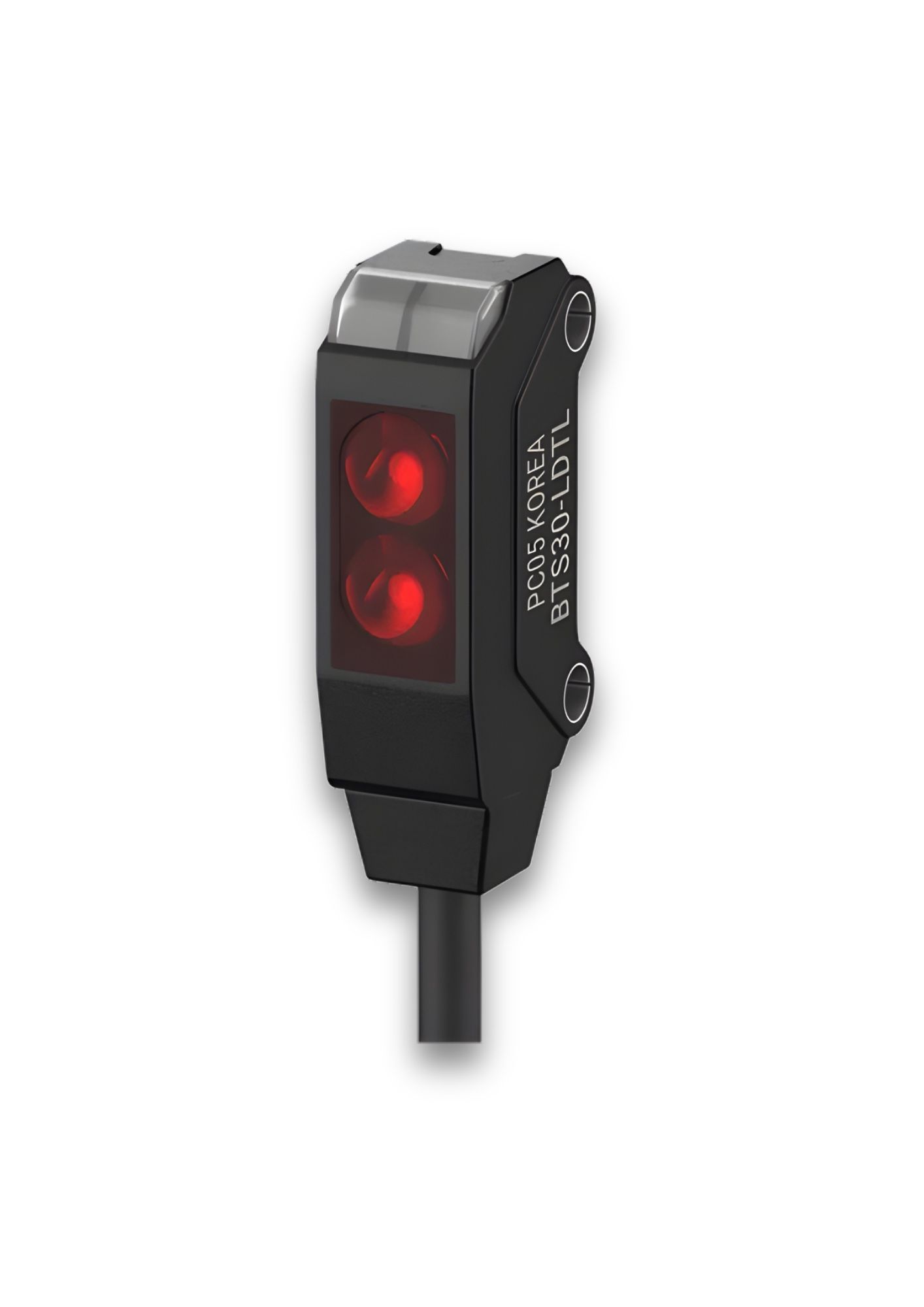

Autonics BTS30-LDTL, 5~30mm Sensing, Sensing target Opaque & Translucent material(min. sensing target: Ø0.15mm), Convergent reflective type, Ultra-Compact, Slim Type Photoelectric Sensor
In stock
SKU
BTS30-LDTL
Special Price
₹3,429.25
Regular Price
₹6,235.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Convergent reflective type |
| Sensing distance | 5 to 30 mm |
| Sensing target | Opaque, Translucent material (min. sensing target: Ø0.15 mm) |
| Light source | Red LED (650 nm) |
| Response time | Max. 1 ms |
| Power voltage | 12–24 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Max. 20 mA |
| Operation mode | Light ON |
| Control output | NPN open collector |
| Connection type | Cable type (Ø2.5, 2 m) |
| Ambient illumination |
Sunlight: Max. 10,000 lx Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient temperature | -20 to 55℃, storage: -30 to 70℃ |
| Protection structure | IP67 |
| Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis (distance) | Max. 15% of maximum sensing distance |
| Material |
Case: Polybutylene terephthalate Sensing part: Polymethyl methacrylate Bracket: Stainless steel 304 Bolt: Carbon steel wire for cold heading (SWCH10A) |
