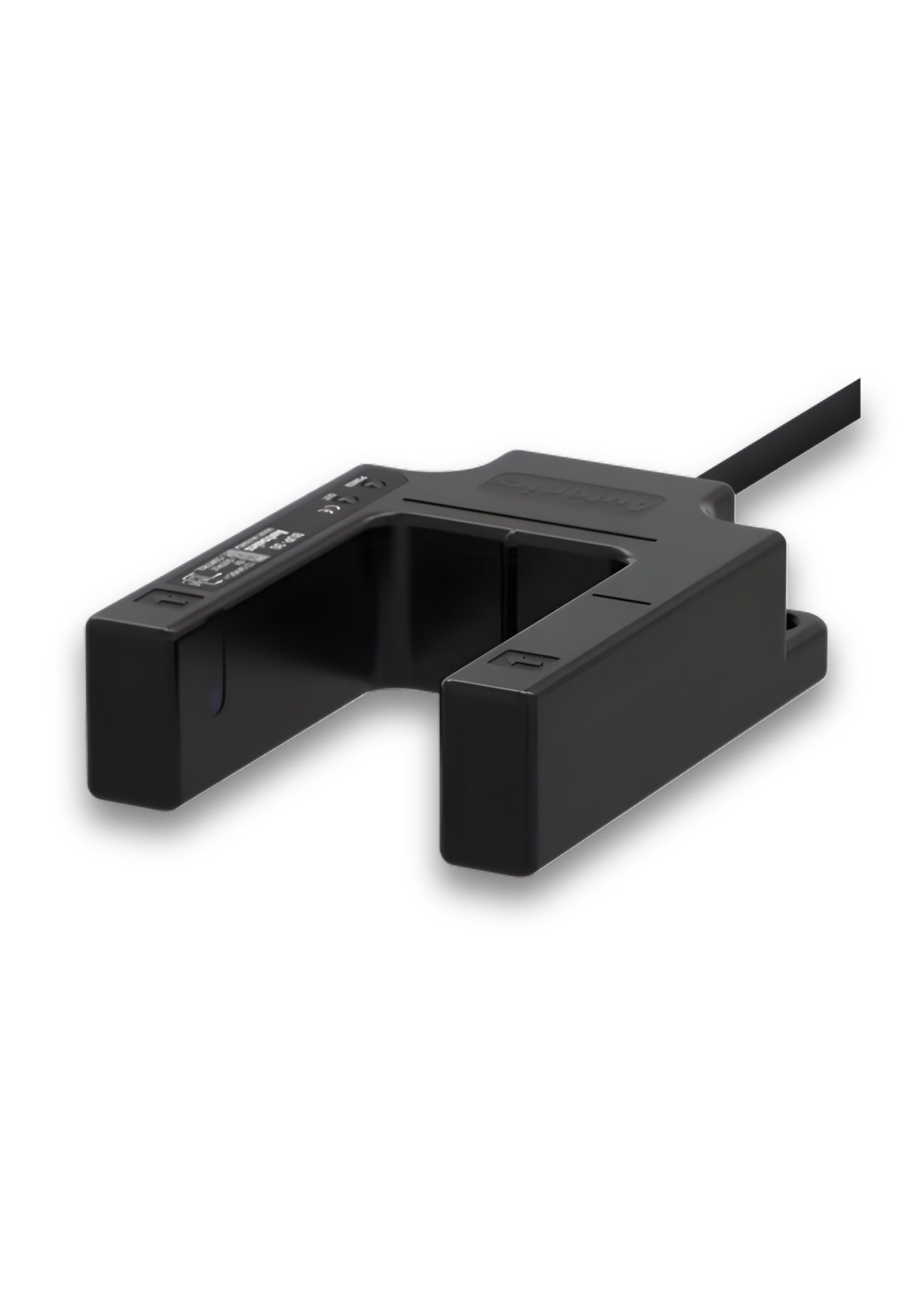

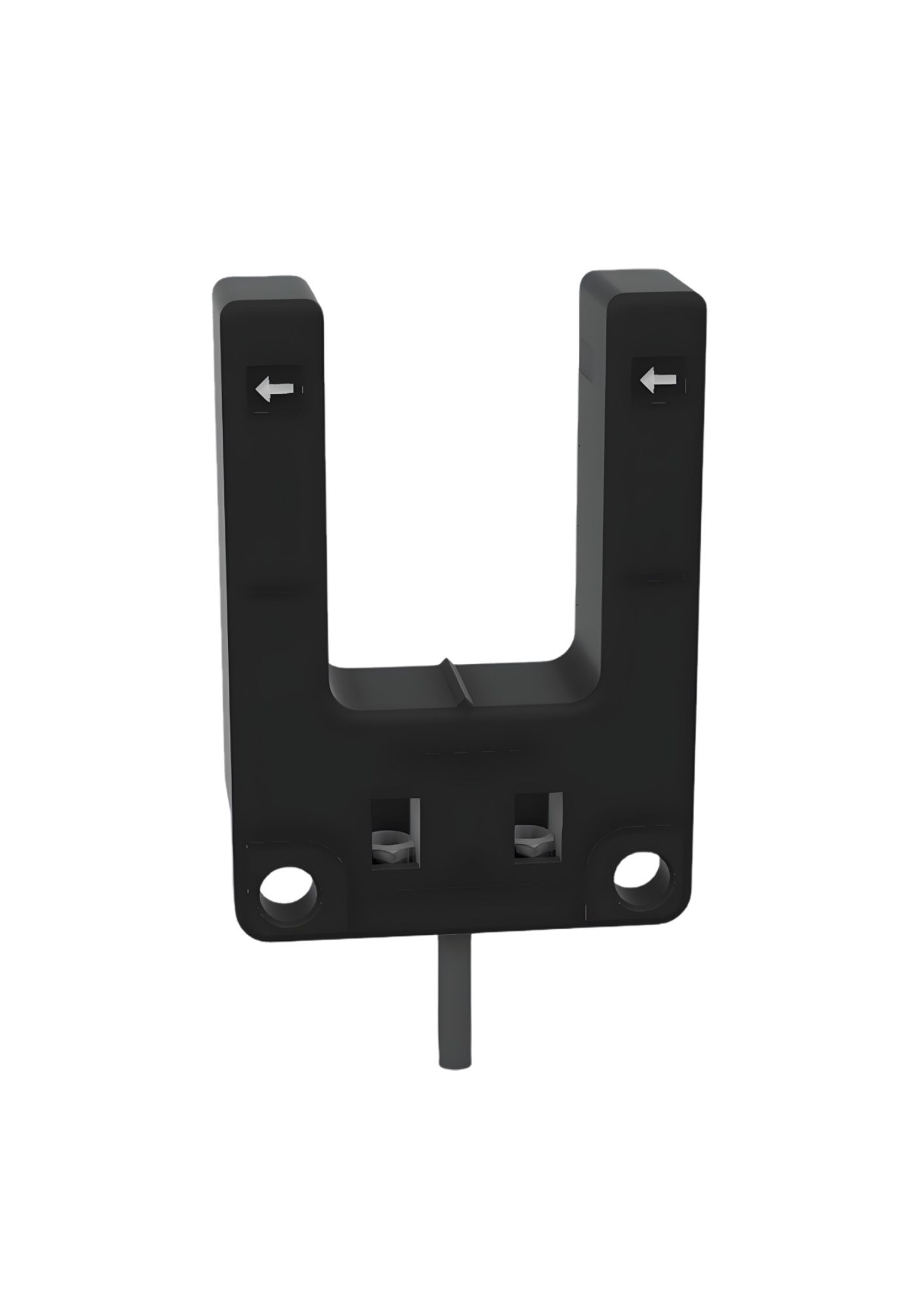

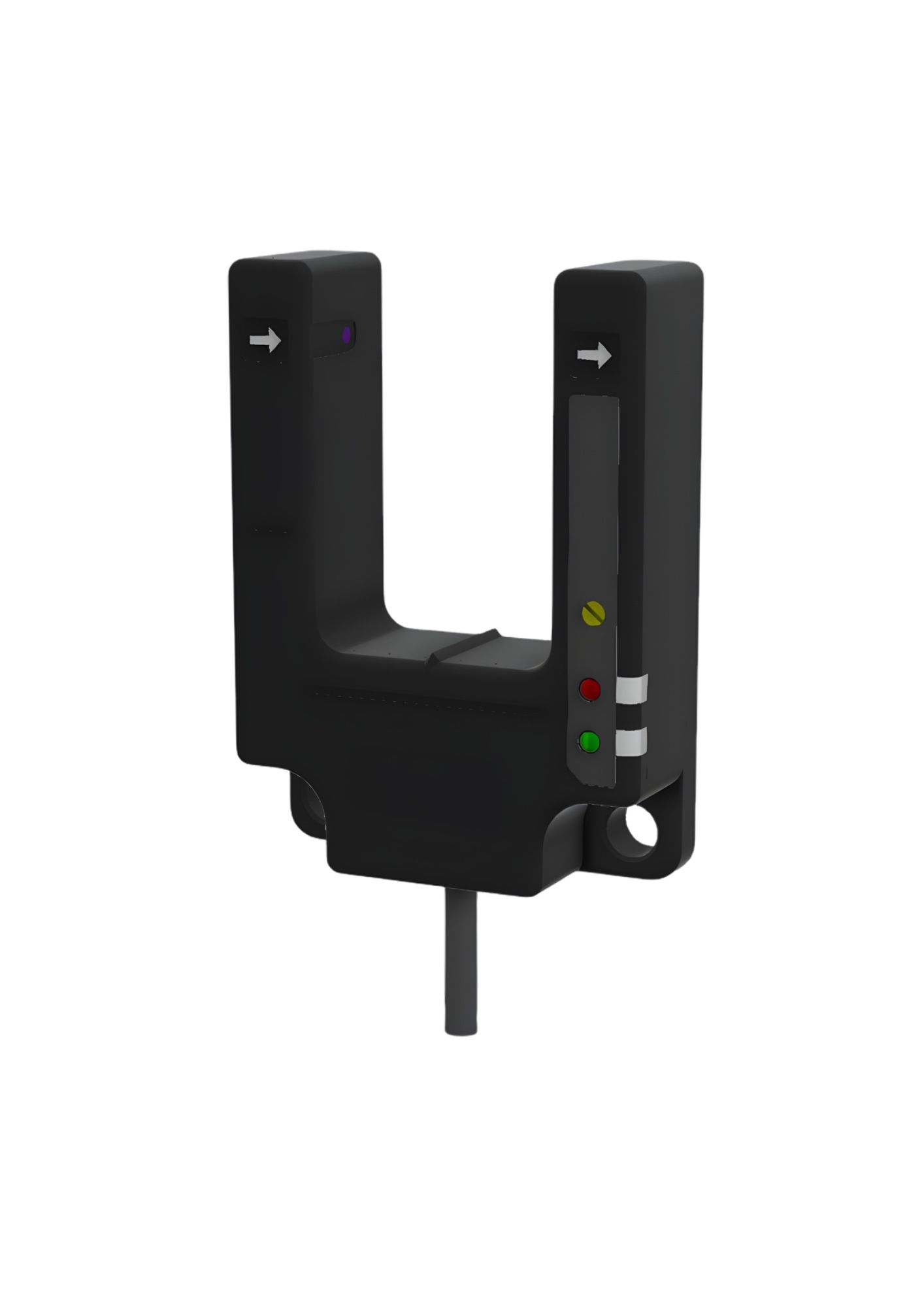

Autonics BUP-30S-P, 30mm Sensing, Sensing target Opaque material of min. √ò1.5mm, Through-beam type, U-Shaped Photoelectric Sensor
In stock
SKU
BUP-30S-P
Special Price
₹2,660.90
Regular Price
₹4,838.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Through-beam type |
| Sensing channel | 1-channel |
| Sensing distance | 30 mm |
| Sensing target | Opaque material of minimum √ò1.5 mm |
| Light source | Infrared LED (940 nm) |
| Response time | Max. 1 ms |
| Power voltage | 12–24 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Max. 30 mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON / Dark ON (set by control wire) |
| Control output | PNP open collector |
| Connection type | Cable type (√ò4, 2 m) |
| Ambient illumination | Sunlight: Max. 11,000 lx, Incandescent lamp: Max. 3,000 lx |
| Ambient temperature | ‚àí10 to 60‚ÑÉ, Storage: ‚àí25 to 70‚ÑÉ |
| Protection structure | IP66 |
| Ambient humidity | 35 to 85% RH (storage: 35 to 85% RH) |
| Material | Case: ABS, Cap: Polycarbonate |
| Accessories | Adjuster driver |
