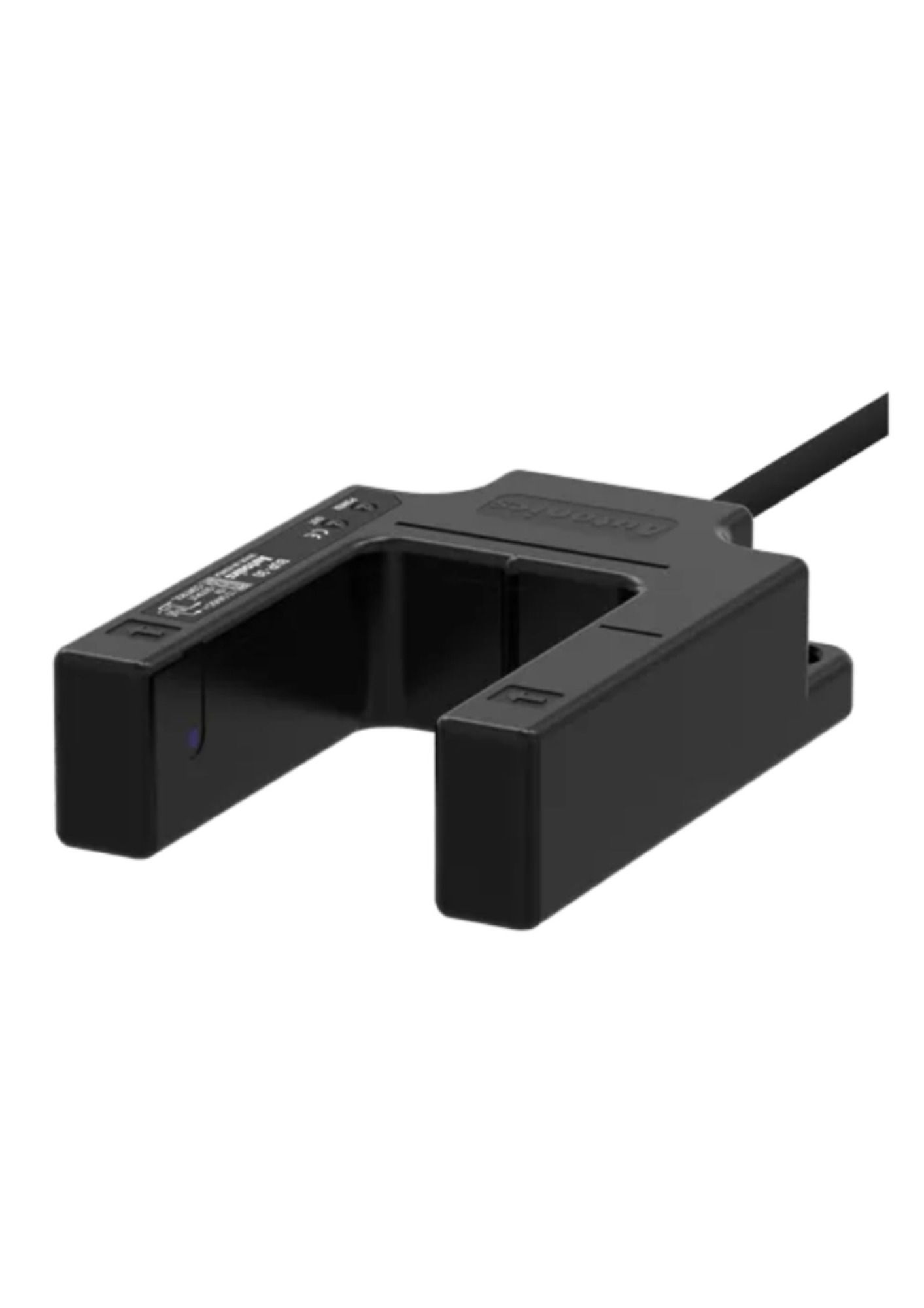

Autonics BUP-50S, 50mm Sensing, Through-beam type, Sensing target Opaque material of min. Ø1.5mm, U-Shaped Photoelectric Sensor
In stock
SKU
BUP-50S
Special Price
₹2,425.50
Regular Price
₹4,410.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Through-beam type |
| Sensing channel | 1-channel |
| Sensing distance | 50 mm |
| Sensing target | Opaque material of minimum Ø1.5 mm |
| Light source | Infrared LED (940 nm) |
| Response time | Maximum 1 ms |
| Power voltage | 12–24 VDC ±10% (ripple P-P: max. 10%) |
| Current consumption | Maximum 30 mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON / Dark ON (set by control wire) |
| Control output | NPN open collector |
| Connection type | Cable type (Ø4 mm, 2 m) |
| Ambient illumination |
Sunlight: Max. 11,000 lx Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient temperature | -25 to 65 ℃, storage: -25 to 70 ℃ |
| Protection structure | IP66 |
| Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material |
Case: Acrylonitrile Butadiene Styrene (ABS) Cap: Polycarbonate |
| Accessories | Adjuster driver |
