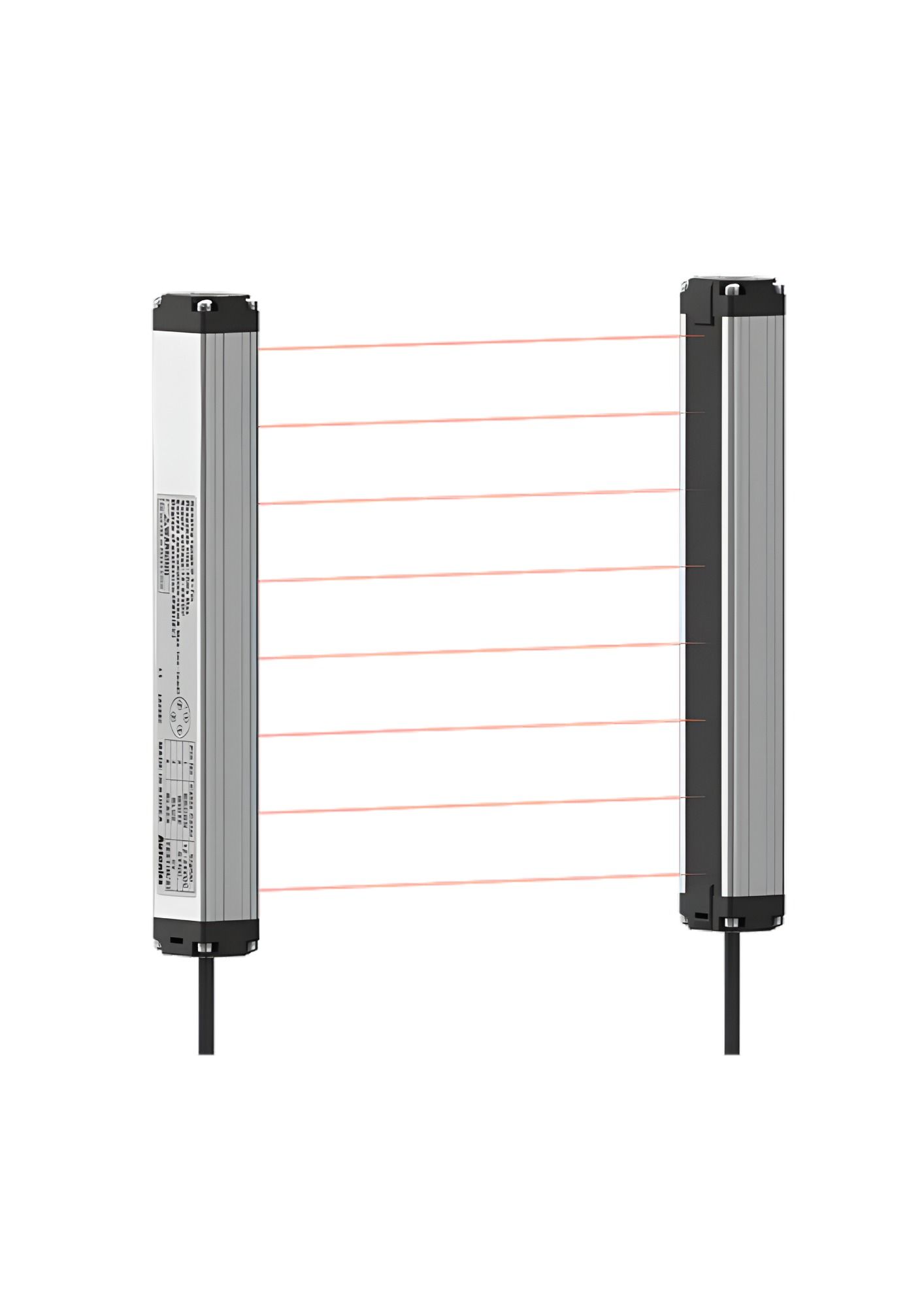

Autonics BW20-12P, Through-beam type(direct beam), 0.1 to 7m Sensing, General Purpose Area Sensor
In stock
SKU
BW20-12P
Special Price
₹17,337.65
Regular Price
₹31,523.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Through-beam type (direct beam) |
| Sensing distance | 0.1 to 7 m |
| Light source | Infrared LED (850 nm, modulated) |
| Optical axis pitch | 20 mm |
| Number of optical axes | 12 |
| Sensing height / Total length | 220 / 240 mm |
| Power voltage | 12–24 VDC ±10% (ripple P-P: max. 10%) |
| Control output | PNP open collector |
| Operation mode | Light ON |
| Ambient illumination | Ambient light: Max. 100,000 lx (receiver illumination) |
| Ambient temperature | -10 to 55℃, storage: -20 to 60℃ |
| Connection type | Cable connector type |
| Protection structure | IP65 (IEC standard) |
| Ambient humidity | 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) |
| Minimum sensing target | Opaque material of min. Ø30 mm |
| Response time | Max. 10 ms |
| Material |
Case: Aluminum Front cover, sensing part: Acrylic |
| Cable specification | Ø5 mm, 4-wire, 300 mm, M12 connector |
| Accessories | Bracket A: 4, Bracket B: 4, Fixing bolt: 8 |
