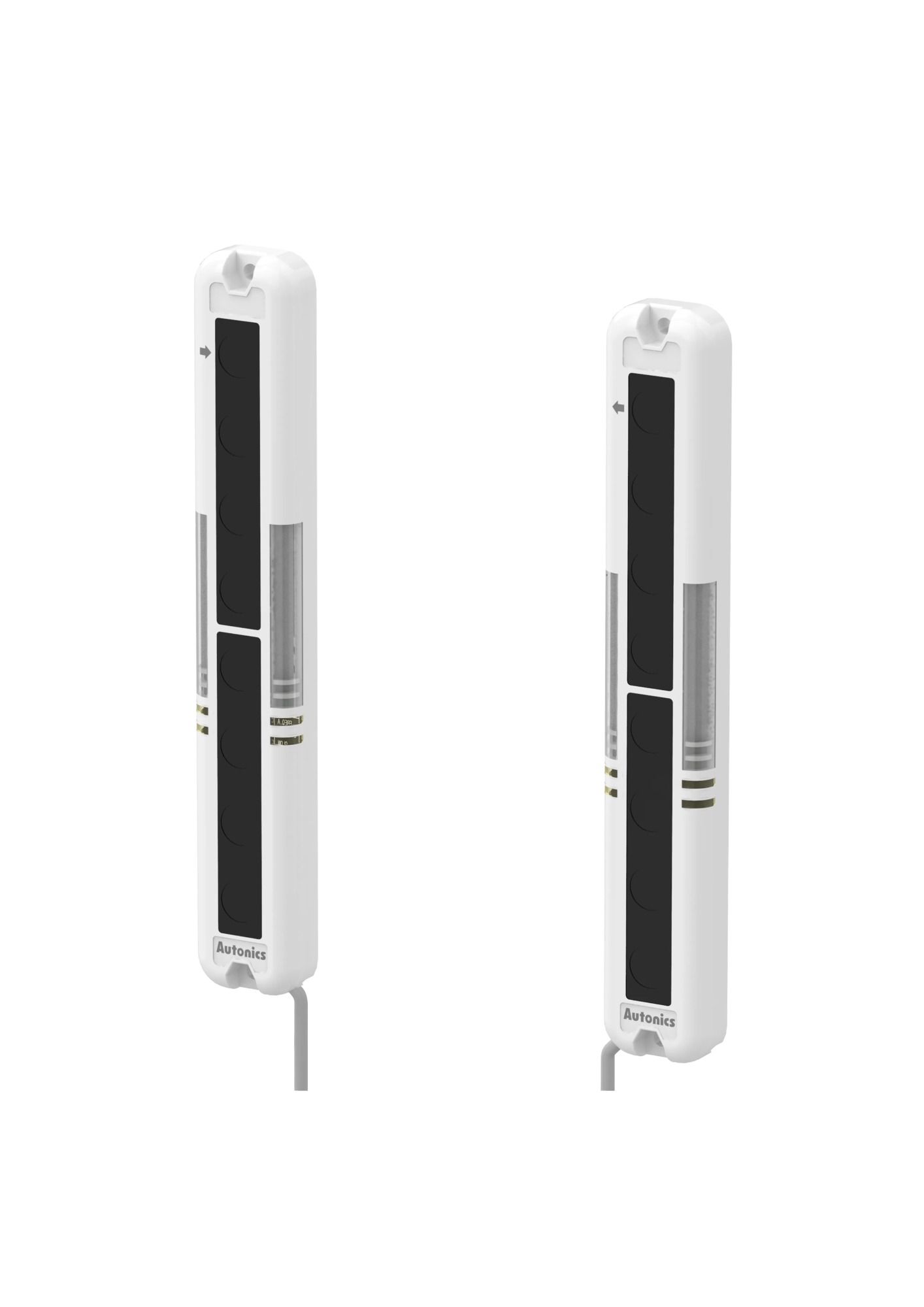

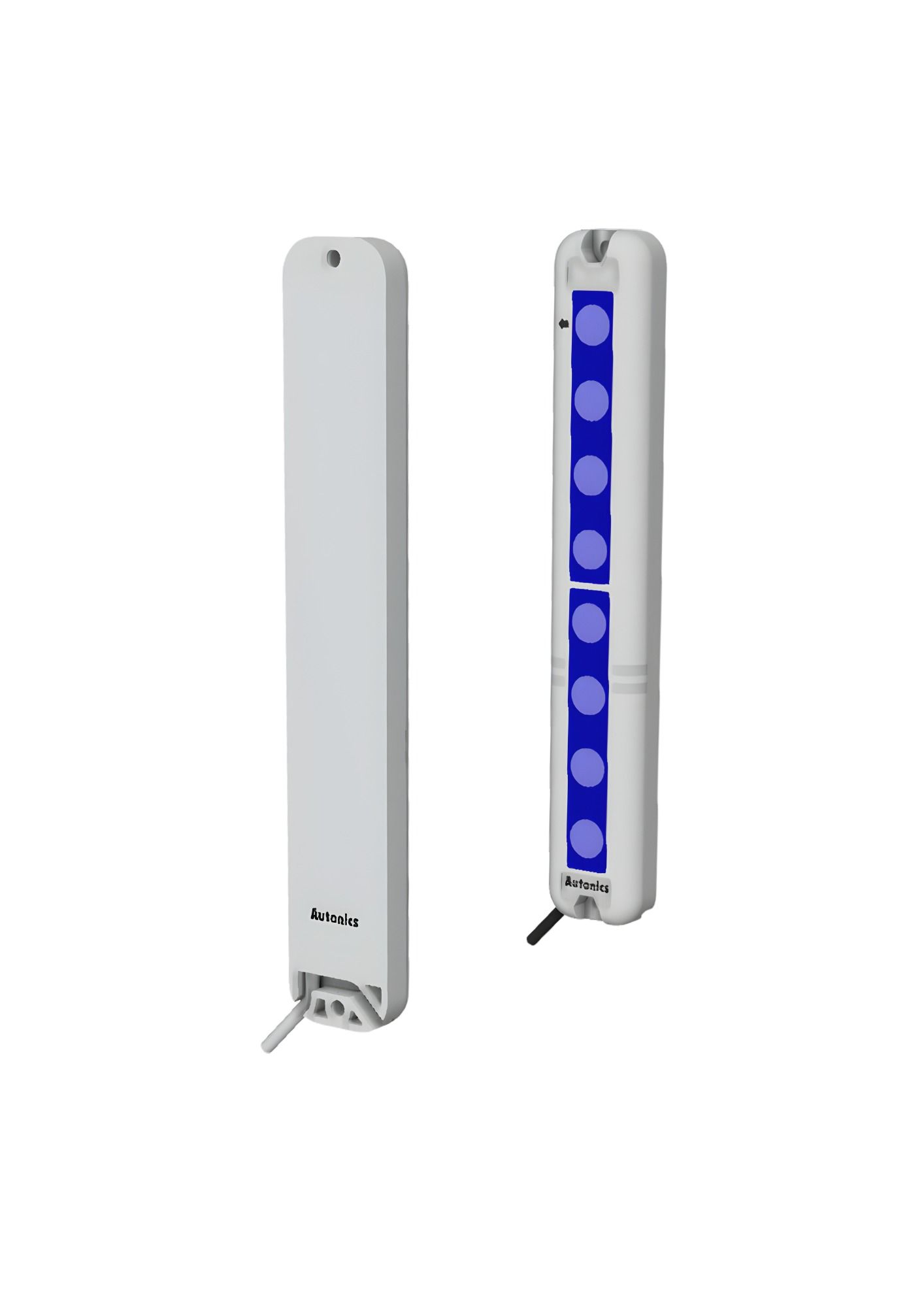

Autonics BWP20-20, 0.1 to 5m Sensing, Through-beam type(direct beam), NPN open collector, Slim Plastic Body Area Sensor
In stock
SKU
BWP20-20
Special Price
₹17,687.45
Regular Price
₹32,159.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Through-beam type (direct beam) |
| Sensing distance | 0.1 – 5 m |
| Light source | Infrared LED (850 nm, modulated) |
| Optical axis pitch | 20 mm |
| Number of optical axes | 20 |
| Sensing height / Total length | 380 / 430 mm |
| Power voltage | 12 – 24 VDC ±10% (ripple P-P max. 10%) |
| Control output | NPN open collector |
| Operation mode | Light ON / Dark ON (set by switch) |
| Ambient illumination | Sunlight: Max. 10,000 lx (receiver illumination) |
| Ambient temperature | -10 to 55℃, Storage: -20 to 60℃ |
| Connection type | Cable type (Ø3.5, 3 m) |
| Protection structure | IP40 |
| Ambient humidity | 35 – 85% RH, Storage: 35 – 85% RH |
| Min. sensing target | Opaque material, min. Ø30 mm |
| Response time | Max. 6 ms (Frequency B selection: max. 7 ms) |
| Material |
Case: Polycarbonate / Acrylonitrile butadiene styrene Sensing part: Polymethyl methacrylate |
| Cable specification |
Ø3.5 mm, 4-wire, 3 m (emitter: Ø3.5 mm, 4-wire, 3 m) AWG 24, core Ø0.08 mm, 40 cores, insulator Ø1 mm |
