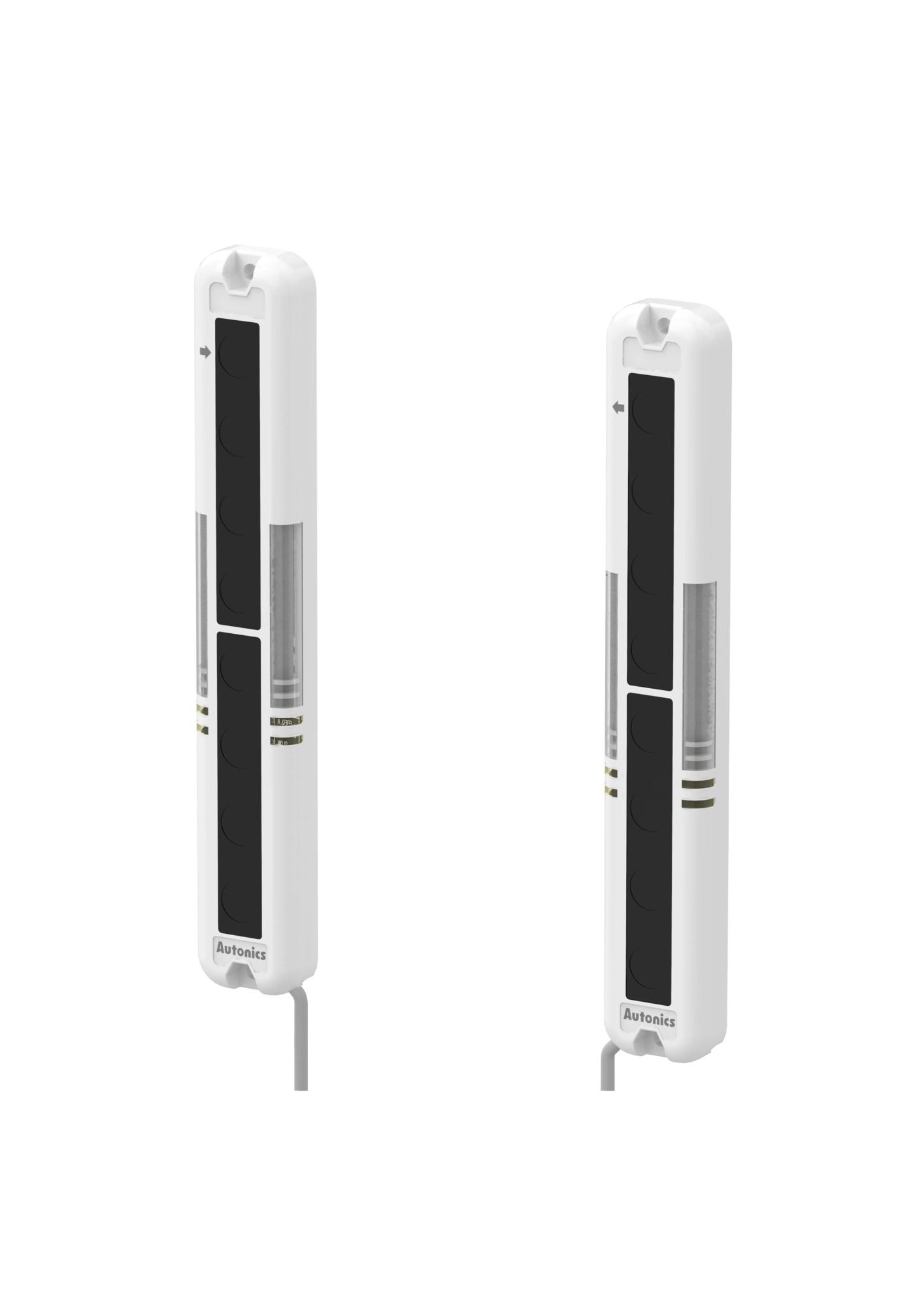

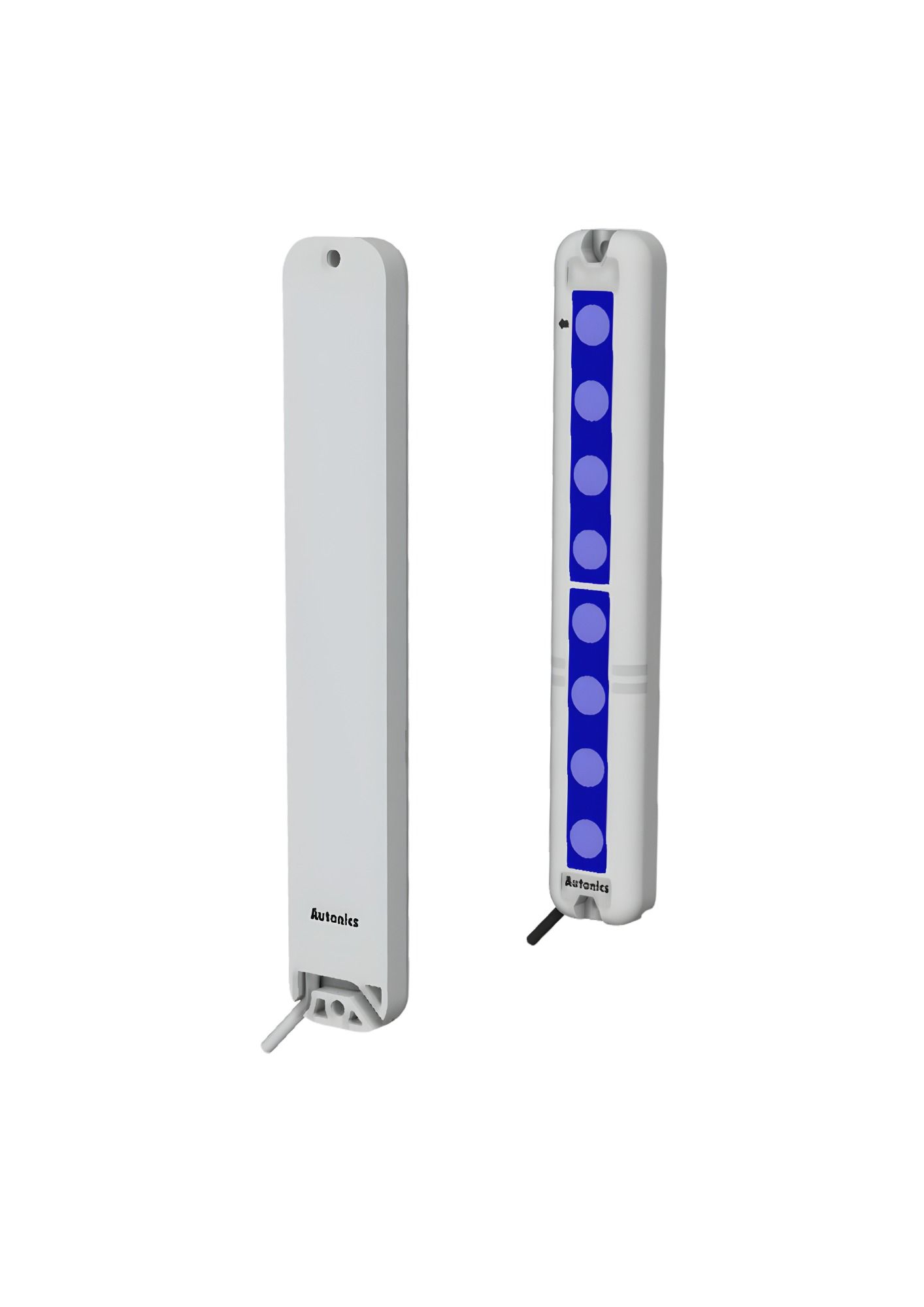

Autonics BWP20-20P, Through-beam type(direct beam), 0.1 to 5m Sensing, PNP open collector, Slim Plastic Body Area Sensor
In stock
SKU
BWP20-20P
Special Price
₹17,687.45
Regular Price
₹32,159.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Through-beam type (direct beam) |
| Sensing distance | 0.1 to 5 m |
| Light source | Infrared LED (850 nm, modulated) |
| Optical axis pitch | 20 mm |
| Number of optical axes | 20 |
| Sensing height / Total length | 380 mm / 430 mm |
| Power voltage | 12–24 VDC ±10% (ripple P-P: max. 10%) |
| Control output | PNP open collector |
| Operation mode | Light ON / Dark ON (set by switch) |
| Ambient illumination | Sunlight: Max. 10,000 lx (receiver illumination) |
| Ambient temperature | -10 to 55°C (Storage: -20 to 60°C) |
| Connection type | Cable type (Ø3.5 mm, 3 m) |
| Protection structure | IP40 |
| Ambient humidity | 35 to 85% RH (Storage: 35 to 85% RH) |
| Minimum sensing target | Opaque material, min. Ø30 mm |
| Response time | Max. 6 ms (Frequency B selection: max. 7 ms) |
| Material | Case: Polycarbonate / ABS, Sensing part: PMMA |
| Cable specification | Ø3.5 mm, 4-wire, 3 m (AWG 24, core Ø0.08 mm, 40 cores, insulator Ø1 mm) |
