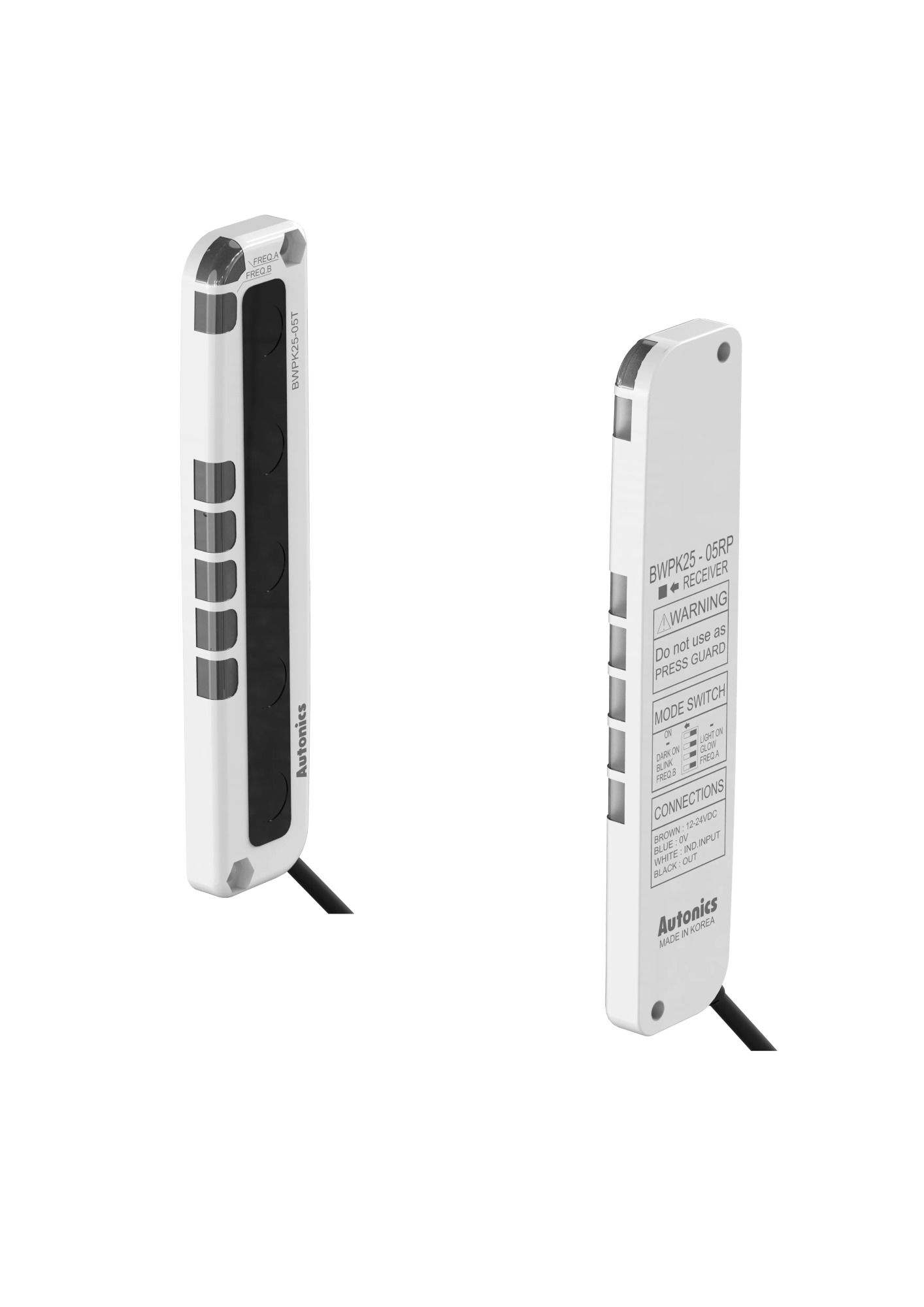

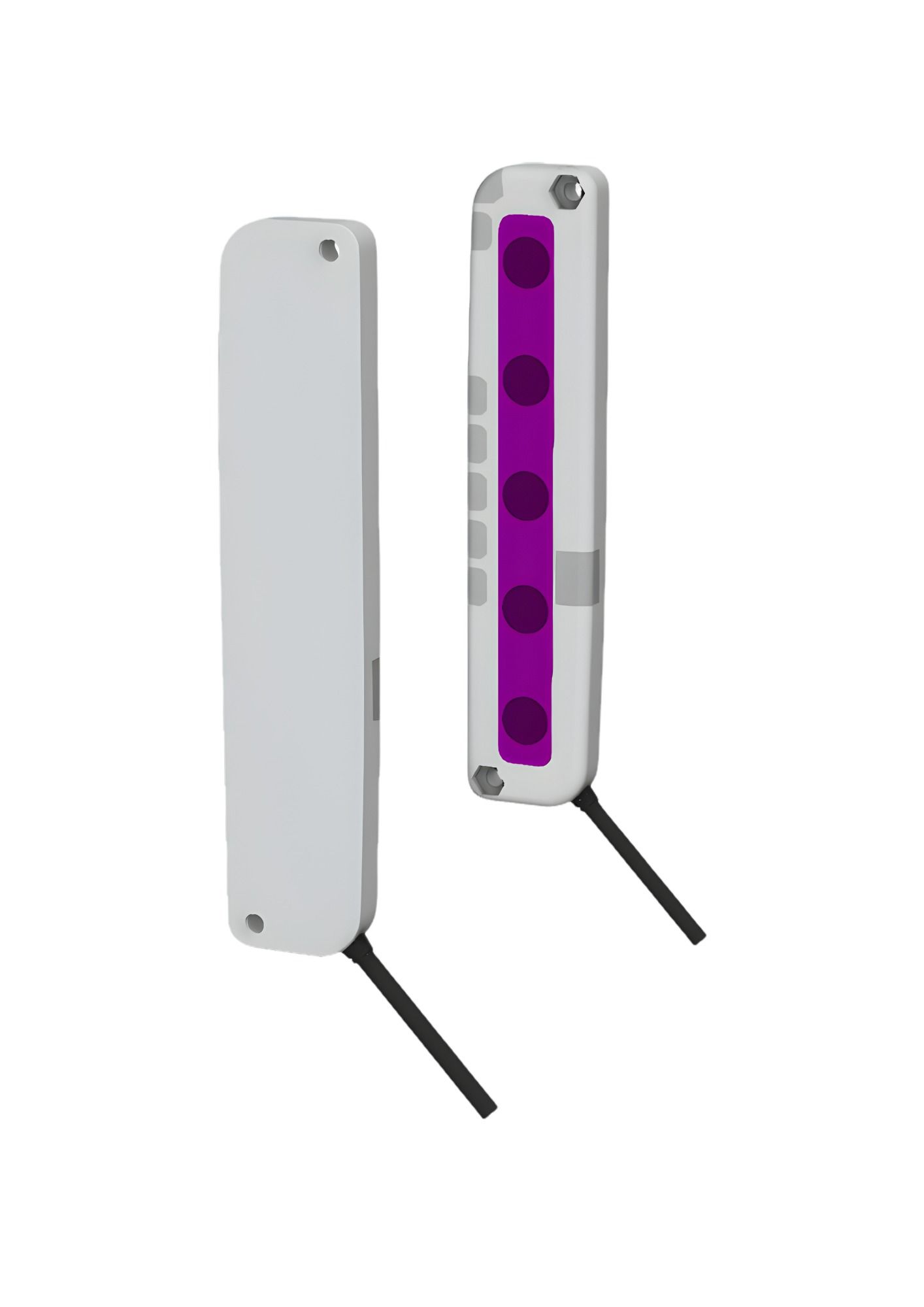

Autonics BWPK25-05, Through-beam type(direct beam), Long distance mode: 0.1 to 3m, Short distance mode: 0.05 to 1m, NPN open collector, Slim Body Area Sensor
In stock
SKU
BWPK25-05
Special Price
₹9,954.45
Regular Price
₹18,099.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Through-beam type (direct beam) |
| Sensing distance |
Long distance mode: 0.1 to 3 m Short distance mode: 0.05 to 1 m |
| Light source | Infrared LED (850 nm, modulated) |
| Optical axis pitch | 25 mm |
| Number of optical axes | 5 |
| Sensing height | 100 mm |
| Power voltage | 12–24 VDC ±10% (ripple P-P: max. 10%) |
| Control output | NPN open collector |
| Operation mode | Light ON / Dark ON (set by switch) |
| Ambient illumination |
Sunlight: Max. 10,000 lx Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient temperature |
-10 to 55°C Storage: -20 to 60°C |
| Connection type | Cable type (Ø4, 2 m) |
| Protection structure | IP40 |
| Ambient humidity |
35 to 85% RH Storage: 35 to 85% RH |
| Minimum sensing target | Opaque material, min. Ø35 mm |
| Response time | Max. 30 ms |
| Material |
Case: Polycarbonate / ABS Sensing part: PMMA |
| Cable specification |
Ø4.0 mm, 4-wire, 2 m (emitter: Ø4.0 mm, 3-wire, 2 m) AWG 22, core Ø0.08 mm, 60 cores, insulator Ø1.25 mm |
