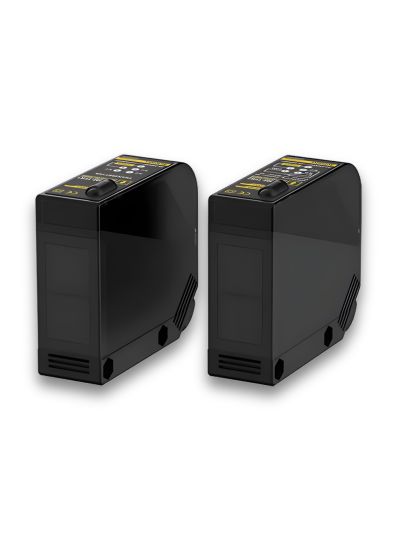

Autonics BX15M-TFR-T, 15m Sensing, Sensing target Opaque material of min. Ø15mm, Through-beam type, Universal AC/DC Photoelectric Sensor (Wire Terminal Type)
In stock
SKU
BX15M-TFR-T
Special Price
₹3,685.55
Regular Price
₹6,701.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing Type | Through-beam type |
| Sensing Distance | 15 m |
| Sensing Target | Opaque material of minimum Ø15 mm |
| Light Source | Infrared LED (850 nm) |
| Response Time | Max. 20 ms |
| Power Voltage |
24–240 VAC ±10% (50/60 Hz), 24–240 V DC ±10% (Ripple P-P: Max. 10%) |
| Current Consumption | Emitter / Receiver: Max. 3 VA |
| Sensitivity Adjustment | Sensitivity adjuster |
| Operation Mode | Light ON / Dark ON (set by switch) |
| Control Output | Relay |
| Timer Function | Timer Function |
| Connection Type | Terminal block type |
| Ambient Illumination |
Sunlight: Max. 11,000 lx; Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient Temperature |
Operating: -20 to 55 °C; Storage: -25 to 70 °C |
| Protection Structure | IP65 |
| Ambient Humidity | 35 to 85% RH (Operating & Storage) |
| Material |
Case / Lens cover: Polycarbonate Sensing part: Acrylic Bracket: Cold commercial steel plate Bolt / Nut: Chromium molybdenum steel |

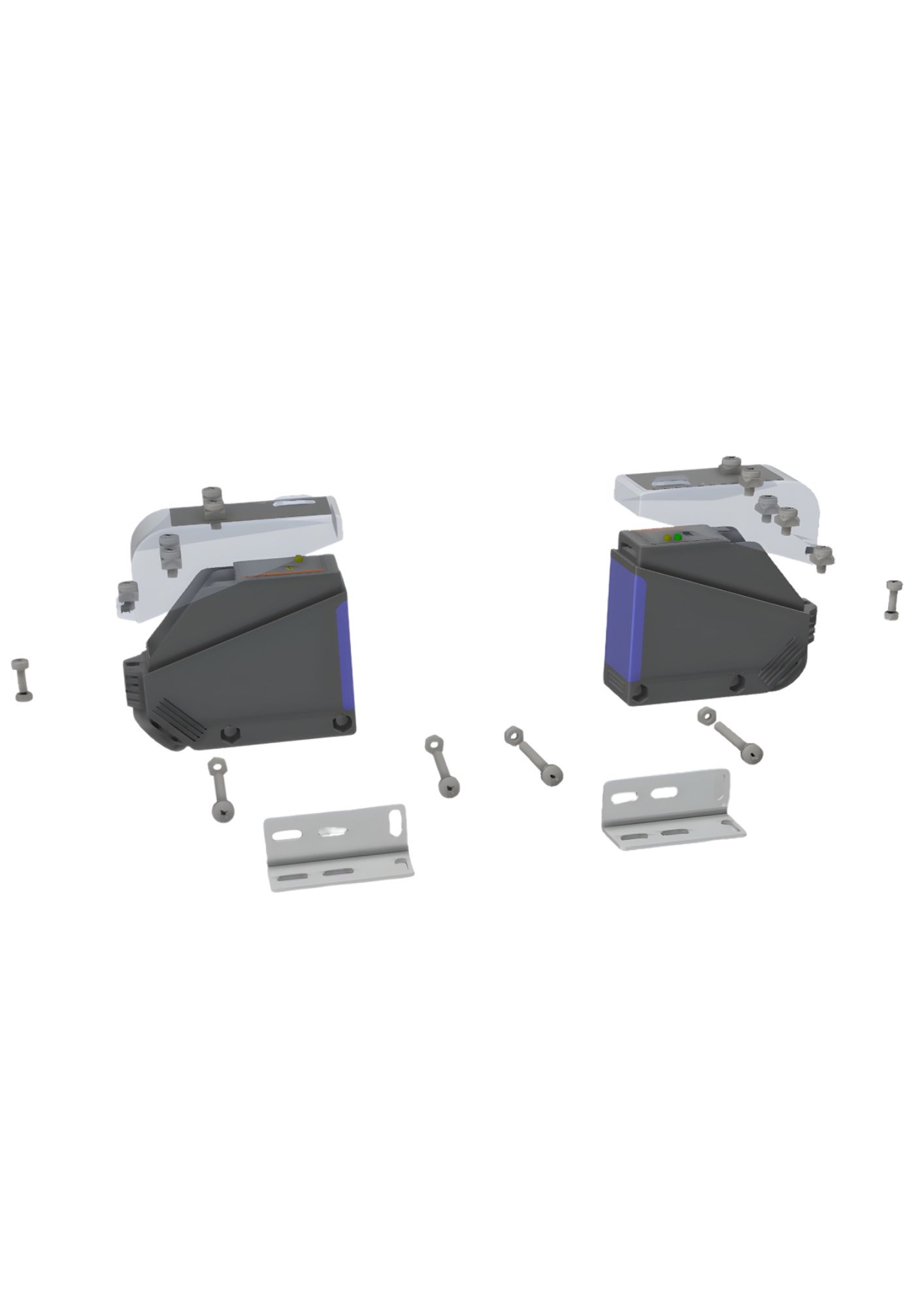

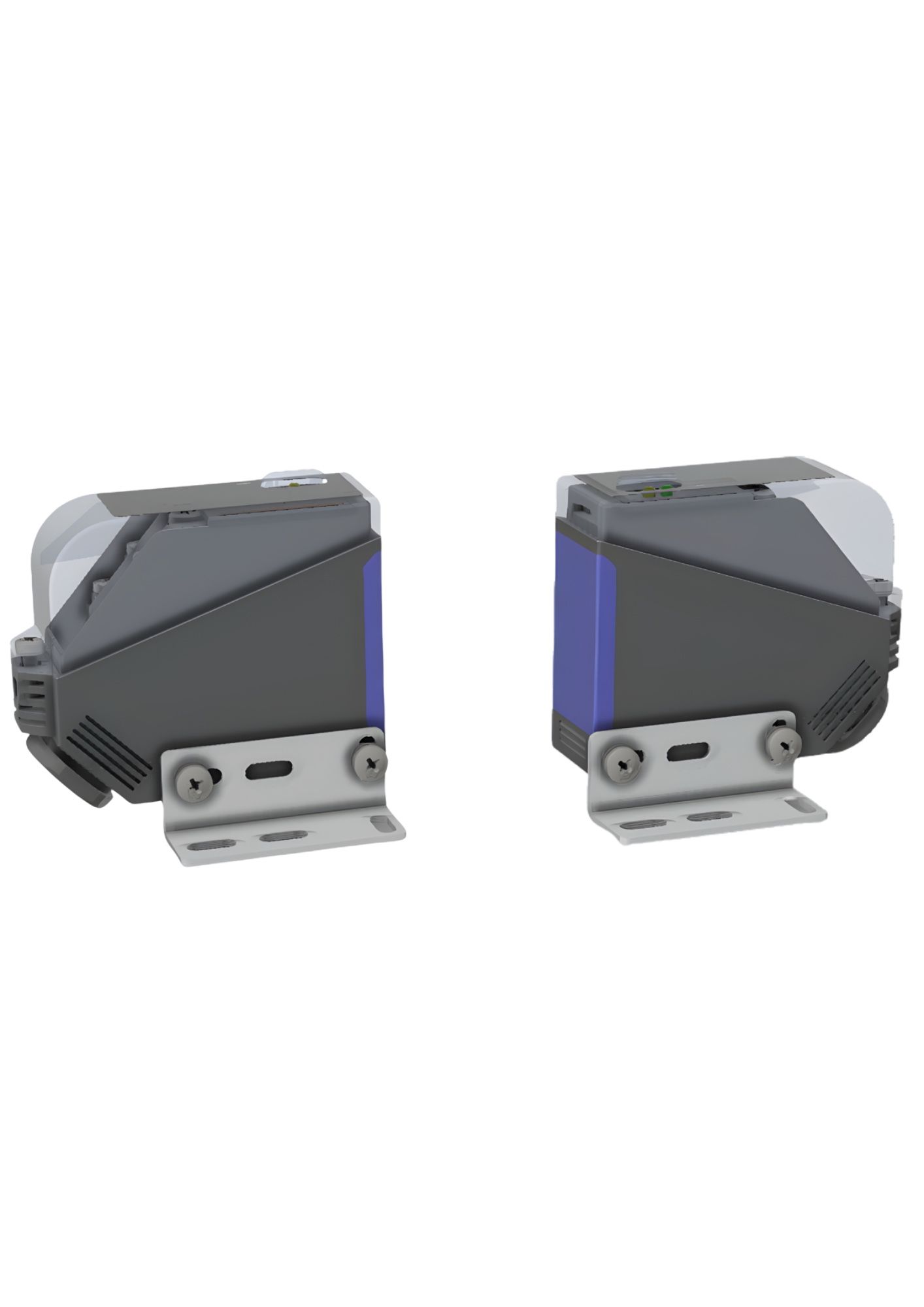

| Accessories (Common) | Adjuster driver, Fixing bracket, Bolts, Nuts |
No specifications available for this product.
