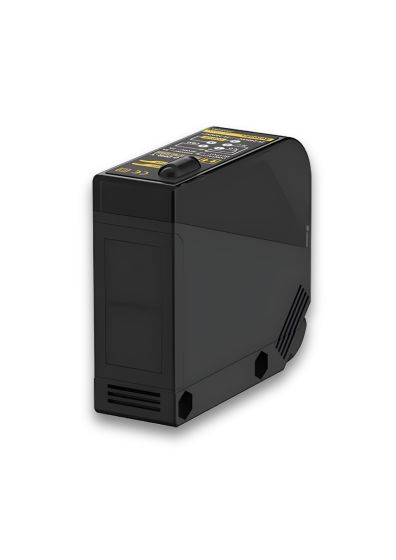

Autonics BX700-DDT, 700mm Sensing, Sensing target Opaque & Translucent material, Diffuse reflective type, Universal AC/DC Photoelectric Sensor (Wire Terminal Type)
In stock
SKU
BX700-DDT
Special Price
₹2,784.10
Regular Price
₹5,062.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 700 mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED (940 nm) |
| Response time | Max. 1 ms |
| Power voltage | 12–24 VDC ±10% (Ripple P-P: Max. 10%) |
| Current consumption | Max. 50 mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON / Dark ON (set by switch) |
| Control output | NPN, PNP open collector simultaneous output |
| Connection type | Terminal block type |
| Ambient illumination | Sunlight: Max. 11,000 lx, Incandescent lamp: Max. 3,000 lx (received illumination) |
| Ambient temperature | -20 to 55℃, Storage: -25 to 70℃ |
| Protection structure | IP65 |
| Ambient humidity | 35 to 85% RH, Storage: 35 to 85% RH |
| Hysteresis (distance) | Max. 20% at sensing distance |
| Material | Case, Lens cover: Polycarbonate; Sensing part: Acrylic; Bracket: Steel plate (cold commercial); Bolt: Steel chromium molybdenum; Nut: Steel chromium molybdenum |
| Accessories (Common) | Adjuster driver, Fixing bracket, Bolts, Nuts |
