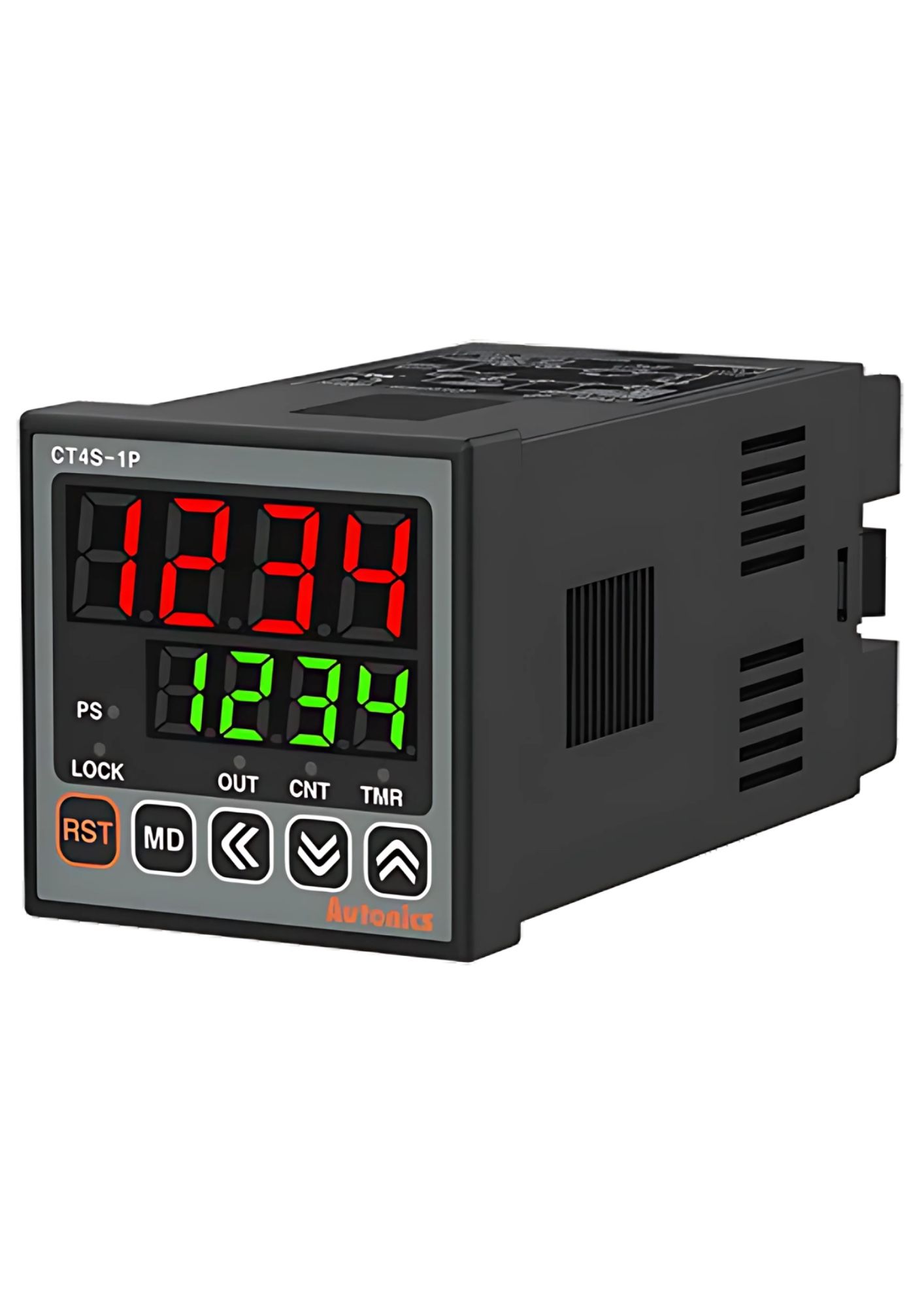

Autonics CT4S-1P4, Programmable Digital Counter+Timers, 4-digit 7-segment LED, Panel Mount
In stock
SKU
CT4S-1P4
Special Price
₹3,452.90
Regular Price
₹6,278.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Display digits: 4-digit
- Display method:7-segment (counting value: red, setting value: green) LED
- Character size:W × H (unit: mm)
- Counting value: 6.5 × 10
- Setting value: 4.5 × 8
- Counter: Count up, count down, count up / down
- Timer:Count up, count down
- Input logic:Voltage input (PNP) - input impedance: 5.4 kΩ, [H]: 5-30 VDC~, [L]: 0-2 VDC~ No-voltage input (NPN)-short-circuit impedance: ≤ 1 kΩ, short-circuit residual voltage: ≤ 2 VDC~
- One-shot output time: 0.01 to 99.99s
- Product components: Product, instruction manual
- Unit weight (packaged):≈ 159g (≈ 212g)
- Contact control output: Relay
- Insulation resistance: ≥ 100 MΩ (500 VDC~ megger)
- Dielectric strength: 2,000 VAC~ 50 / 60 Hz for 1 minute
- Relay life cycle:Mechanical: ≥ 1,000,000 operations, Electrical: ≥ 100,000 operations
- Solid-state control output: NPN open collector
- Voltage:AC voltage type
- Power supply:100 - 240 VAC~ ± 10 % 50/60 Hz
- Power consumption:≤ 12 VA
- External power supply:≤ 12 VDC~ ± 10 % 100 mA
- Ambient temperature: -10 to 55℃, storage: -25 to 65℃ (no freezing or condensation)
- Ambient humidity: 35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation)
- Protection rating: IP65 (front part, IEC standard)
- Comm. protocol:Modbus RTU (16-bit CRC)
