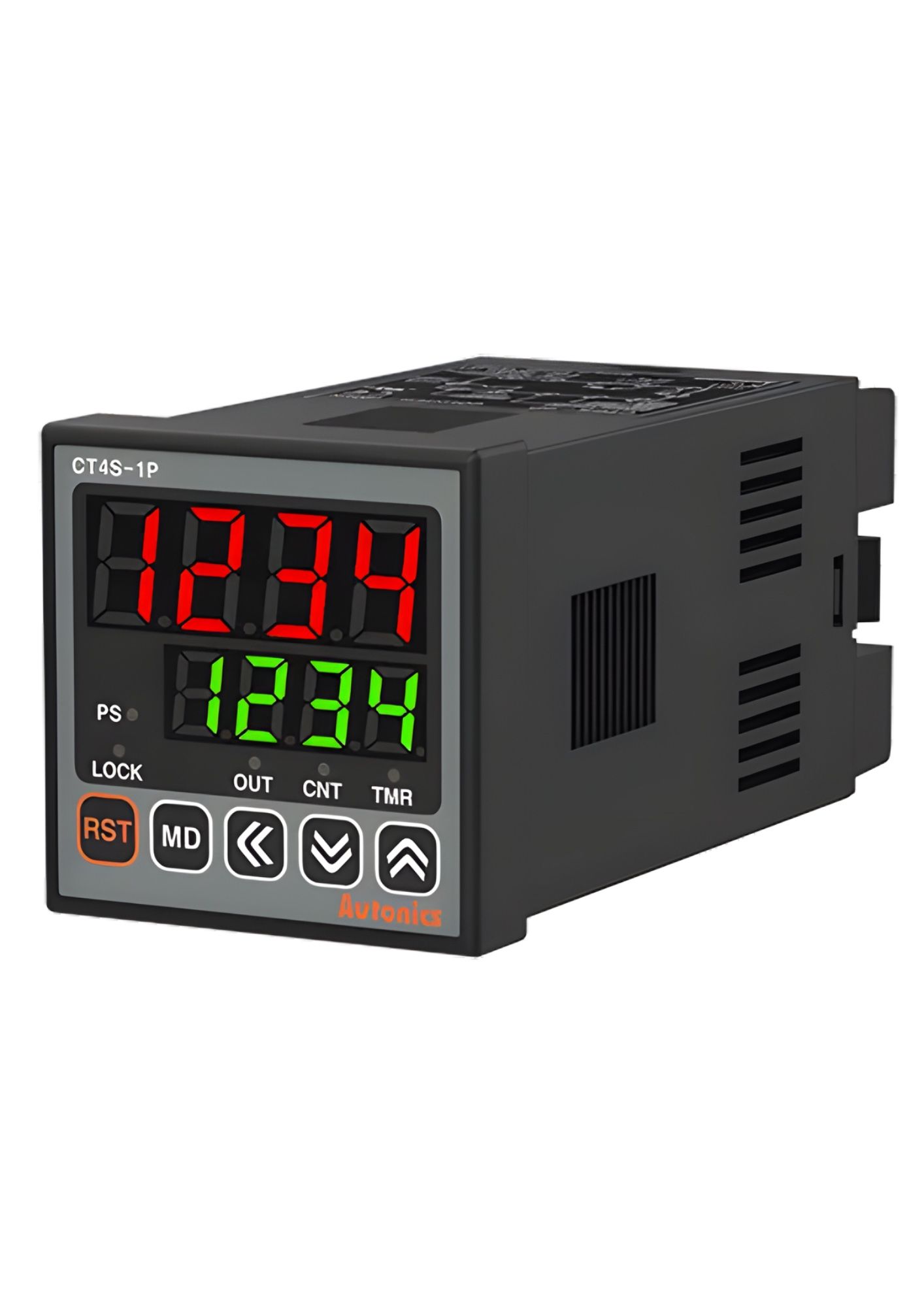

Autonics CT4S-1P4T, 100-240VAC~ 50/60Hz, 4-digit 7-segment LED, Programmable Digital Counter/Timer
In stock
SKU
CT4S-1P4T
Special Price
₹4,791.05
Regular Price
₹8,711.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Display method: 4-digit 7-segment LED
- Operation method:
- Counter: Count up, Count down, Count up/down
- Timer: Count up, Count down
- Terminal: Terminal block
- Output Operation: SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
- Power voltage: 100–240VAC~ 50/60Hz
- Time operation:
- POWER ON START
- SIGNAL ON START
- External Power Supply: Max. 12VDC ±10%, 100mA
- Signal Input Method: Voltage input (PNP), No-voltage input (NPN)
- Max. Counting Speed: 1, 30, 1k, 5k, 10k [cps]
- Min. signal Width: 1ms / 20ms
- Memory Protection: Approx. 10 years
- Setting range:
- 0.001 sec to 9.999 sec
- 0.01 sec to 99.99 sec
- 0.1 sec to 999.9 sec
- 1 sec to 9999 sec
- 1 sec to 99 min 59 sec
- 0.1 min to 999.9 min
- 1 min to 9999 min
- 1 min to 99 hour 59 min
- 1 hour to 9999 hour
- Control output (Type): 1-stage preset
- Control output (Relay): SPDT (1c): 1
- Communication output: RS485
- Protection structure: IP65 (front panel)
- Counter – Counting range: -999 to 9999
- Counter – Scale: Decimal point up to third digit
- Counter – Min. input signal width: RESET: Selectable 1ms / 20ms
- Timer – Min. input signal width: INA, INH, RESET: Selectable 1ms / 20ms
- Environment – Ambient temperature: -10 to 55℃, storage: -25 to 65℃
- Environment – Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
