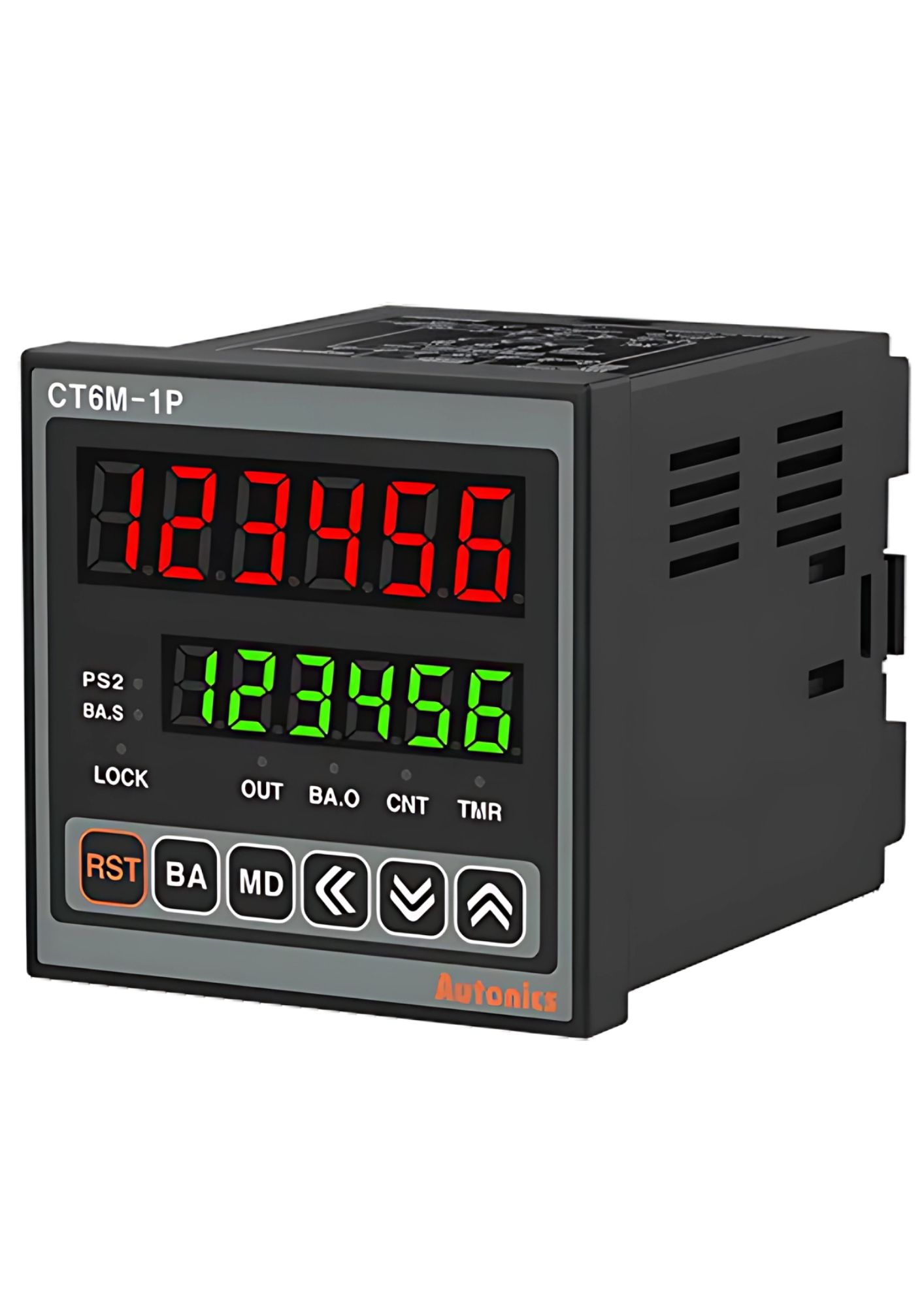

Autonics CT6M-2P4, Programmable Digital Counter+Timers, 6-digit 7-segment LED, Panel Mount
Autonics CT6M-2P4, Programmable Digital Counter+Timers, 6-digit 7-segment LED, Panel Mount Autonics CT6M-2P4, Programmable Digital Counter+Timers, 6-digit 7-segment LED, Panel Mount

Autonics CT6M-2P4, Programmable Digital Counter+Timers, 6-digit 7-segment LED, Panel Mount

In stock
SKU
CT6M-2P4
Special Price ₹5,172.20 Regular Price ₹9,404.00
(18% GST Extra)
Add to Wish List
  • Display method : 6-digit 7-segment LED
  • Operation method : Counter: Count up, Count down, Count up/down Timer: Count up, Count down
  • Terminal : Terminal block
  • Output Operation : SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
  • Power supply : 100-240VAC~ 50/60Hz
  • Protection structure : IP65(front panel)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display digits: 6-digit
  • Display method:7-segment (counting value: red, setting value: green) LED
  • Character size:W × H (unit: mm)
  • Counting value: 4.5 × 10
  • Setting value: 3.5 × 7
  • Counter: Count up, count down, count up / down
  • Timer:Count up, count down
  • Input logic:Voltage input (PNP) - input impedance: 5.4 kΩ, [H]: 5-30 VDC~, [L]: 0-2 VDC~ No-voltage input (NPN)-short-circuit impedance: ≤ 1 kΩ, short-circuit residual voltage: ≤ 2 VDC~
  • One-shot output time: 0.01 to 99.99s
  • Product components: Product, instruction manual
  • Unit weight (packaged):≈ 159g (≈ 212g)
  • Contact control output: Relay
  • Insulation resistance: ≥ 100 MΩ (500 VDC~ megger)
  • Dielectric strength: 2,000 VAC~ 50 / 60 Hz for 1 minute
  • Relay life cycle:Mechanical: ≥ 1,000,000 operations, Electrical: ≥ 100,000 operations
  • Solid-state control output: NPN open collector
  • Voltage:AC voltage type
  • Power supply:100 - 240 VAC~ ± 10 % 50/60 Hz
  • Power consumption:≤ 12 VA
  • External power supply:≤ 12 VDC~ ± 10 % 100 mA
  • Ambient temperature: -10 to 55℃, storage: -25 to 65℃ (no freezing or condensation)
  • Ambient humidity: 35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation)
  • Protection rating: IP65 (front part, IEC standard)
  • Comm. protocol:Modbus RTU (16-bit CRC)
