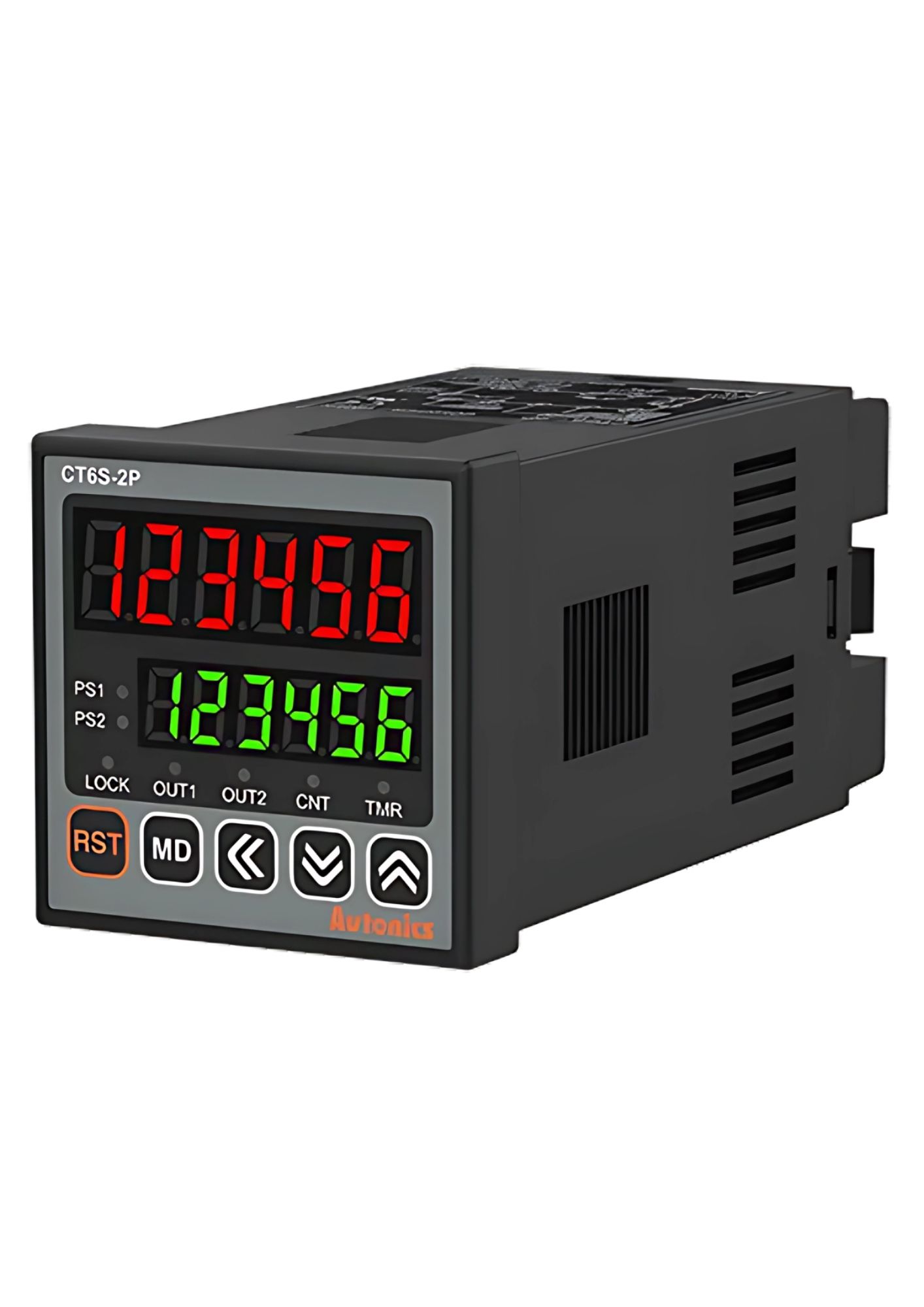

Autonics CT6S-2P4,  Programmable Digital Counter+Timers, 6-digit 7-segment LED, Panel Mount
Autonics CT6S-2P4,  Programmable Digital Counter+Timers, 6-digit 7-segment LED, Panel Mount Autonics CT6S-2P4,  Programmable Digital Counter+Timers, 6-digit 7-segment LED, Panel Mount

Autonics CT6S-2P4, Programmable Digital Counter+Timers, 6-digit 7-segment LED, Panel Mount

In stock
SKU
CT6S-2P4
Special Price ₹4,432.45 Regular Price ₹8,059.00
(18% GST Extra)
Add to Wish List
  • Display method : 6-digit 7-segment LED
  • Operation method : Counter: Count up, Count down, Count up/down Timer: Count up, Count down
  • Terminal : Terminal block
  • Output Operation : SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
  • Power supply : 100-240VAC~ 50/60Hz
  • Protection structure : IP65(front panel)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display method: 6-digit 7-segment LED
  • Operation method:Counter: Count up, Count down, Count up/down, Timer: Count up, Count down
  • Terminal:Terminal block
  • Output Operation: SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
  • Power supply: 100-240VAC~ 50/60Hz
  • Time operation:POWER ON START, SIGNAL ON START
  • External Power Supply:Max. 12VDC ±10%, 100mA
  • Signal Input Method: Voltage input(PNP), No-voltage input(NPN)
  • Max. Counting Speed: 1, 30, 1k, 5k, 10k [cps]
  • Min. signal Width:1ms/20ms
  • Memory Protection:Approx. 10 years
  • Setting range: ≥ 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
  • Control output Type: 2-stage preset
  • Control output Relay:SPST (1a): 2
  • Control output NPN open collector: 1
  • Protection structure:IP65(front panel)
  • Counter_Counting range:-99999 to 999999
  • Counter_Scale:Decimal point up to fifth digit
  • Counter_Min. input signal width:RESET: Selectable 1ms/20ms
  • Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Weight: Approx. 212g (approx. 159g)
