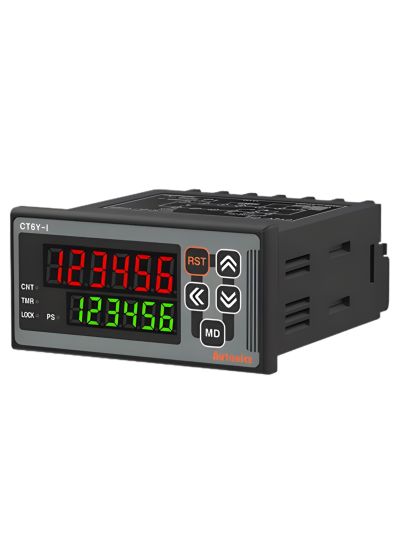

Autonics CT6Y-I4, 6-digit 7-segment LED, 100-240VAC~ 50/60Hz, Programmable Digital Counter
In stock
SKU
CT6Y-I4
Special Price
₹3,144.90
Regular Price
₹5,718.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Display method: 6-digit 7-segment LED
- Operation method:
- Counter: Count up, Count down, Count up/down
- Timer: Count up, Count down
- Terminal: Terminal block
- Power voltage: 100-240VAC~ 50/60Hz
- Time operation: POWER ON START, SIGNAL ON START
- External Power Supply: Max. 12VDC specialstring ±10%, 100mA
- Signal Input Method: Voltage input (PNP), No-voltage input (NPN)
- Max. Counting Speed: 1, 30, 1k, 5k, 10k [cps]
- Min. Signal Width: 1ms / 20ms
- Memory Protection: Approx. 10 years
- Setting range:
- 0.001 sec to 9.999 sec
- 0.01 sec to 99.99 sec
- 0.1 sec to 999.9 sec
- 1 sec to 9999 sec
- 1 sec to 99 min 59 sec
- 0.1 min to 999.9 min
- 1 min to 9999 min
- 1 min to 99 hour 59 min
- 1 hour to 9999 hour
- Control output Type: Indicator
- Protection structure: IP65 (front panel)
- Counter – Counting range: -99999 to 999999
- Counter – Scale: Decimal point up to fifth digit
- Counter – Min. input signal width: RESET: Selectable 1ms / 20ms
- Timer – Min. input signal width: INA, INH, RESET: Selectable 1ms / 20ms
- Environment – Ambient temperature: -10 to 55℃ (storage: -25 to 65℃)
- Environment – Ambient humidity: 35 to 85% RH (storage: 35 to 85% RH)
