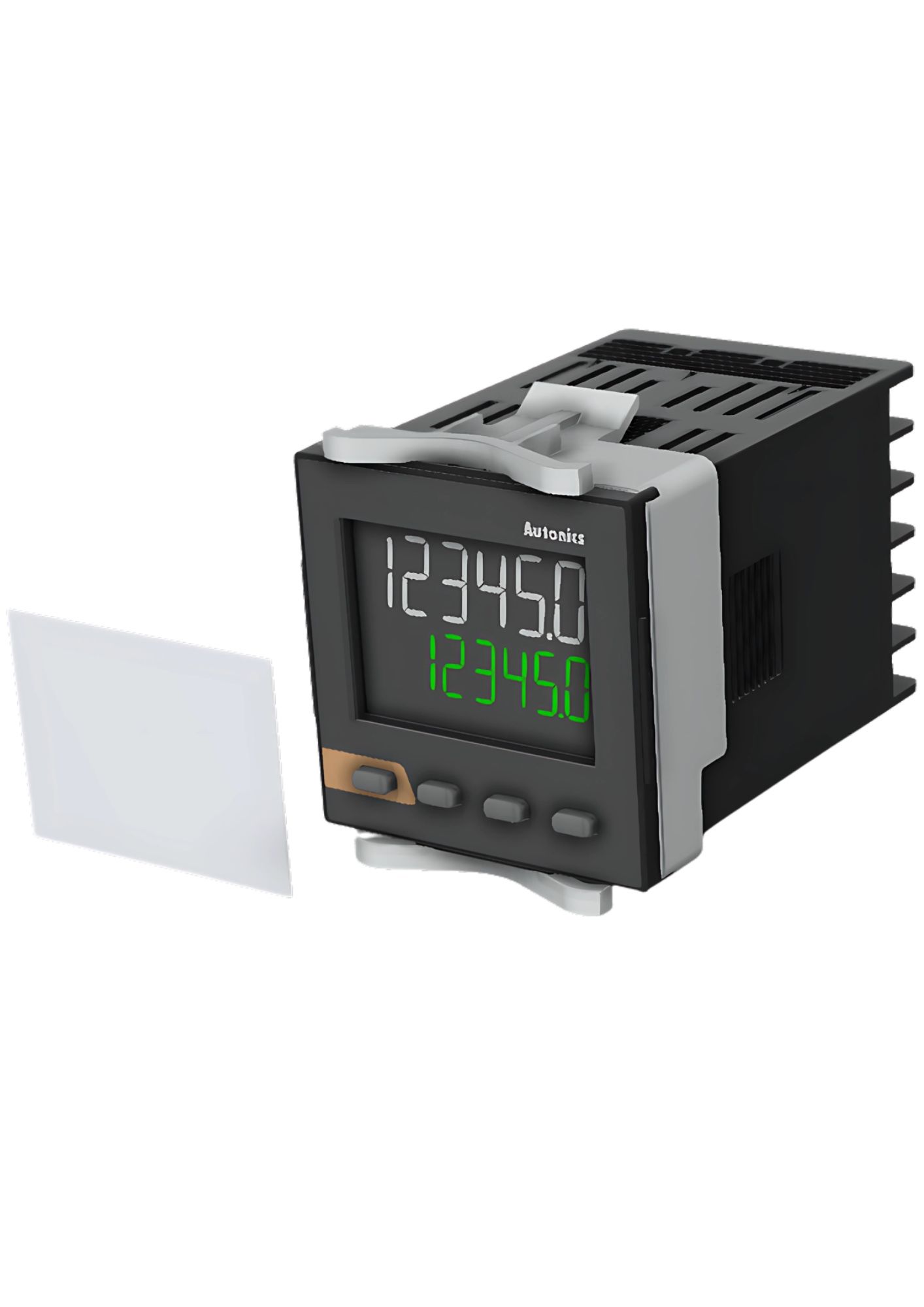

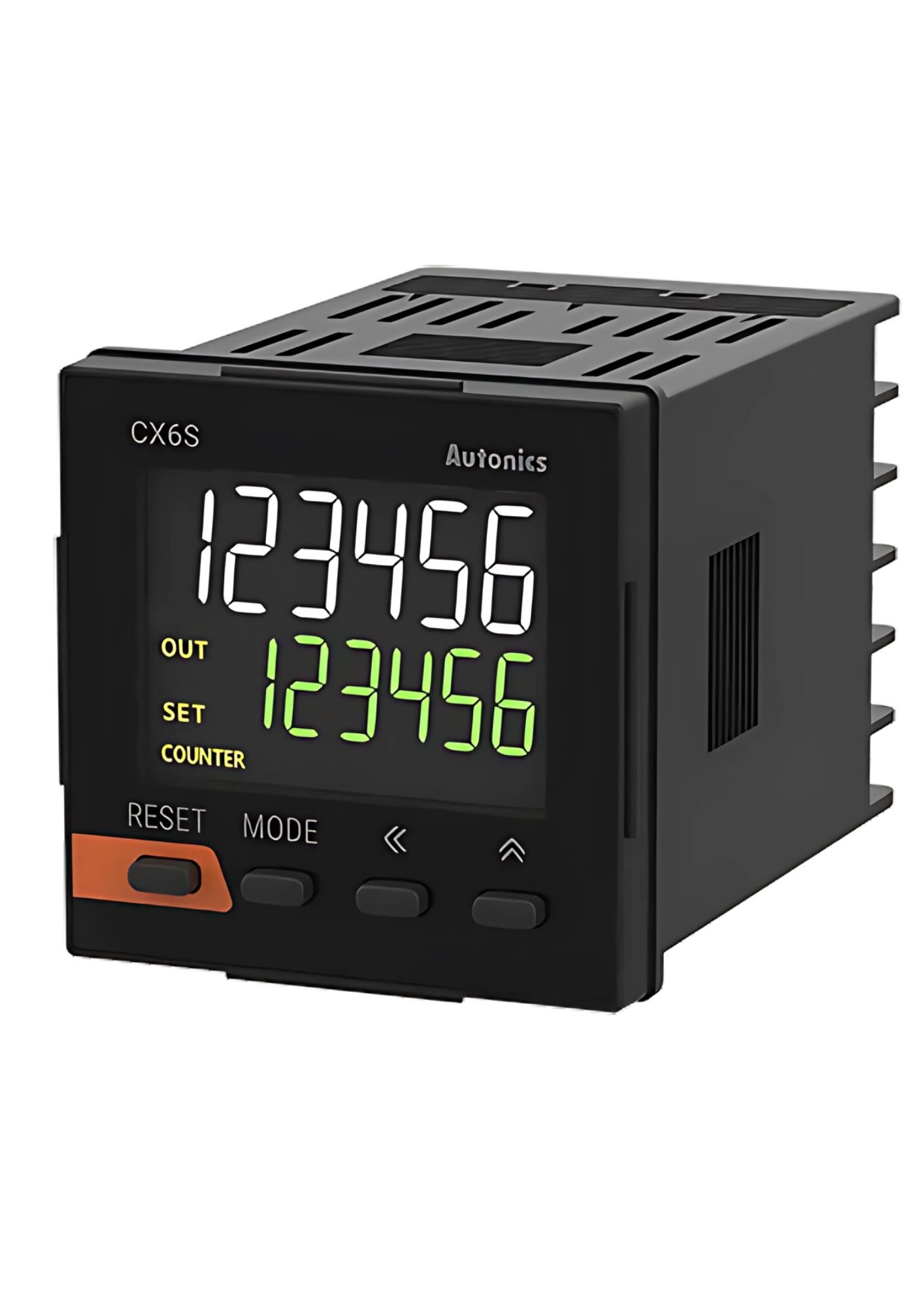

Autonics CX6S-1P4, LCD Display Counter + Timer, Counting display part- 2-digit 7-segment LCD, 4-digit 11-segment LCD Setting value display part- 6-digit 7-segment LCD, Panel Mount
Out of stock
SKU
CX6S-1P4
₹5,058.00


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Display digits: 6-digit
- Display method:7-segment (1st, 2nd digits of counting value display: white, setting value display: green),11-segment (the other digits of counting value display: white) LCD
- Character size:W × H (unit: mm)
- Counting value: 4.1 × 10.1
- Setting value: 3.3 × 8.1
- Counter: Count up, count down, count up / down
- Timer:Count up, count down
- Input logic:Voltage input (PNP) - input impedance: 10.8 kΩ,[H]: 5-30 VDC~, [L]: 0-2 VDC~ No-voltage input (NPN) - short-circuit impedance: ≤ 1 kΩ,short-circuit residual voltage: ≤ 2VDC~
- One-shot output time: 0.01 to 99.99s
- Product components: Product, instruction manual
- Unit weight (packaged):≈ 112g (≈ 157g)
- Contact control output: Relay
- Insulation resistance: ≥ 100 MΩ (500 VDC~ megger)
- Dielectric strength: 2,000 VAC~ 50 / 60 Hz for 1 minute
- Relay life cycle:Mechanical: ≥ 1,000,000 operations, Electrical: ≥ 100,000 operations
- Voltage:AC voltage type
- Power supply:100 - 240 VAC~ ± 10 % 50/60 Hz
- Power consumption:≤ 6.4 VA
- External power supply:≤ 12 VDC~ ± 10 % 100 mA
- Ambient temperature: -10 to 55℃, storage: -25 to 65℃ (no freezing or condensation)
- Ambient humidity: 35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation)
- Protection rating: IP65 (front part, IEC standard)
