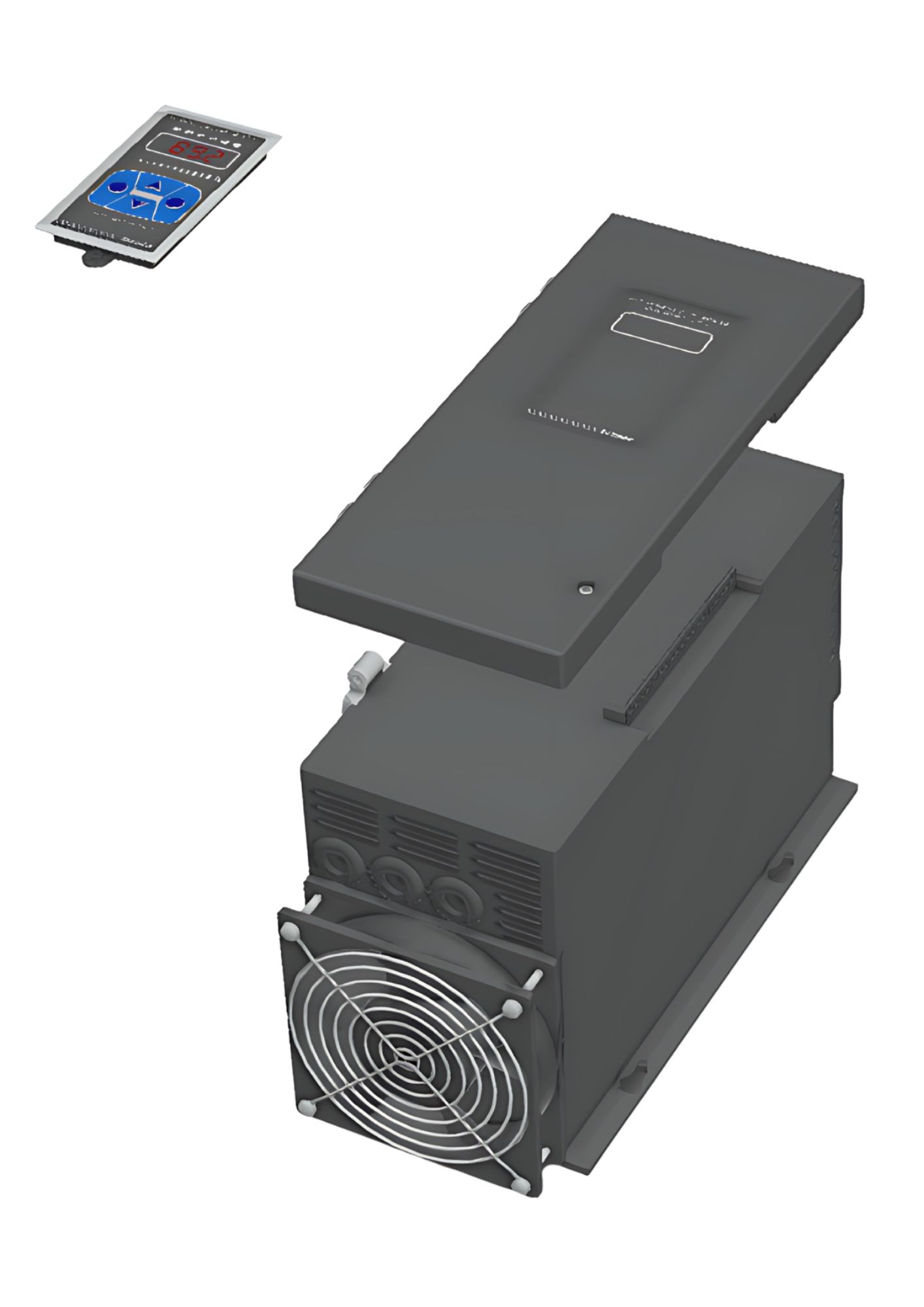

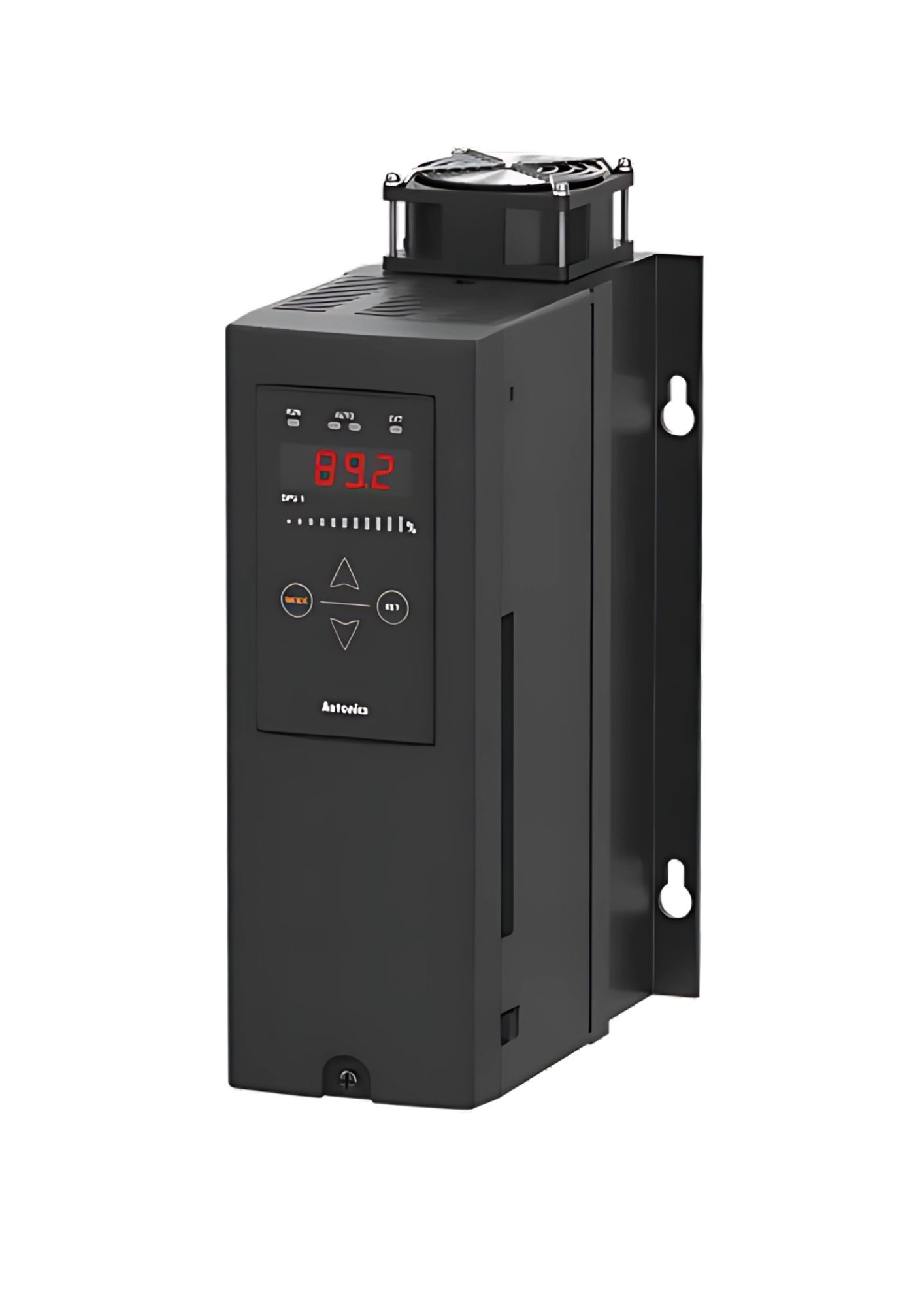

Autonics DPU14A-050D, Digital Thyristor Power Controller
Autonics DPU14A-050D, Digital Thyristor Power Controller Autonics DPU14A-050D, Digital Thyristor Power Controller

Autonics DPU14A-050D, Digital Thyristor Power Controller

Out of stock
SKU
DPU14A-050D
Special Price ₹28,464.70 Regular Price ₹51,754.00
(18% GST Extra)
  • Number of phase : Single-phase
  • Indicator : Operation / manual control indicator (green) DI, alarm / unit (V, A) indicator (red)
  • Power supply : 440V
  • Power consumption : ≤ 40 W (control power)
  • Rated current capacity : 50A
  • Option : Remote Display Unit

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Number of phase: Single-phase
  • Indicator: Operation / manual control indicator (green) DI, alarm / unit (V, A) indicator (red)
  • Control input: • Auto: 4-20mA / 0-20mA / 0-5VDC/ 1-5VDC/ 0-10VDC/ voltage pulse (0/12VDC) / no-voltage input (ON/OFF) / Communication input (RS485) • Manual: inside 10kΩ VR, outside 3 to 10kΩ VR (min. 2W)
  • Control method: • Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback) • Cycle control (Z.C.): Fixed cycle control, Variable cycle control • ON/OFF control (Z.C.)
  • Load: • Phase control: resistance load, inductive load • ON/OFF, Cycle control: resistance load
  • Output range: Phase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100%
  • Power supply: 440V
  • Power consumption: ≤ 40 W (control power)
  • Rated current capacity: 50A
  • Option: Remote Display Unit
  • Environment_Ambient temperature: -10 to 50 ℃, storage: -20 to 80 ℃ (no freezing or condensation)
  • Environment_Ambient humidity: 5 to 90 %RH, storage: 5 to 90 %RH (no freezing or condensation)
  • Size: 0~70A
  • Unit weight (packaged weight): ≈ 3.0 kg (≈ 3.2 kg)

No specifications available for this product.
