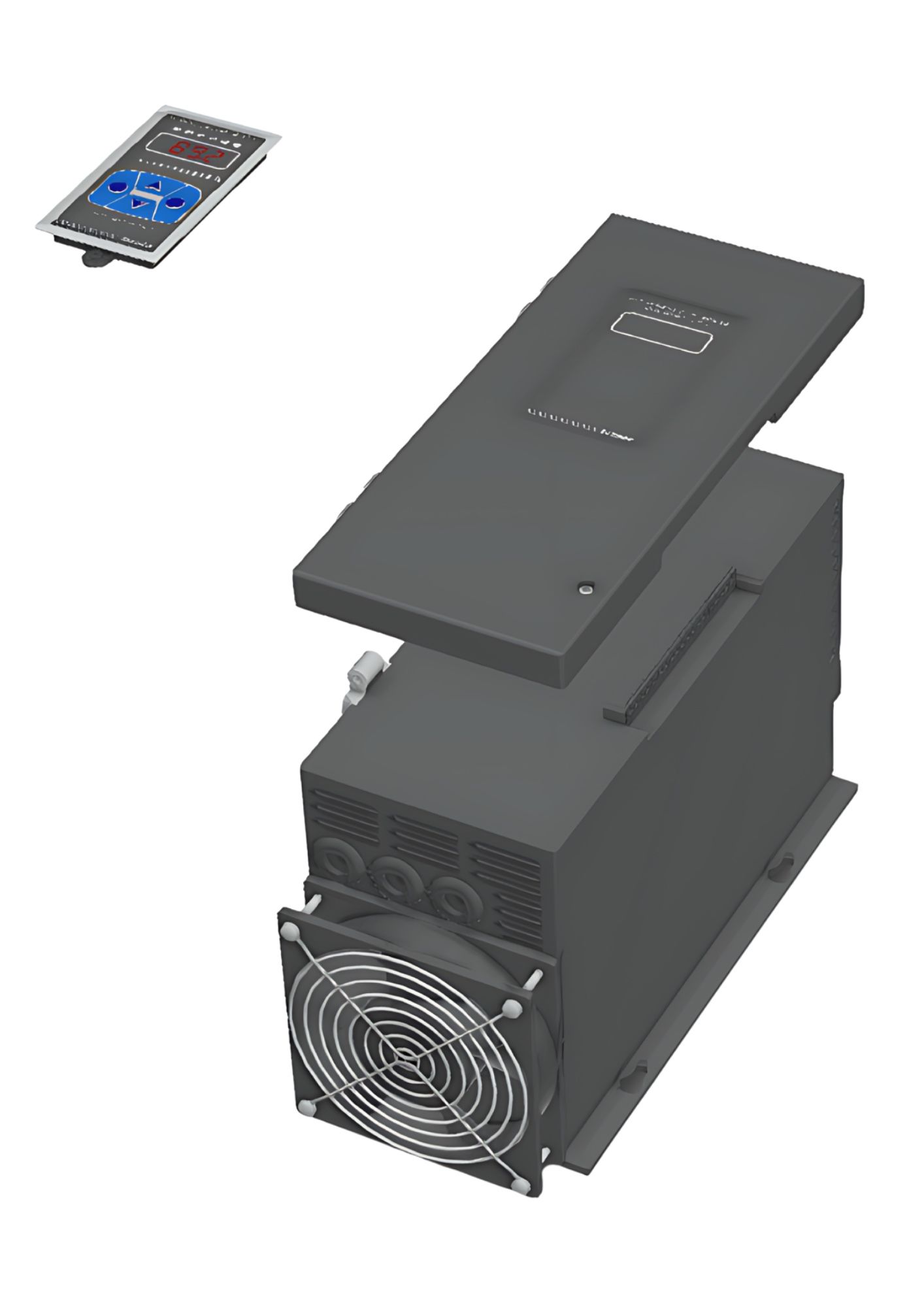

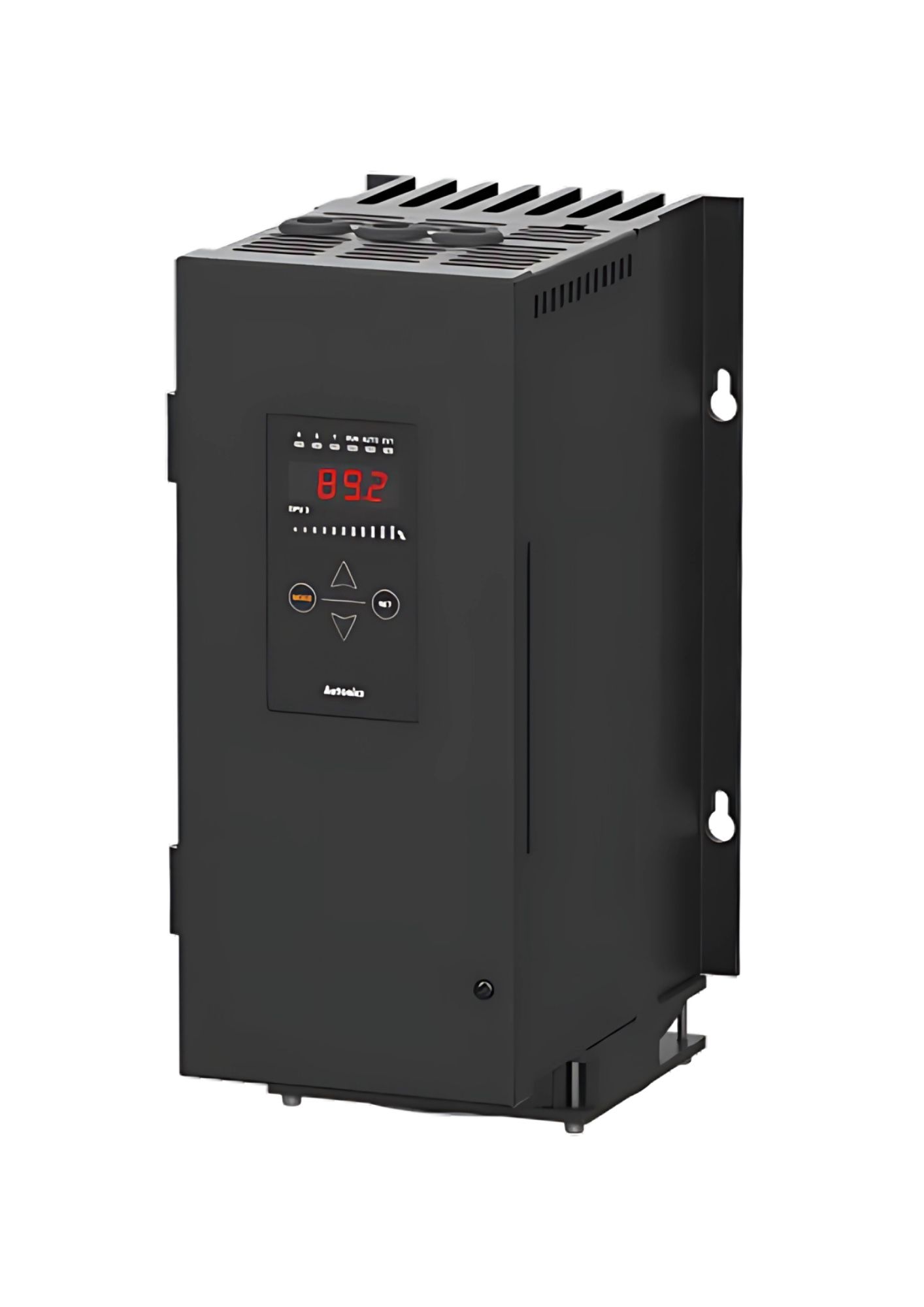

Autonics DPU34A-050D, 3 Phase Digital Thyristor Power Controller
In stock
SKU
DPU34A-050D
Special Price
₹58,382.50
Regular Price
₹106,150.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Number of phase: 3-phase
- Indicator: R, S, T indicator (green), Operation / manual control indicator (green), DI, alarm / unit (V, A) indicator (red)
- Control input: • Auto: 4-20mA/0-20mA/0-5VDC/1-5VDC/0-10VDC/ voltage pulse(0/12VDC)/ no-voltage input (ON/OFF)/ Communication input (RS485) • Manual: inside 10kΩ VR, outside 3 to 10kΩ VR (min. 2W)
- Control method: • Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback) • Cycle control (Z.C.): Fixed cycle control, Variable cycle control • ON/OFF control (Z.C.)
- Load: • Phase control: resistance load, inductive load • ON/OFF, Cycle control: resistance load
- Output range: Phase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100%
- Power supply: 440V
- Power consumption: ≤ 60 W (control power)
- Rated current capacity: 50A
- Option: Remote Display Unit
- Environment_Ambient temperature: -10 to 50 ℃, storage: -20 to 80 ℃ (no freezing or condensation)
- Environment_Ambient humidity: 5 to 90 %RH, storage: 5 to 90 %RH (no freezing or condensation)
- Size: 0~70A
- Unit weight (packaged weight): ≈ 6.5 kg (≈ 7.6 kg)
