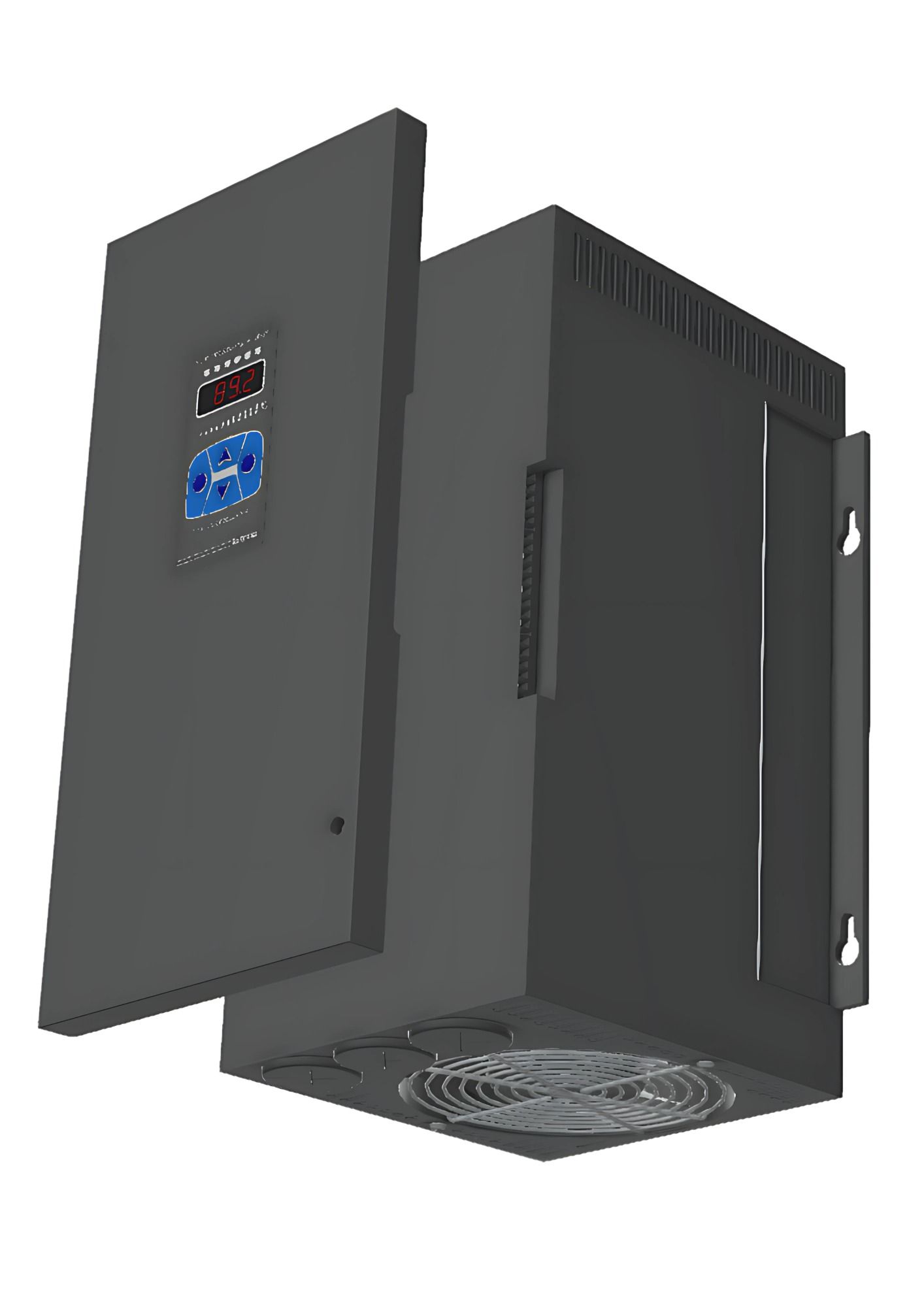

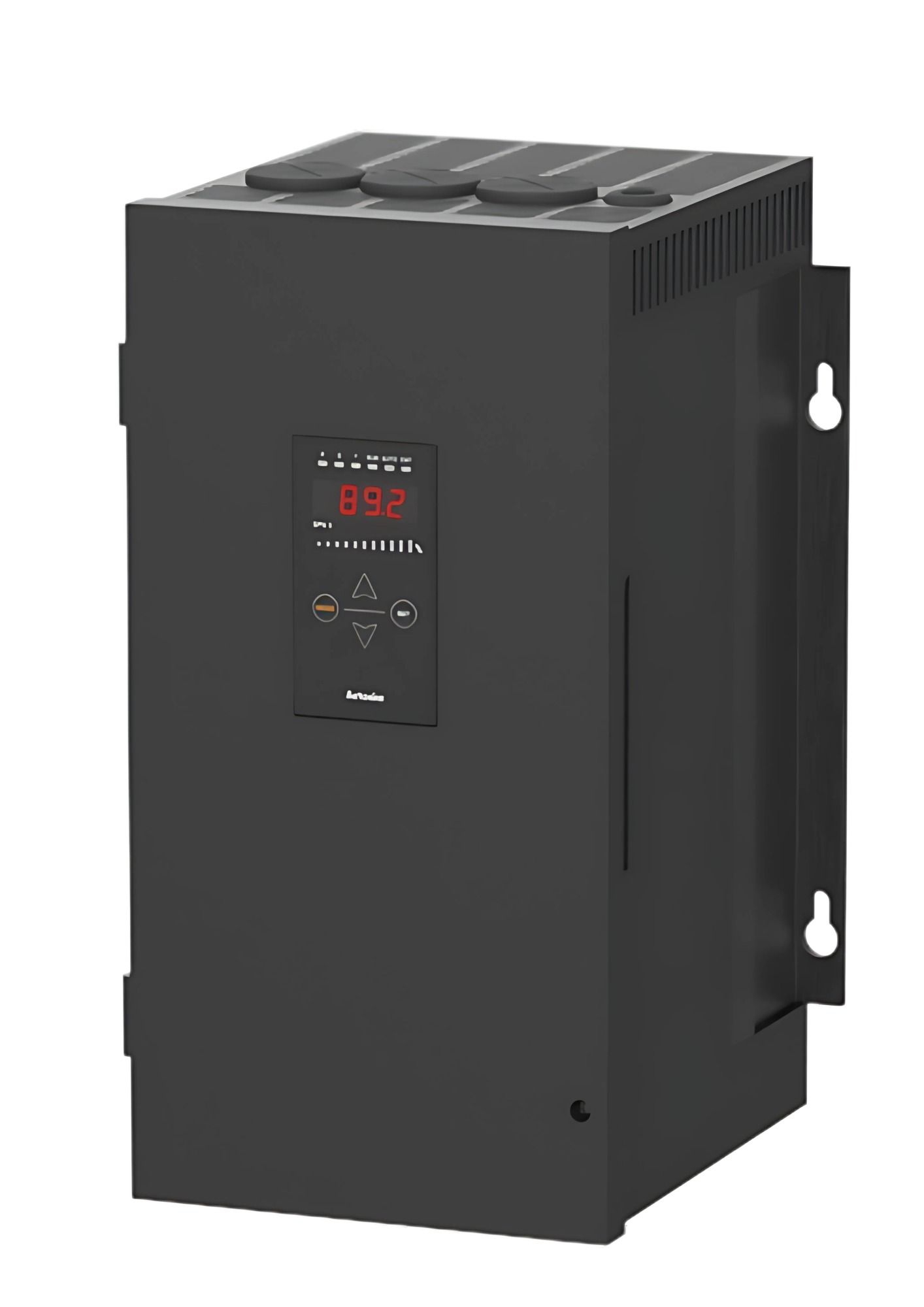

Autonics DPU34B-150A , Single-Phase / 3-Phase Digital Power Controllers
Autonics DPU34B-150A , Single-Phase / 3-Phase Digital Power Controllers Autonics DPU34B-150A , Single-Phase / 3-Phase Digital Power Controllers

Autonics DPU34B-150A , Single-Phase / 3-Phase Digital Power Controllers

In stock
SKU
DPU34B-150A-A
Special Price ₹91,363.00 Regular Price ₹166,116.00
(18% GST Extra)
Add to Wish List
Feature:
  • Number of phase : 3-phase
  • Indicator : R, S, T indicator (green) Operation / manual control indicator (green) DI, alarm / unit (V, A) indicator (red)
  • Power supply : 440V
  • Power consumption : ≤ 60 W (control power)
  • Rated current capacity : 150A
  • Option : Remote Display Unit + RS485 Communication
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Number of phase: 3-phase
  • Indicator: R, S, T indicator (green); Operation / manual control indicator (green); DI, alarm / unit (V, A) indicator (red)
  • Control input: • Auto: 4-20mA / 0-20mA / 0-5VDC specialstring / 1-5VDC specialstring / 0-10VDC specialstring / voltage pulse (0/12VDC specialstring) / no-voltage input (ON/OFF) / Communication input (RS485) • Manual: inside 10kΩ VR, outside 3 to 10kΩ VR (min. 2W)
  • Control method: • Phase control: Normal control (Non-Feedback), static voltage / static current / static power control (Feedback) • Cycle control (Z.C.): Fixed cycle control, Variable cycle control • ON/OFF control (Z.C.)
  • Load: • Phase control: resistance load, inductive load • ON/OFF, Cycle control: resistance load
  • Output range: Phase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100%
  • Power supply: 440V
  • Power consumption: ≤ 60 W (control power)
  • Rated current capacity: 150A
  • Option: Remote Display Unit + RS485 Communication
  • Environment - Ambient temperature: -10 to 50 ℃, storage: -20 to 80 ℃ (no freezing or condensation)
  • Environment - Ambient humidity: 5 to 90 %RH, storage: 5 to 90 %RH (no freezing or condensation)
  • Size: 80~200A
  • Unit weight (packaged weight): ≈ 11.5 kg (≈ 13.0 kg)

No specifications available for this product.
