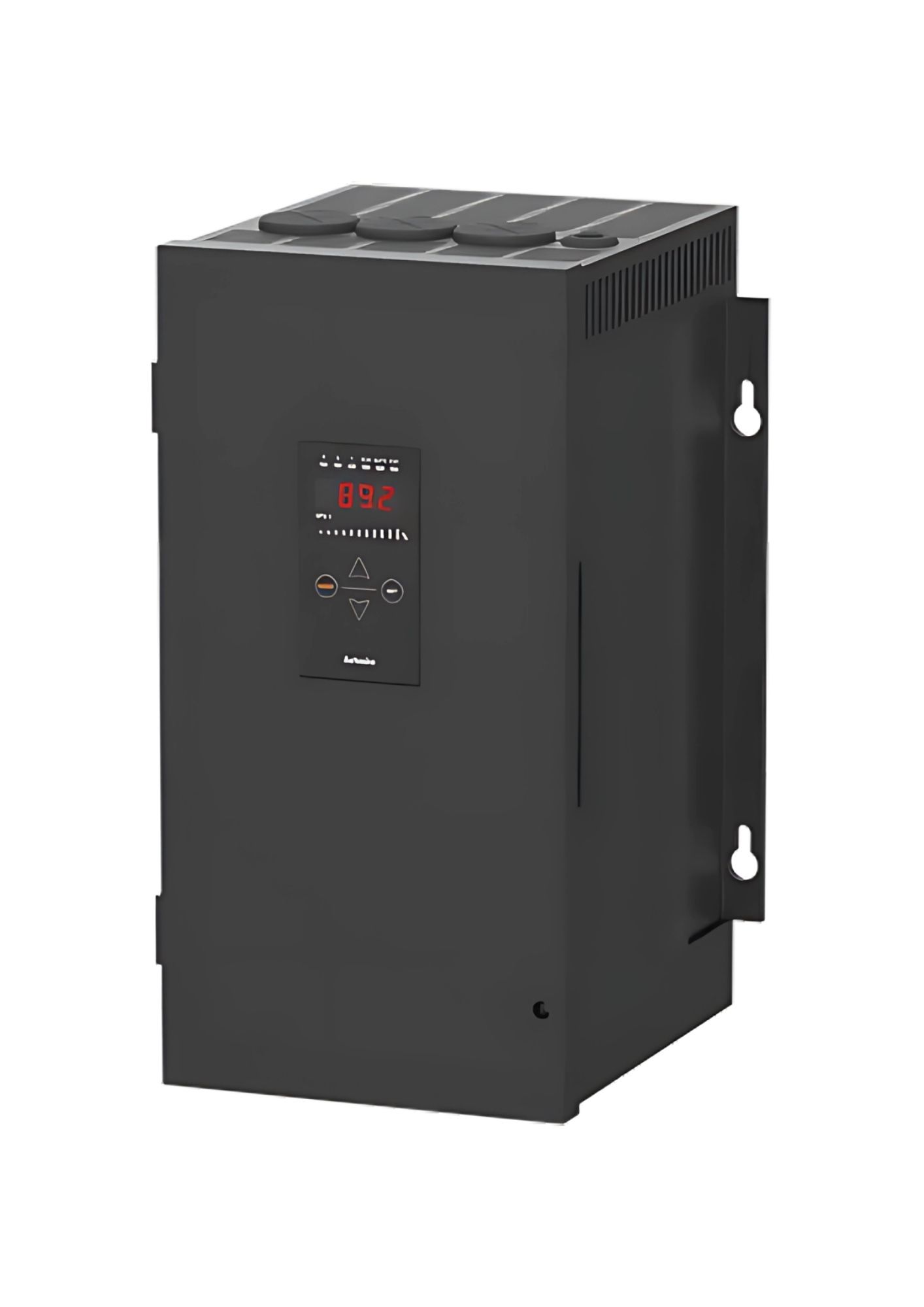

Autonics DPU34B-180D, Digital Thyristor Power Controller
Autonics DPU34B-180D, Digital Thyristor Power Controller Autonics DPU34B-180D, Digital Thyristor Power Controller

Autonics DPU34B-180D, Digital Thyristor Power Controller

In stock
SKU
DPU34B-180D
Special Price ₹86,004.05 Regular Price ₹156,371.00
(18% GST Extra)
Add to Wish List
  • Number of phase : 3-phase
  • Indicator : R, S, T indicator (green), Operation / manual control indicator (green), DI, alarm / unit (V, A) indicator (red)
  • Power supply : 440V
  • Power consumption : ≤ 60 W (control power)
  • Rated current capacity : 180A

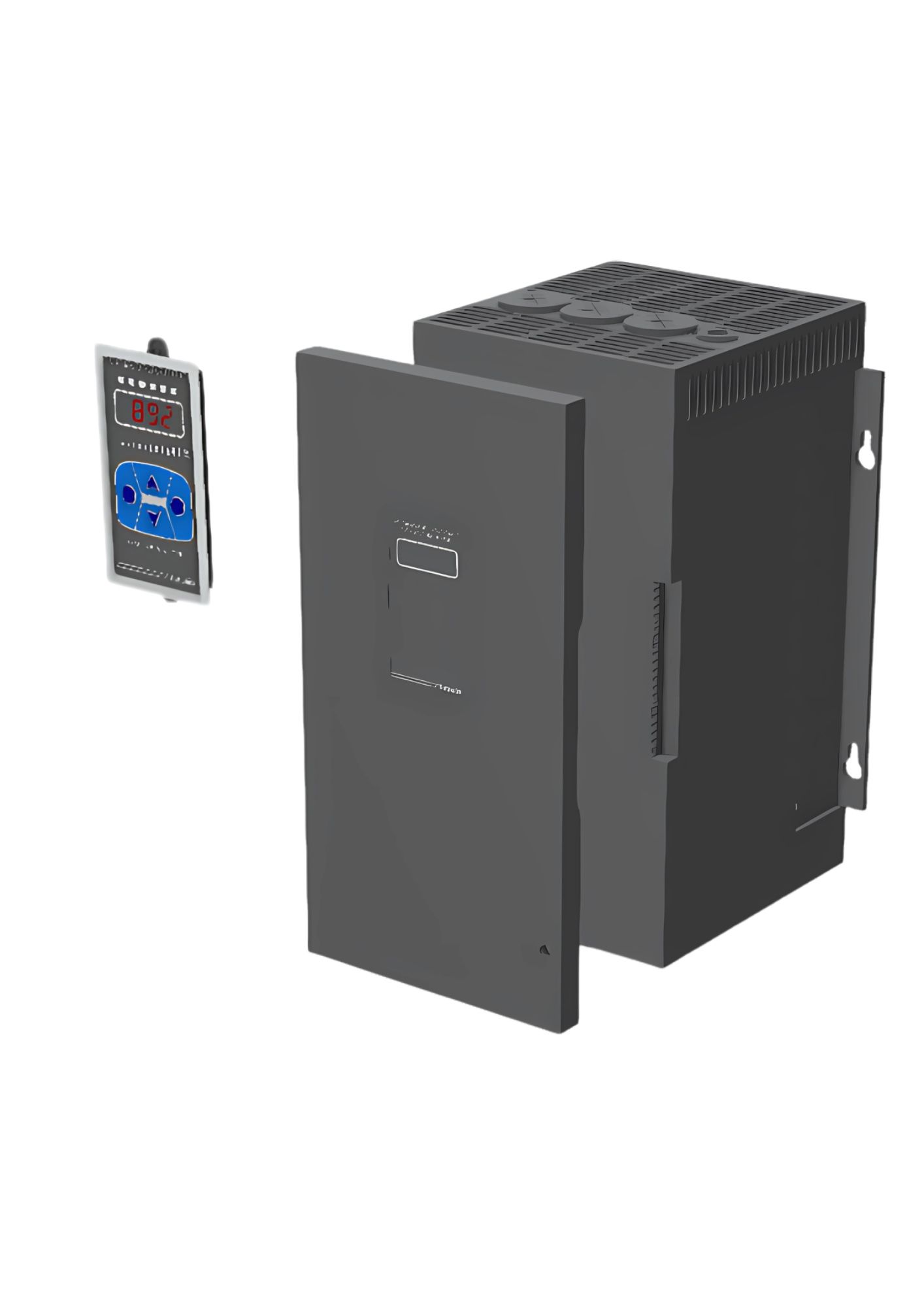

  • Option : Remote Display Unit
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Number of phase: 3-phase
  • Indicator: R, S, T indicator (green), Operation / manual control indicator (green), DI, alarm / unit (V, A) indicator (red)
  • Control input: • Auto: 4-20mA/0-20mA/0-5VDC/1-5VDC/0-10VDC/ voltage pulse(0/12VDC)/ no-voltage input (ON/OFF)/ Communication input (RS485) • Manual: inside 10kΩ VR, outside 3 to 10kΩ VR (min. 2W)
  • Control method: • Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback) • Cycle control (Z.C.): Fixed cycle control, Variable cycle control • ON/OFF control (Z.C.)
  • Load: • Phase control: resistance load, inductive load • ON/OFF, Cycle control: resistance load
  • Output range: Phase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100%
  • Power supply: 440V
  • Power consumption: ≤ 60 W (control power)
  • Rated current capacity: 180A
  • Option: Remote Display Unit
  • Environment_Ambient temperature: -10 to 50 ℃, storage: -20 to 80 ℃ (no freezing or condensation)
  • Environment_Ambient humidity: 5 to 90 %RH, storage: 5 to 90 %RH (no freezing or condensation)
  • Size: 80~200A
  • Unit weight (packaged weight): ≈ 11.5 kg (≈ 13.0 kg)
