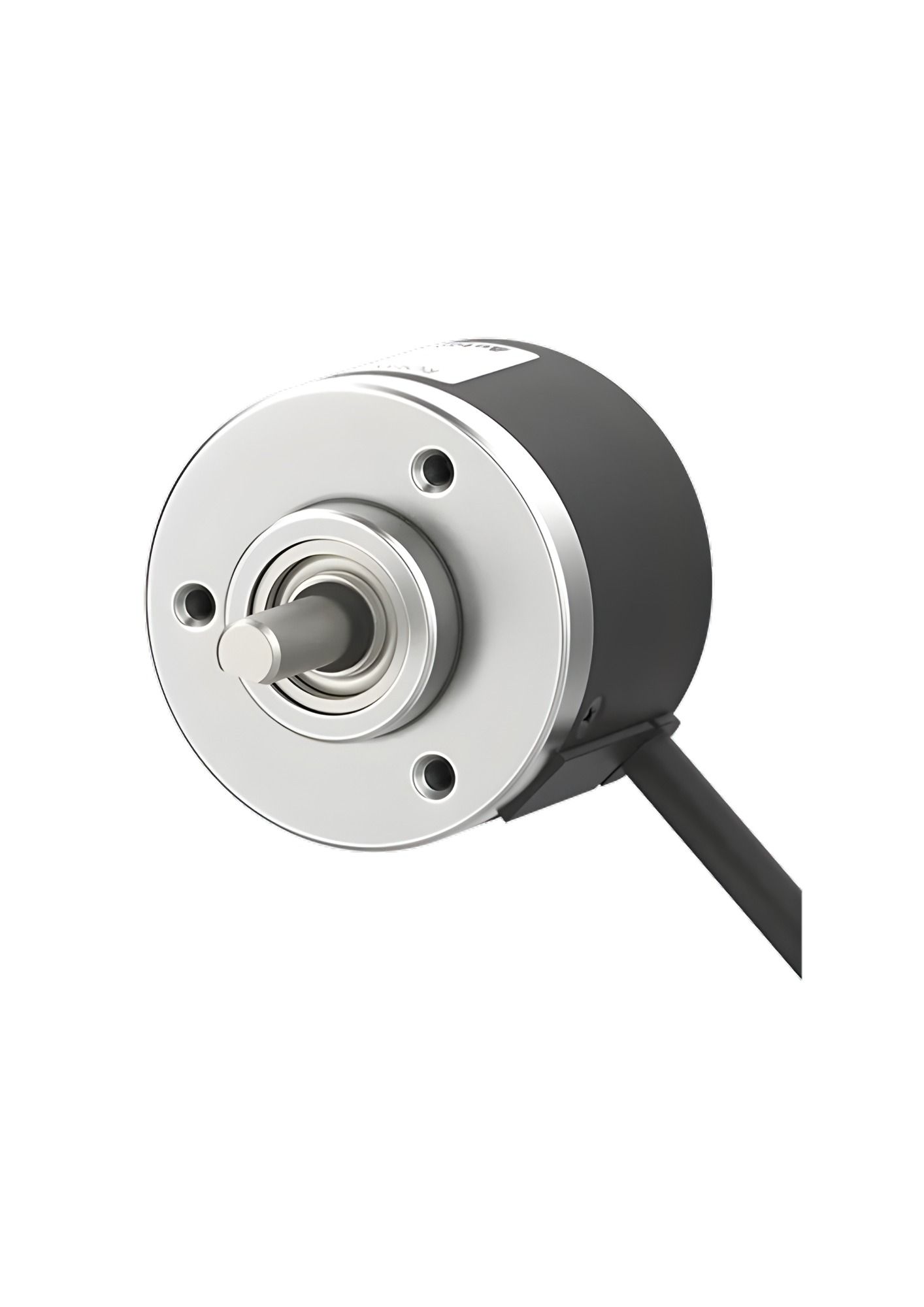

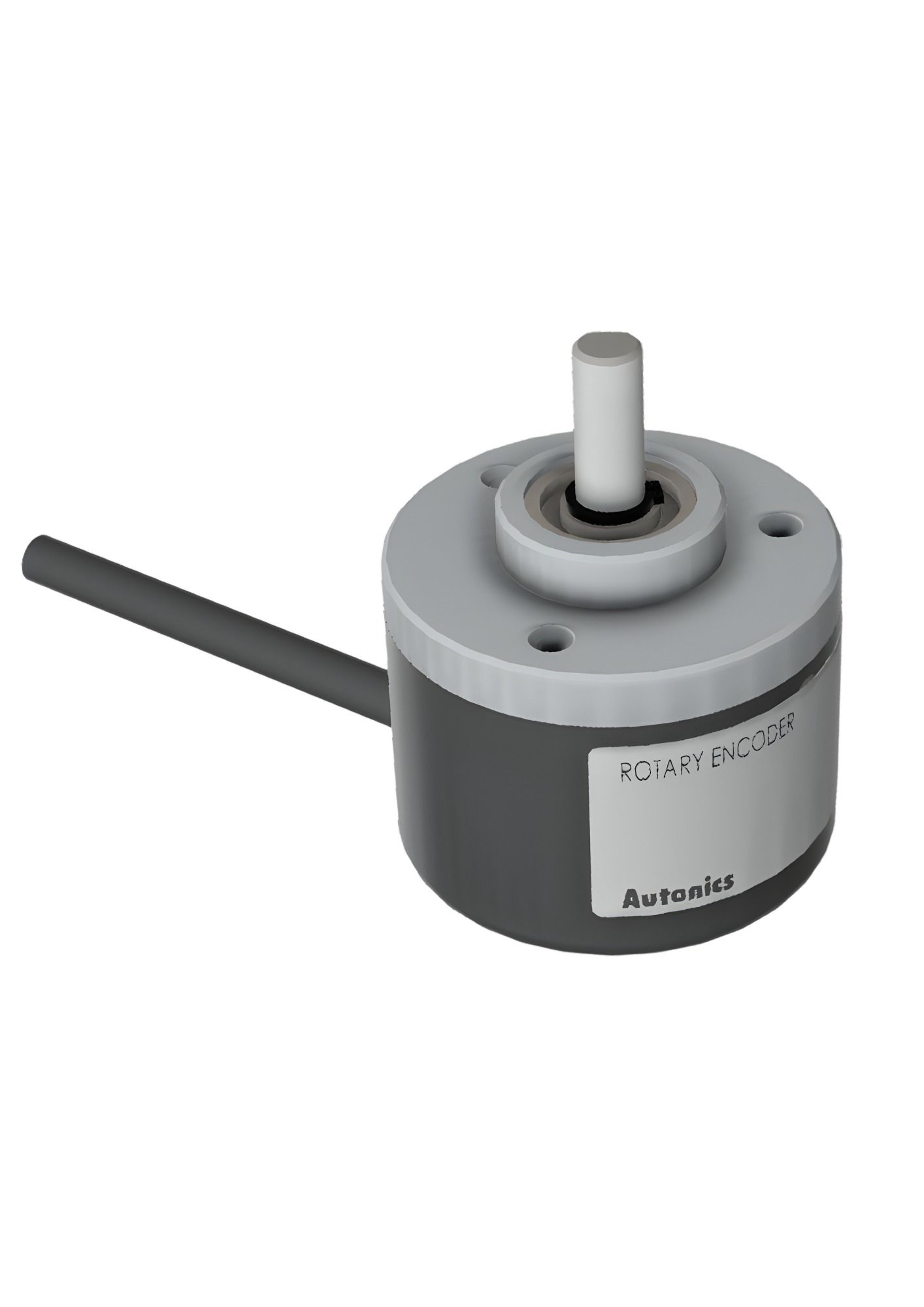

Autonics E40S6-100-3-T-24, Shaft outer diameter 6mm, Resolution 100P/R, 40mm Incremental Rotary Encoder Shaft Type
In stock
SKU
E40S6-100-3-T-24
Special Price
₹5,352.60
Regular Price
₹9,732.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Shaft outer diameter | Ø6 mm |
| Max. response frequency | 300 kHz |
| Max. allowable revolution | 5000 rpm |
| Starting torque | Max. 40 gf.cm (max. 0.00392 N.m) |
| Resolution | 100 P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power voltage | 12–24 VDC ±5% (ripple P-P: max. 5%) |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø6 mm coupling (standard), Ø8 mm coupling (sold separately) |
