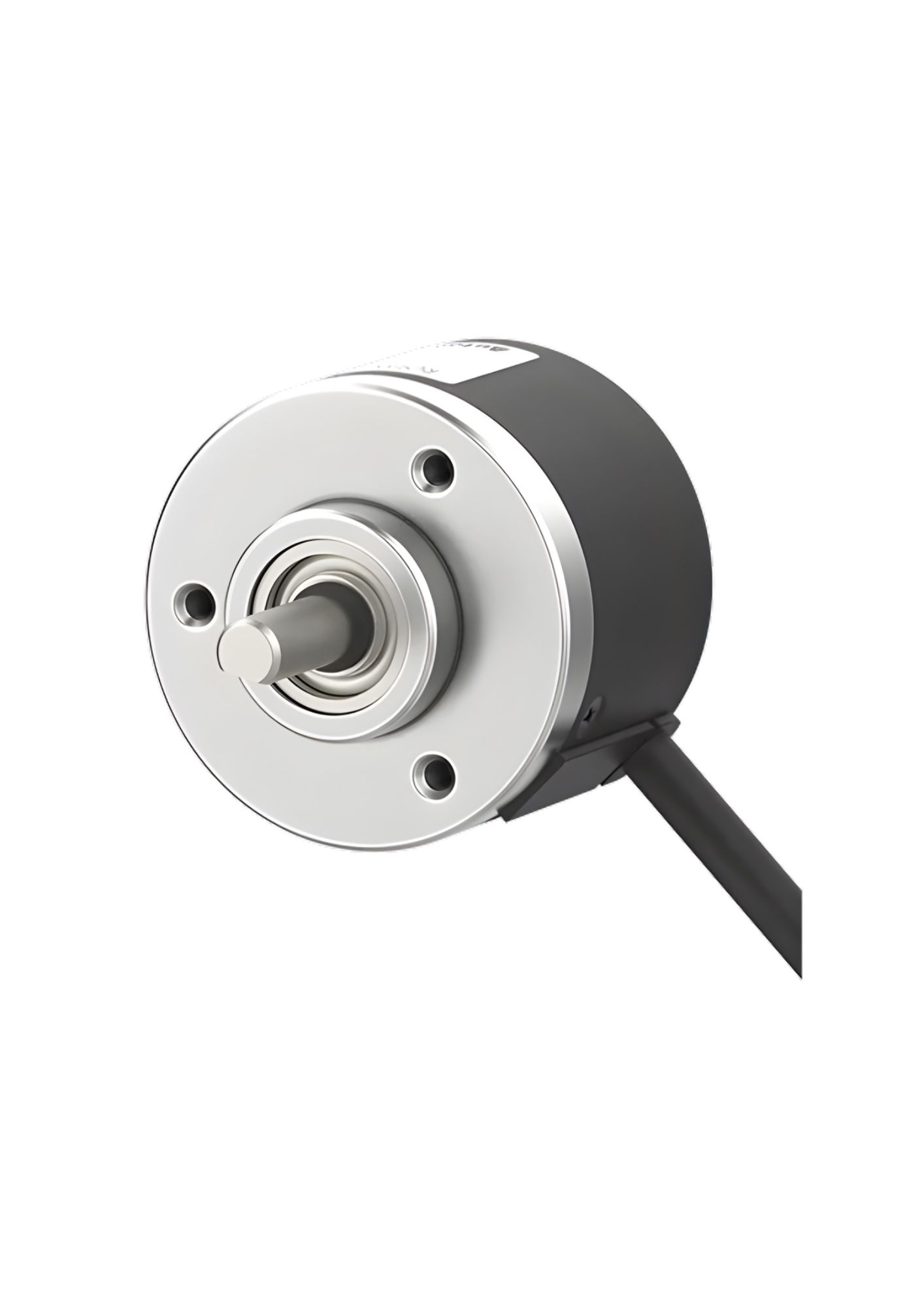

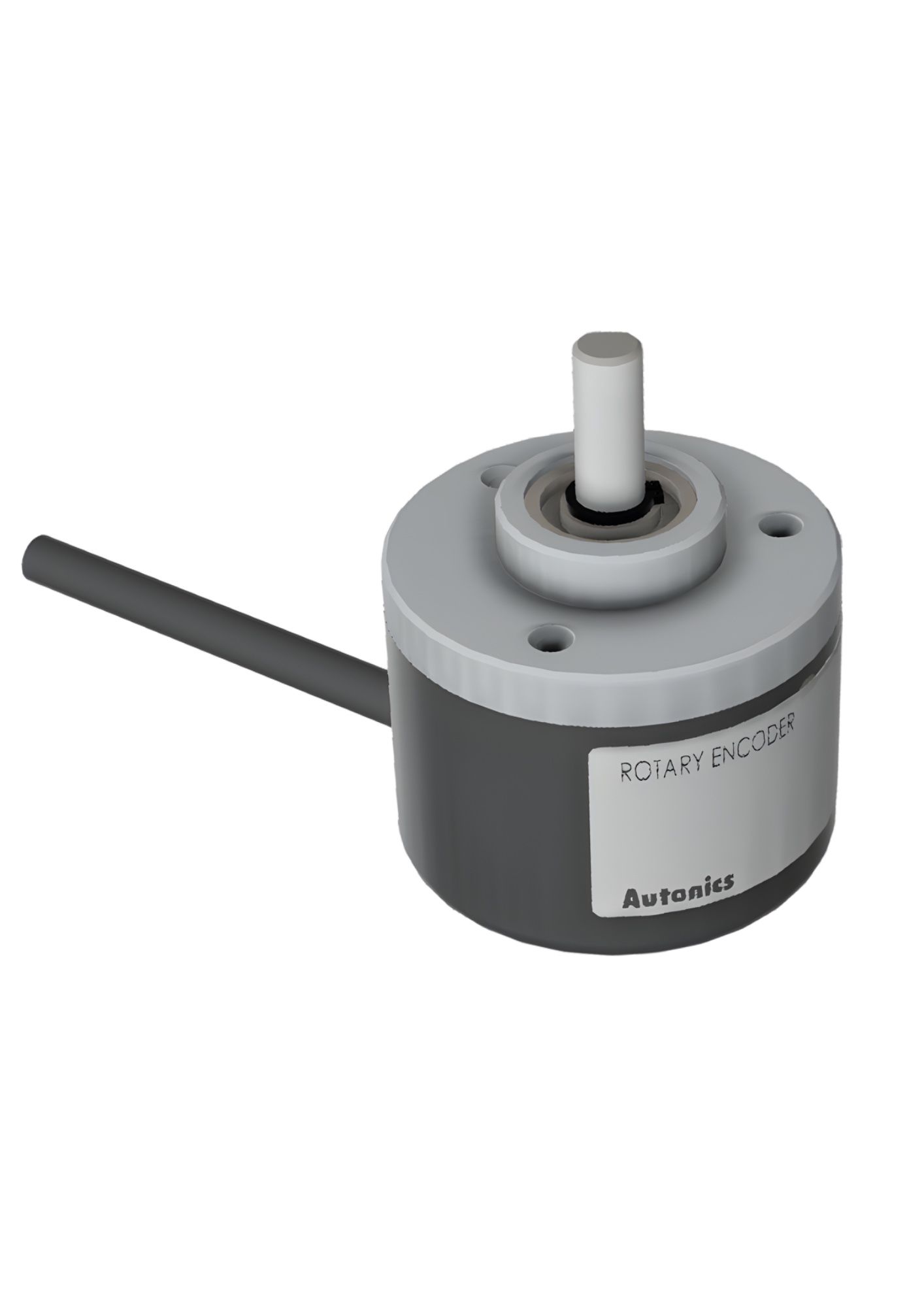

Autonics E40S6-1000-3-T-24, Shaft outer diameter 6mm, Resolution 1000P/R, 40mm Incremental Rotary Encoder Shaft Type
In stock
SKU
E40S6-1000-3-T-24
Special Price
₹5,847.05
Regular Price
₹10,631.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Shaft Outer Diameter | Ø6 mm |
| Max. Response Frequency | 300 kHz |
| Max. Allowable Revolution | 5000 rpm |
| Starting Torque | Max. 40 gf·cm (max. 0.00392 N·m) |
| Resolution | 1000 P/R |
| Output Phase | A, B, Z |
| Control Output | Totem Pole |
| Power Voltage | 12–24 VDC ±5% (Ripple P-P: max. 5%) |
| Connection Type | Radial Cable Type |
| Protection Structure | IP50 |
| Ambient Temperature | -10 to 70℃, Storage: -25 to 85℃ |
| Ambient Humidity | 35 to 85% RH, Storage: 35 to 90% RH |
| Accessories | Ø6 mm coupling standard, Ø8 mm coupling (sold separately) |
