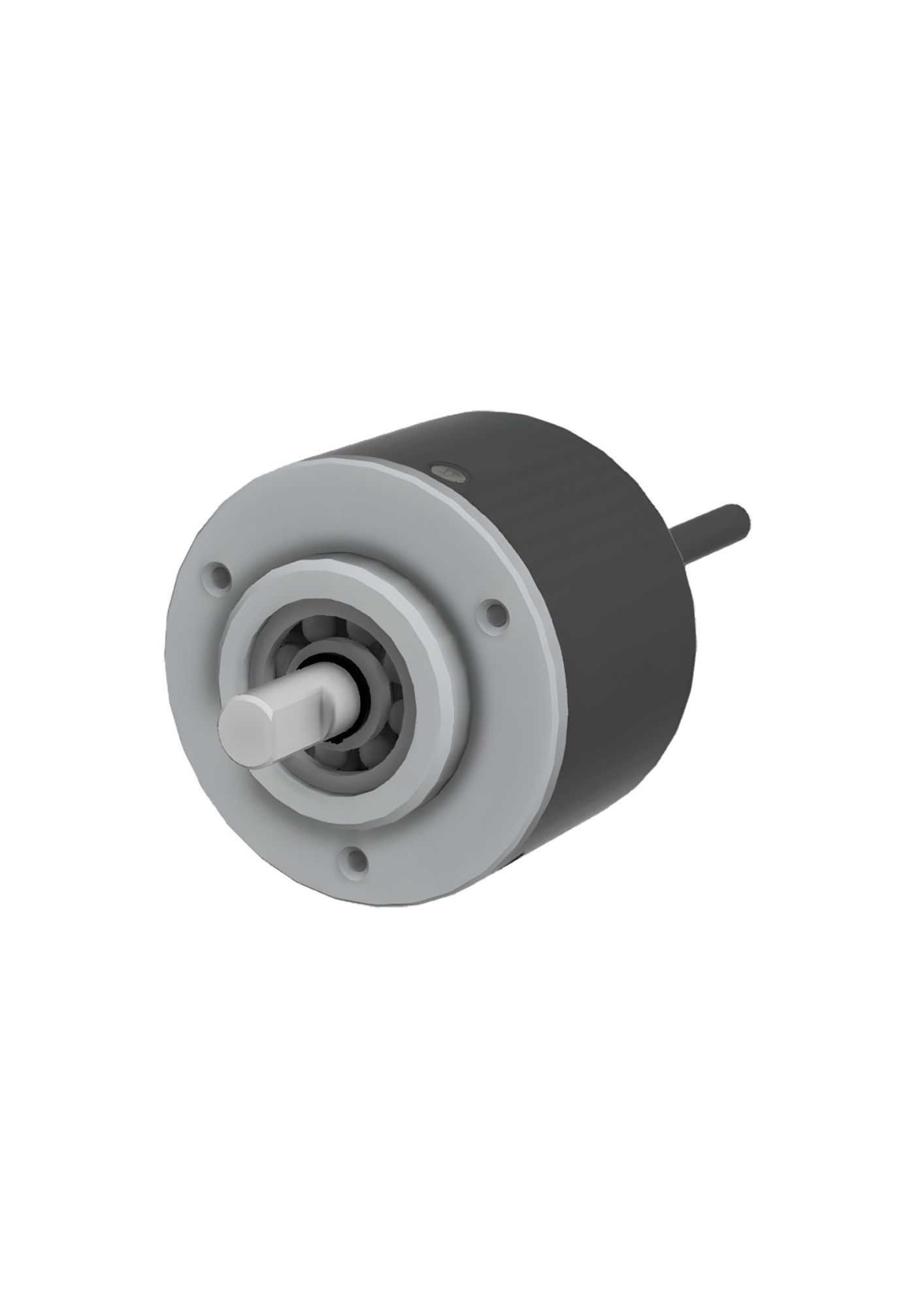

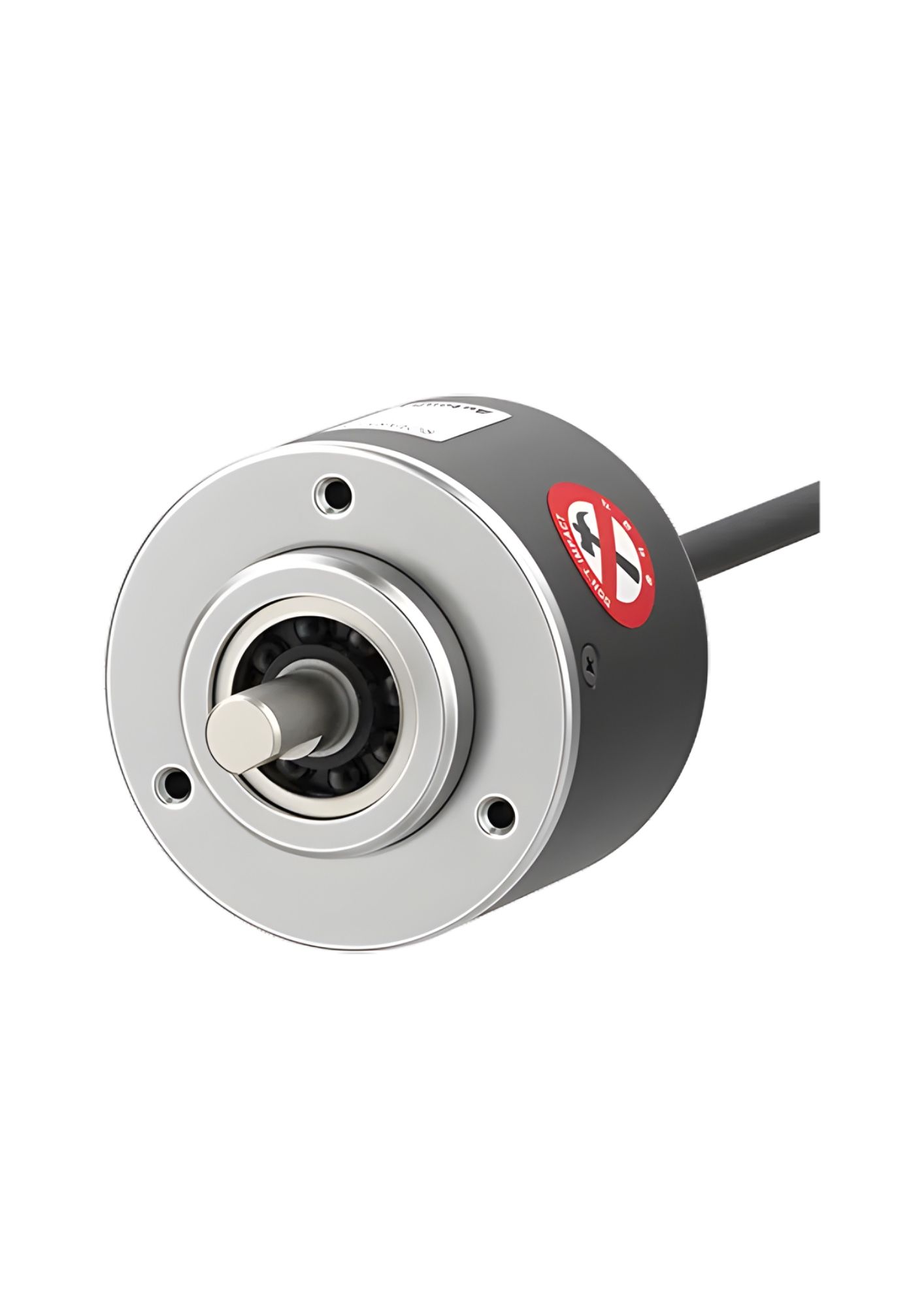

Autonics E50S8-5000-3-N-24, Shaft outer diameter 8mm, Resolution 5000P/R, 50mm Incremental Rotary Encoder Shaft Type
In stock
SKU
E50S8-5000-3-N-24
Special Price
₹8,923.75
Regular Price
₹16,225.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Shaft outer diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 70gf.cm (max. 0.00686N.m) |
| Resolution | 5000P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power voltage | 12-24VDC ±5% (ripple P-P: max. 5%) |
| Connection type | Axial cable type |
| Protection structure | IP50 (IEC standard) |
| Environment – Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment – Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø8mm coupling, Bracket |
