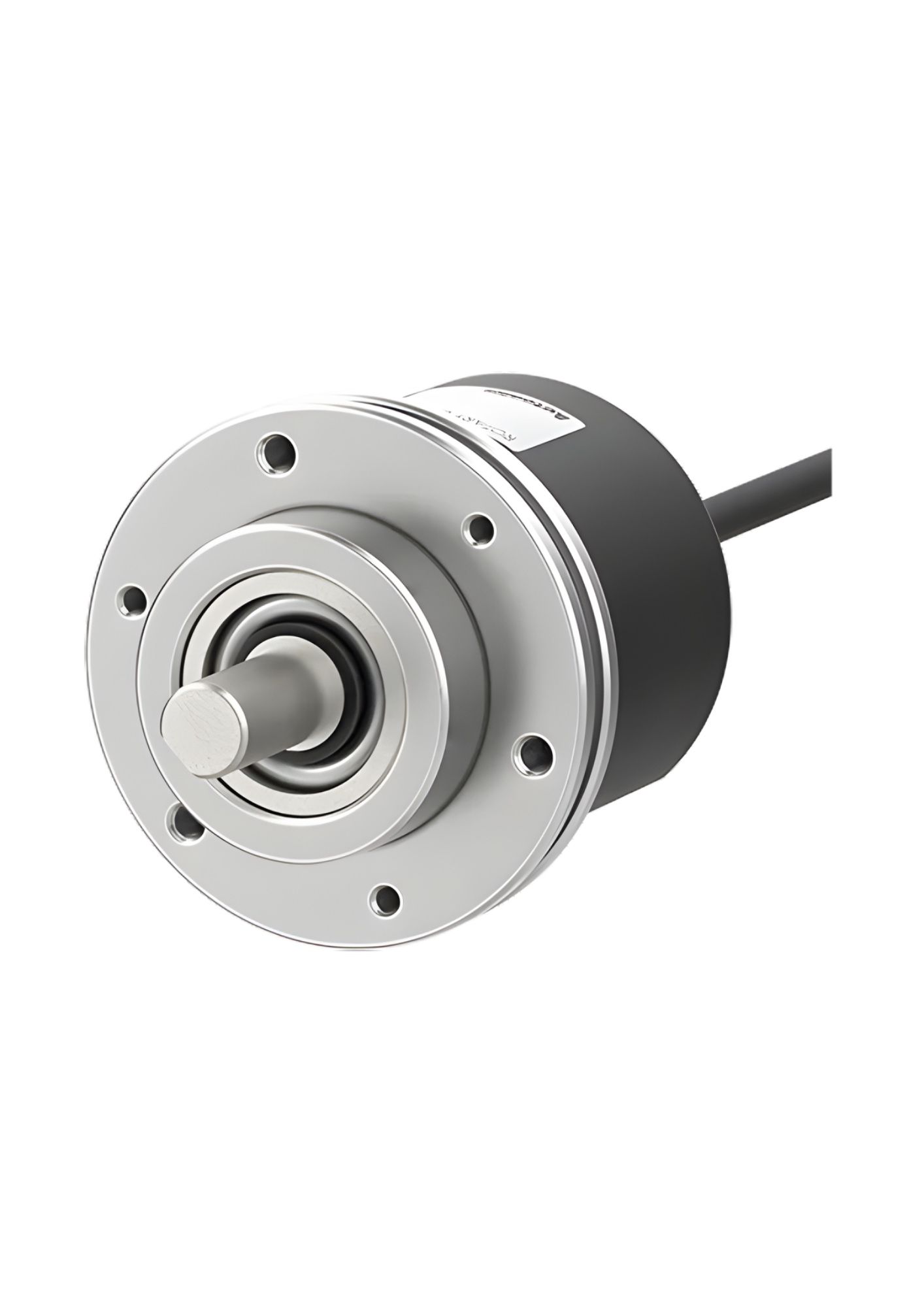

Autonics E58SC10-1024-3-T-24, Shaft outer diameter 10mm, Resolution 1024P/R, 58mm Incremental Rotary Encoder Clamping Shaft Type
In stock
SKU
E58SC10-1024-3-T-24
Special Price
₹9,393.45
Regular Price
₹17,079.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Shaft outer diameter | Ø10 mm |
| Max. response frequency | 300 kHz |
| Max. allowable revolution | 5000 rpm |
| Starting torque | Max. 40 gf·cm (max. 0.00392 N·m) |
| Resolution | 1024 P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power voltage | 12–24 VDC ±5% (ripple P-P: max. 5%) |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |

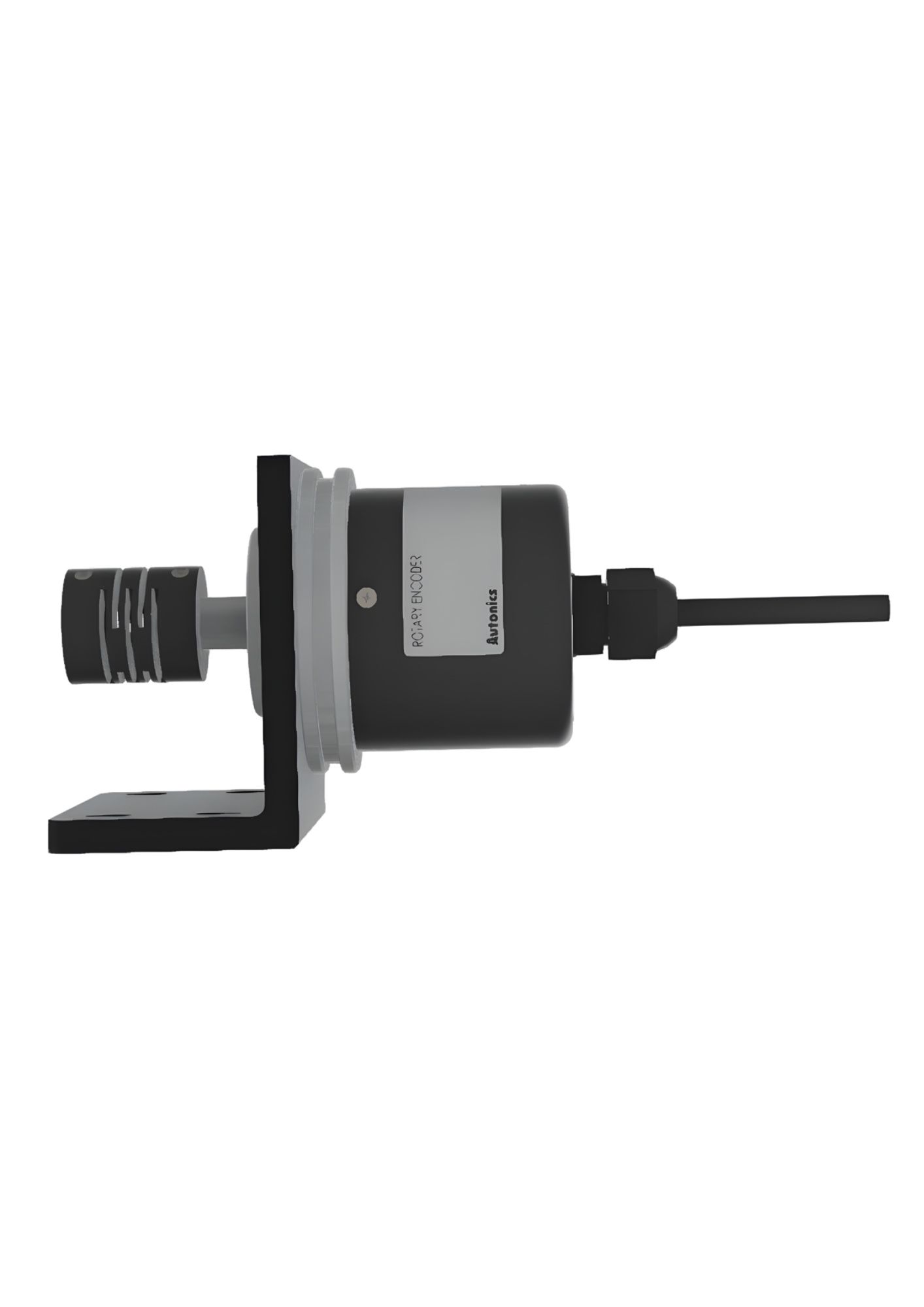

| Accessories | Ø10 mm coupling, Bracket |
