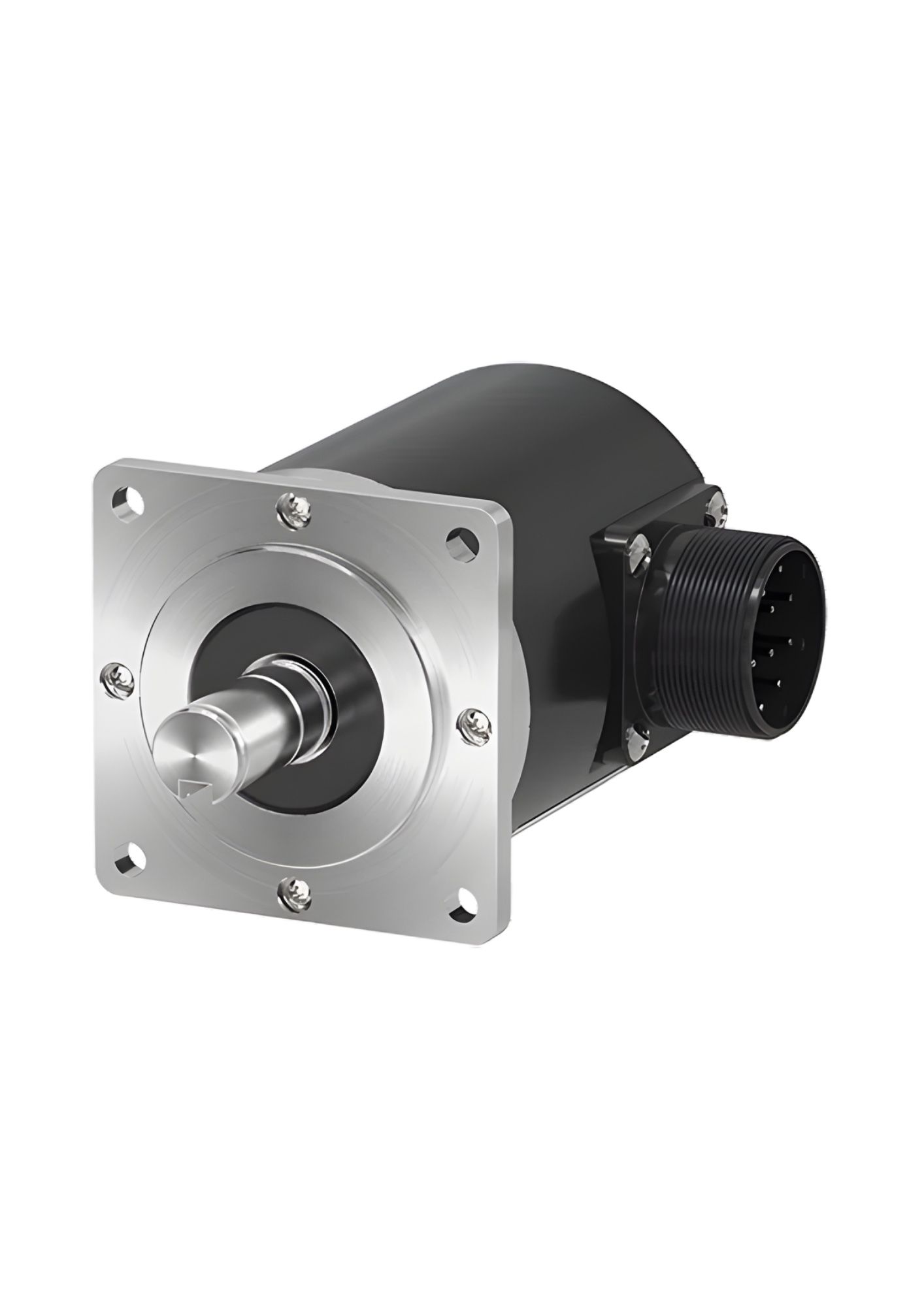

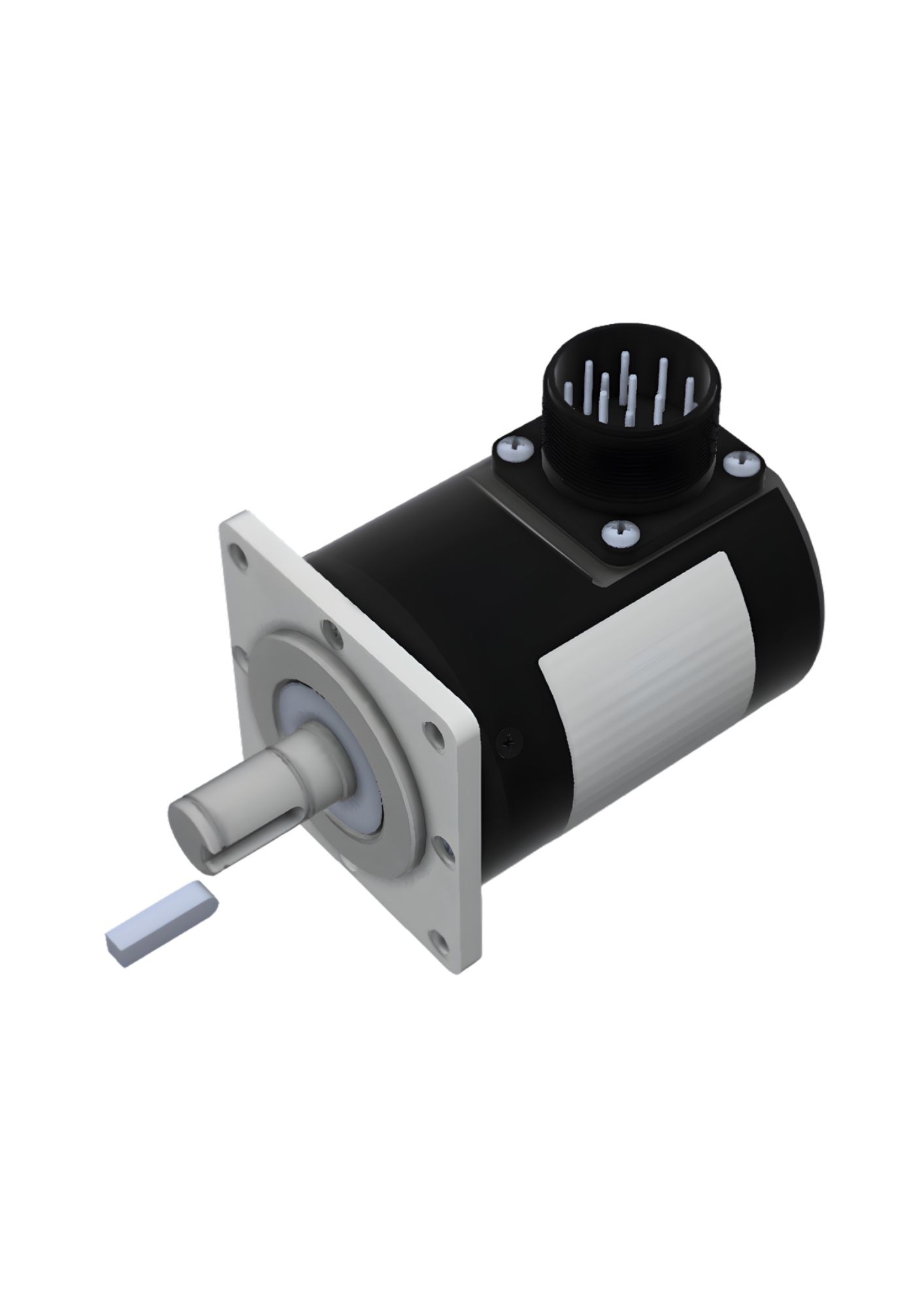

Autonics E68S15-1024-6-L-5, Shaft outer diameter 15mm, Resolution 1024P/R, 68mm Incremental Rotary Encoder Shaft Type
In stock
SKU
E68S15-1024-6-L-5
Special Price
₹14,337.95
Regular Price
₹26,069.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Shaft outer diameter | Ø15 mm |
| Max. response frequency | 180 kHz |
| Max. allowable revolution | 6500 rpm |
| Starting torque | Max. 1.5 kgf·cm (max. 0.147 N·m) |
| Resolution | 1024 P/R |
| Output phase | A, A̅, B, B̅, Z, Z̅ |
| Control output | Line Driver |
| Power voltage | 5 VDC ±5% (ripple P-P: max. 5%) |
| Connection type | Radial connector type |
| Protection structure | IP65 |
| Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
