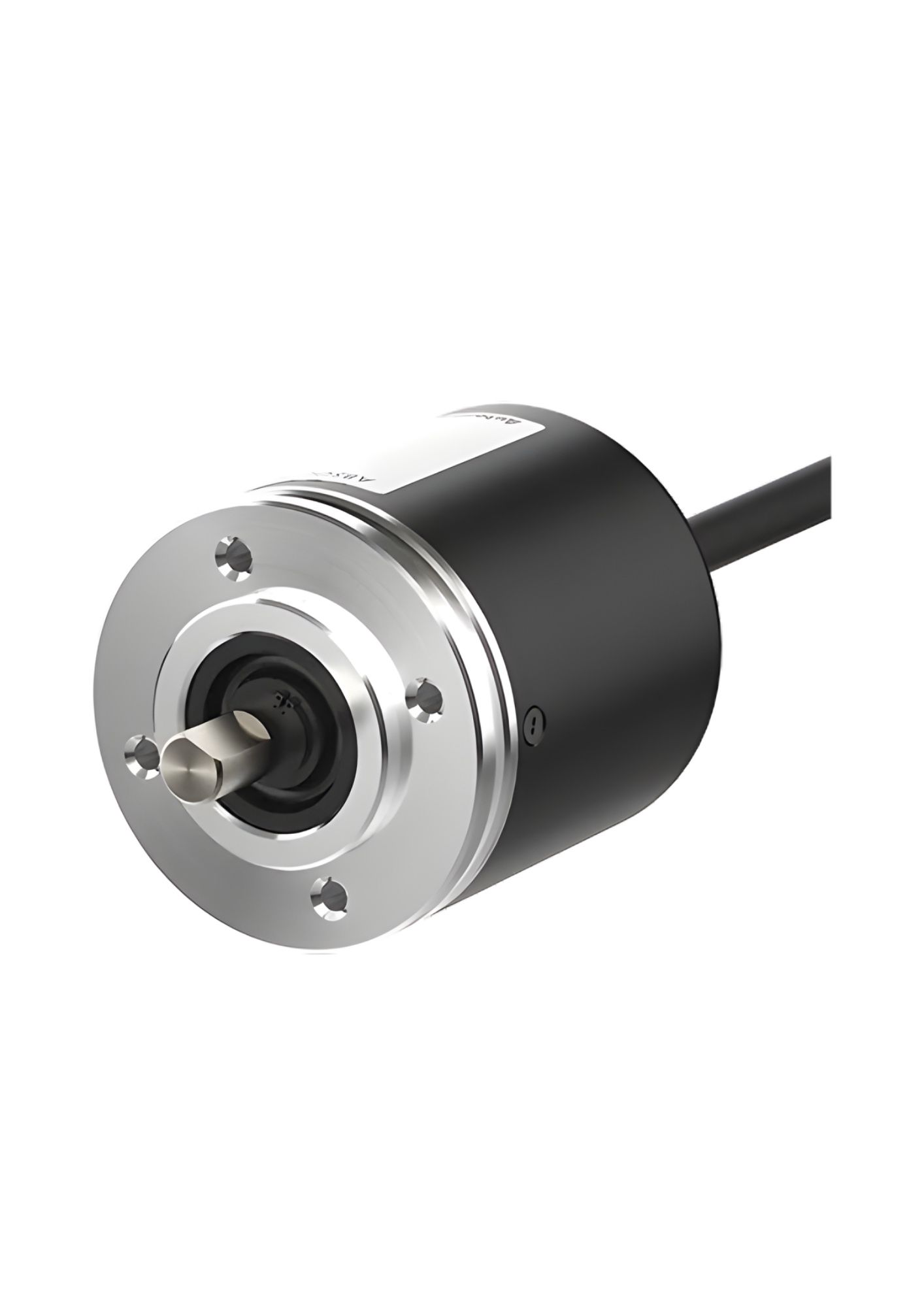

Autonics EP50S8-1024-2F-P-24, Resolution 1024P/R, Output code Binary Code, 50mm Single-Turn Absolute Rotary Encoder Shaft Type
Autonics EP50S8-1024-2F-P-24, Resolution 1024P/R, Output code Binary Code, 50mm Single-Turn Absolute Rotary Encoder Shaft Type Autonics EP50S8-1024-2F-P-24, Resolution 1024P/R, Output code Binary Code, 50mm Single-Turn Absolute Rotary Encoder Shaft Type Autonics EP50S8-1024-2F-P-24, Resolution 1024P/R, Output code Binary Code, 50mm Single-Turn Absolute Rotary Encoder Shaft Type Autonics EP50S8-1024-2F-P-24, Resolution 1024P/R, Output code Binary Code, 50mm Single-Turn Absolute Rotary Encoder Shaft Type

Autonics EP50S8-1024-2F-P-24, Resolution 1024P/R, Output code Binary Code, 50mm Single-Turn Absolute Rotary Encoder Shaft Type

Be the first to review this product
In stock
SKU
EP50S8-1024-2F-P-24
Special Price ₹8,605.85 Regular Price ₹15,647.00
(18% GST Extra)
Add to Wish List
  • Resolution: 1024P/R
  • Output code: Binary Code
  • Control output: PNP open collector
  • Connection: Axial cable type
  • Power voltage: 12–24VDC ±5% (ripple P-P: max. 5%)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Details
Resolution 1024P/R
Output code Binary Code
Control output PNP open collector
Max. response frequency 35kHz
Max. allowable revolution 3000rpm
Starting torque Max. 70gf.cm (max. 0.0069N.m)
Connection Axial cable type
Power voltage 12–24VDC ±5% (ripple P-P: max. 5%)
Current consumption ≤ 100 mA (no load)
Insulation resistance ≥ 100 MΩ (500 VDC megger)
Ambient temperature -10 to 70℃, storage: -25 to 85℃
Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
Protection structure IP65 (IEC standard)
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:Autonics EP50S8-1024-2F-P-24, Resolution 1024P/R, Output code Binary Code, 50mm Single-Turn Absolute Rotary Encoder Shaft Type
Your Rating
Downloads
document EP50S8-1024-2F-P-24 Datasheet (291.50 kB)
document EP50S8-1024-2F-P-24 Instruction Manual (206.22 kB)
