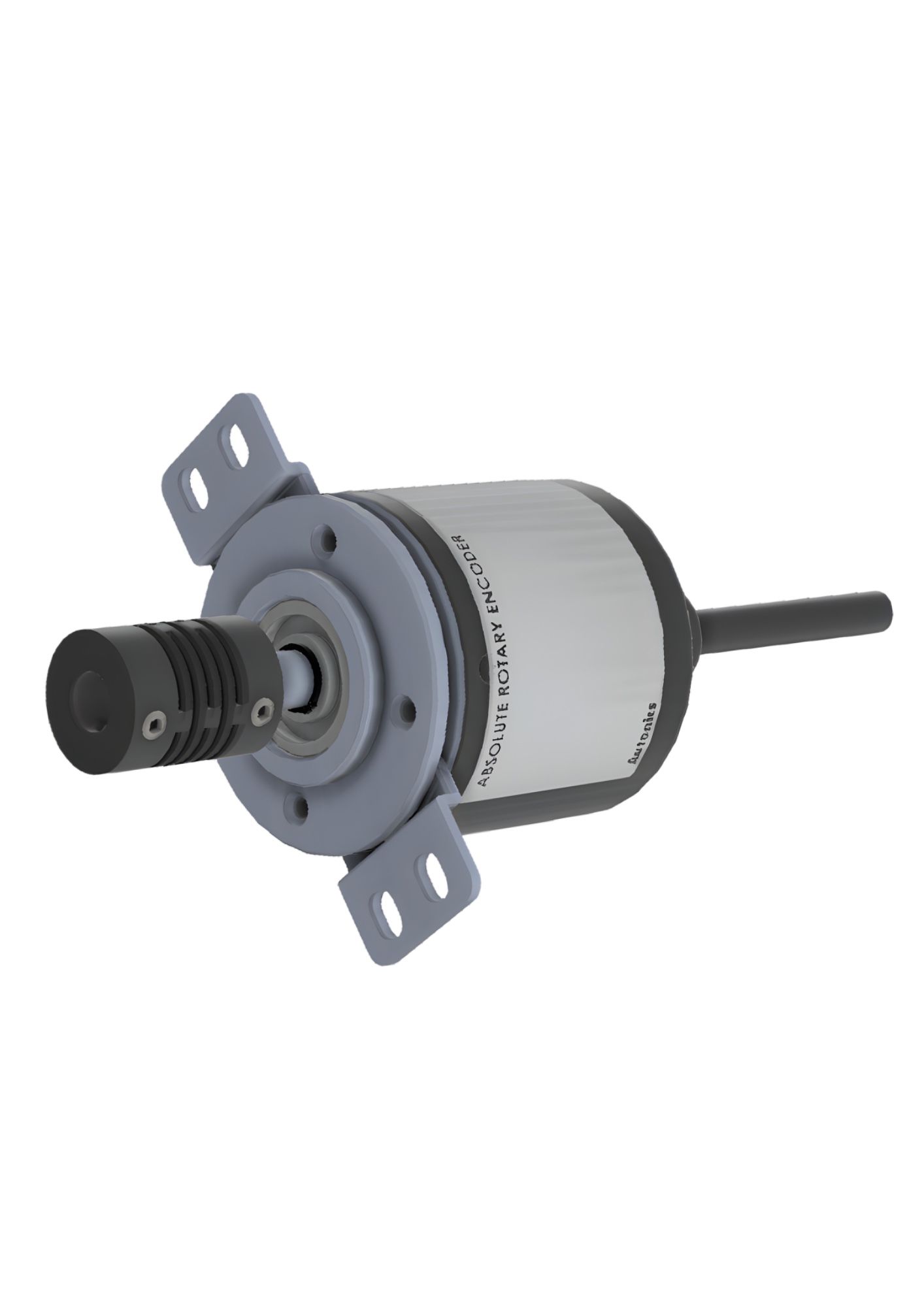

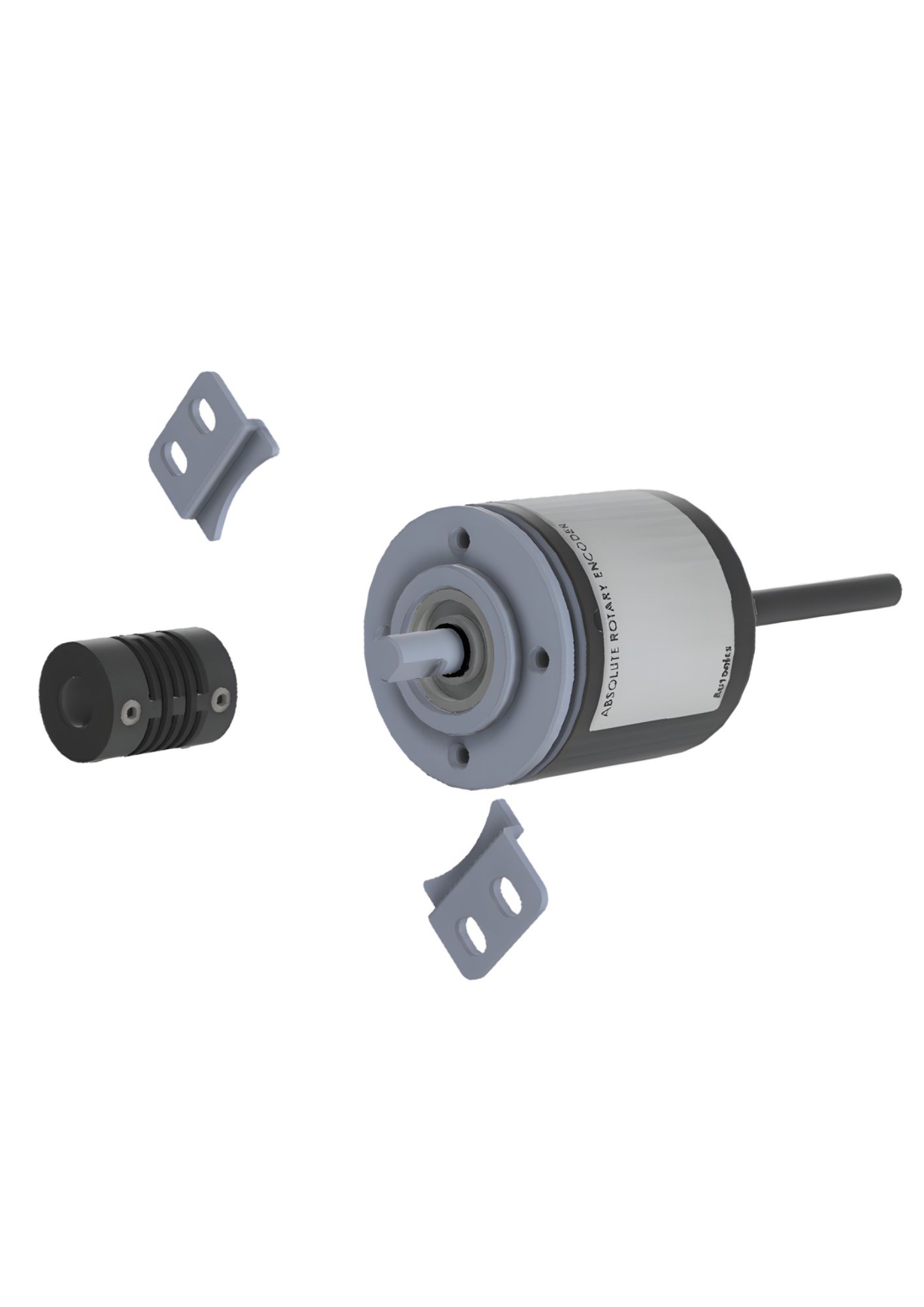

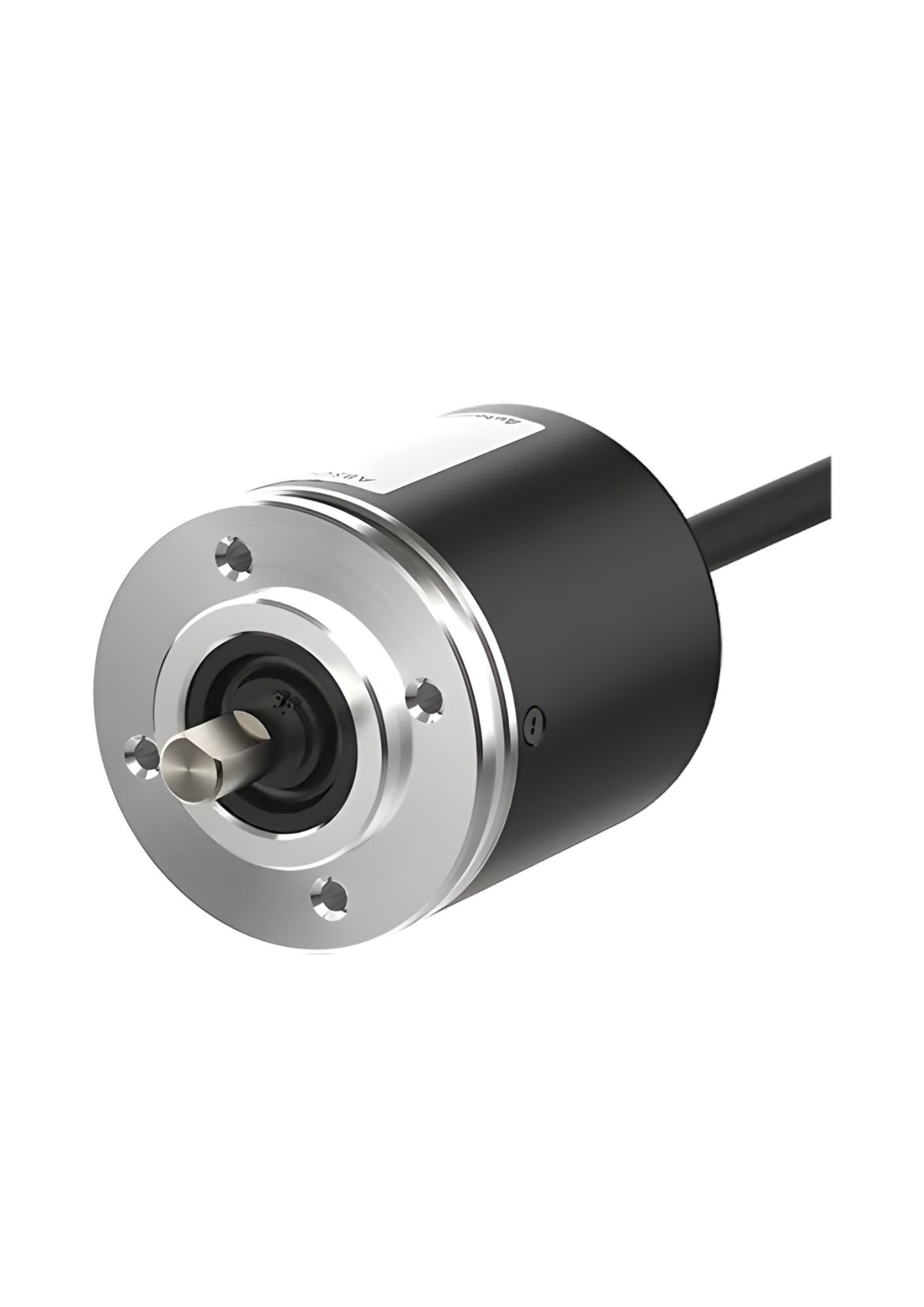

Autonics EP50S8-360-1F-N-24, Resolution 360P/R, Output code BCD Code, 50mm Single Turn Absolute Rotary Encoder Shaft Type
In stock
SKU
EP50S8-360-1F-N-24
Special Price
₹8,605.85
Regular Price
₹15,647.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Details | |
|---|---|
| Resolution | 360P/R |
| Output code | BCD Code |
| Control output | NPN open collector |
| Max. response frequency | 35kHz |
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 70gf.cm (max. 0.0069N.m) |
| Connection | Axial cable type |
| Power voltage | 12–24VDC ±5% (ripple P-P: max. 5%) |
| Current consumption | ≤ 100 mA (no load) |
| Insulation resistance | ≥ 100 MΩ (500 VDC megger) |
| Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Protection structure | IP65 (IEC standard) |
