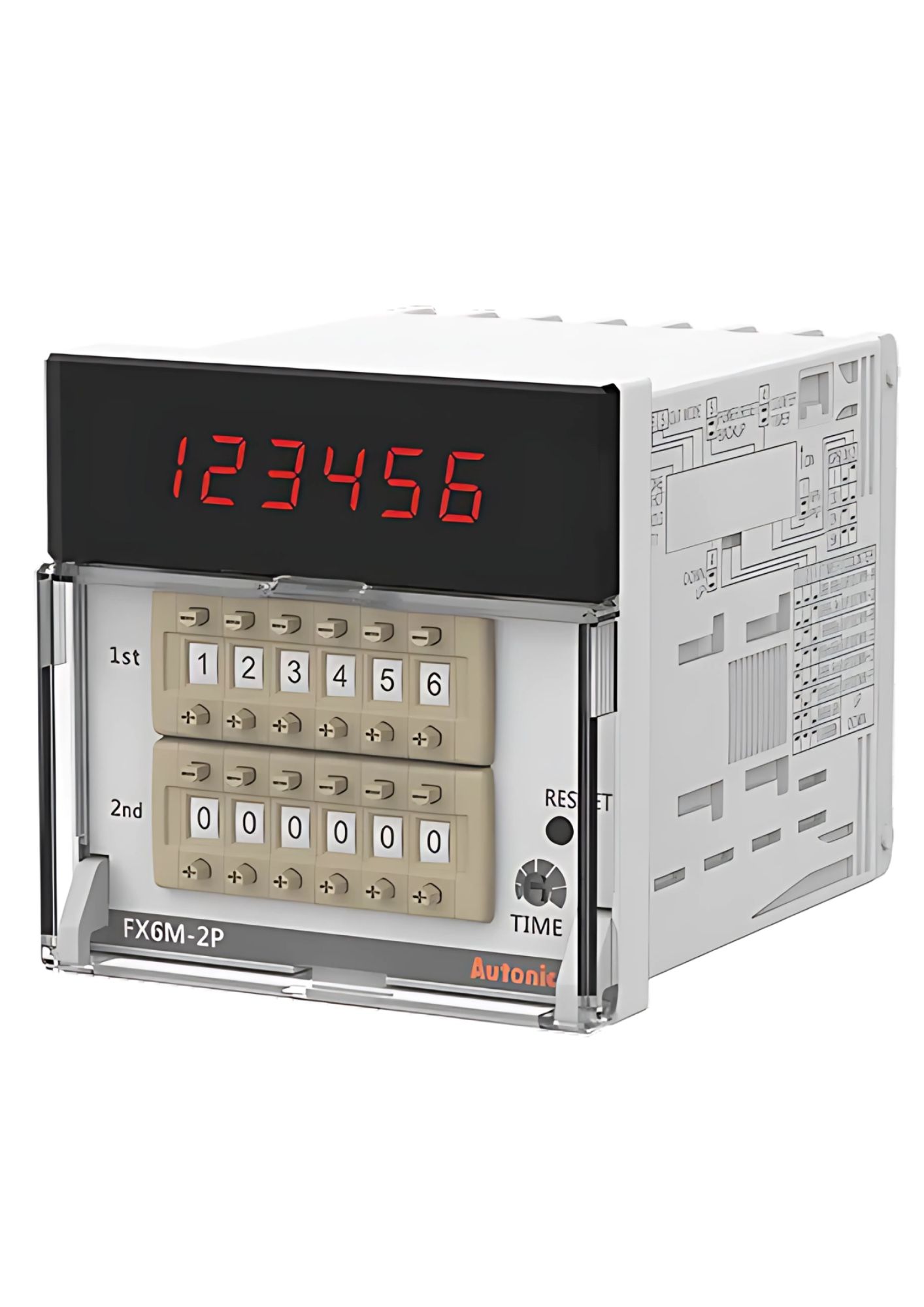

Autonics FX6M-2P4, Standard Digital Counter + Timer, 6-digit 7-segment LED, Panel Mount
In stock
SKU
FX6M-2P4
Special Price
₹7,271.00
Regular Price
₹13,220.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Display method:6-digit 7-segment LED
- Operation method:Counter: Count up, Count down, Count up/down, Timer: Count up, Count down
- Terminal: Terminal block
- Output Operation: POWER ON DELAY, FLICKER
- Power supply: 100-240VAC~ 50/60Hz
- Time operation:POWER ON START
- External Power Supply:Max. 12VDC ±10% 50mA
- Signal Input Method:Voltage input(PNP), No-voltage input(NPN)
- Max. Counting Speed: 1, 30, 2k, 5k [cps]
- Min. signal Width:20ms
- Memory Protection:Approx. 10 years
- Setting range:0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
- Control output_Type:2-stage preset
- Control output_Relay:SPDT (1c): 2
- Protection structure:IP20(front panel)
- Control output_NPN open collector:2
- Environment_Ambient temperature:-10 to 55℃, storage: -25 to 65℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Weight: Approx. 265g (approx. 200g)
