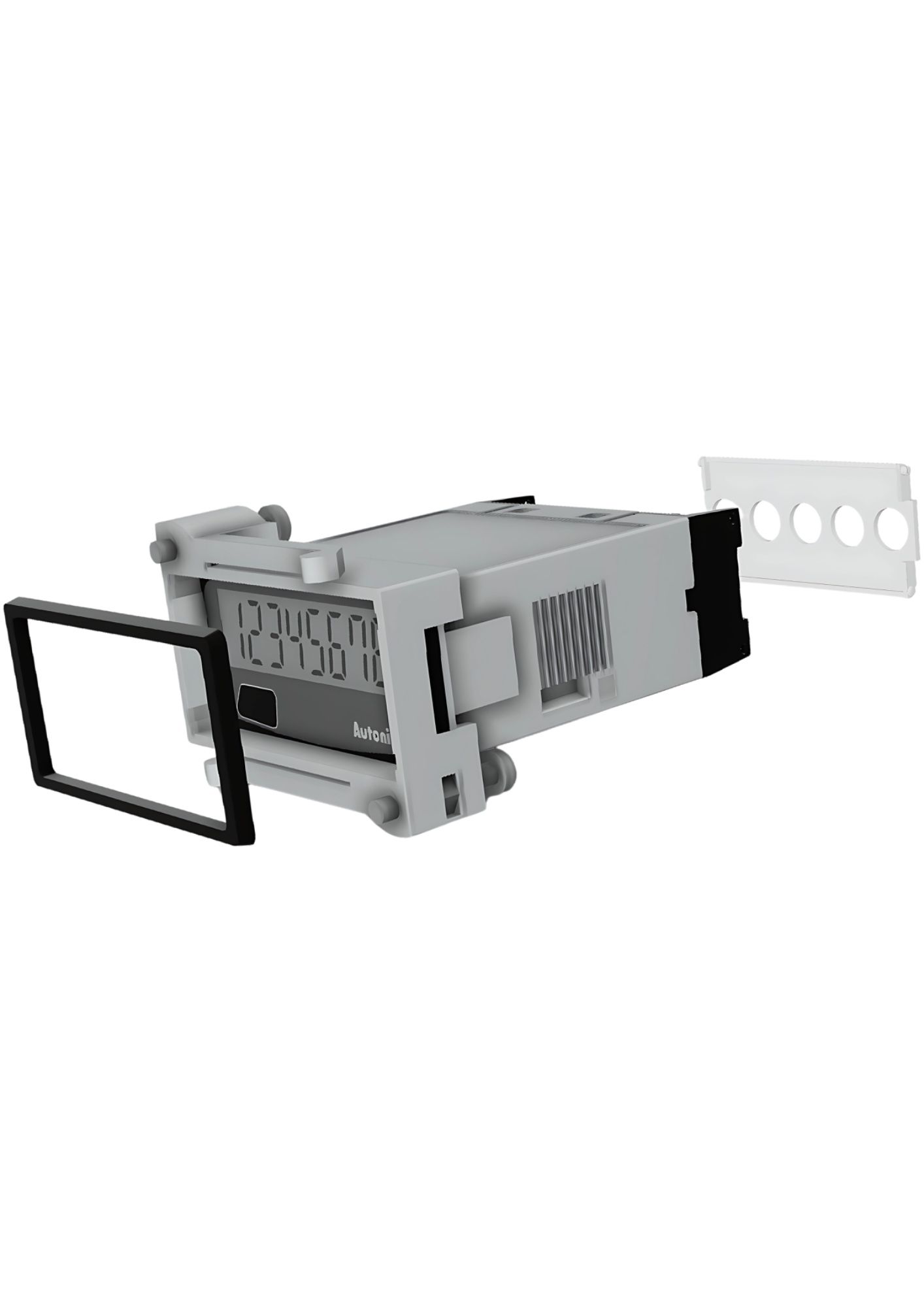

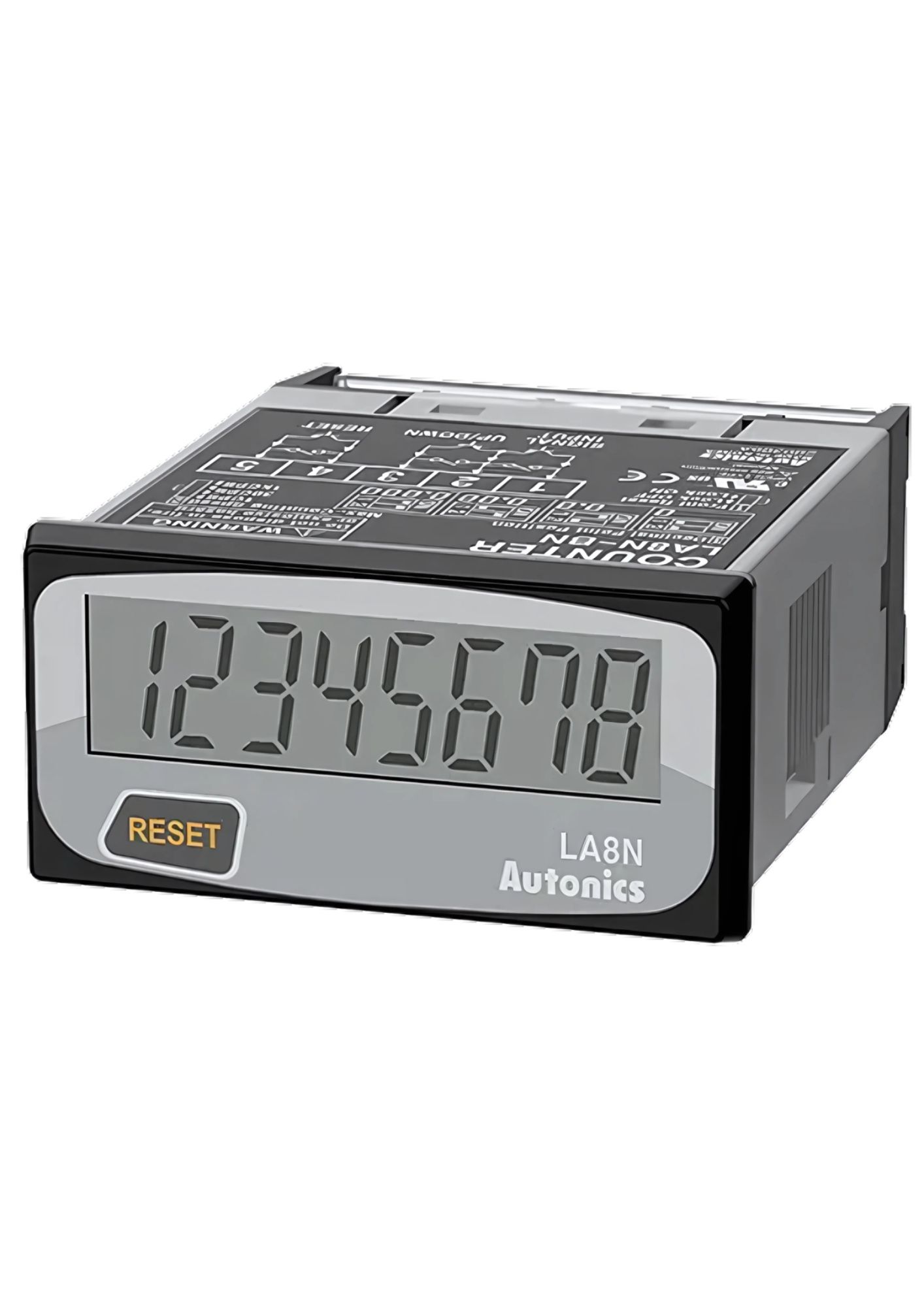

Autonics LA8N-BF, Compact 8-digit 7-segment LCD Digital Counter, with built in battery, Panel Mount
In stock
SKU
LA8N-BF
Special Price
₹2,230.25
Regular Price
₹4,055.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Display digits: 8-digit
- Display method:LCD Zero Blanking (character size: W 3.4 × H 8.7 mm)
- Max. counting speed:20 cps
- Operation method: Count up
- Counting range: 0 to 99999999
- Input method: Free voltage input
- Counting input (H):24 - 240 VAC~/ 6 - 240 VDC~
- Counting input (L): 0 - 2 VAC~/ 0 - 2.4 VDC~
- RESET input: No-voltage input
- Min. signal width(RESET): ≈ 20 ms
- Unit weight (packaged):≈ 50g (≈ 96g)
- Power supply: Built-in battery (CR2477)
- Battery life cycle: ≳ 7 years (at ≈ 20℃)
- Backlight power: 24 VDC~ ± 10 %
- Insulation resistance: ≥ 100 MΩ (500 VDC~ megger)
- Dielectric strength: 2,000 VAC~ 60 Hz for 1 min
- Vibration:0.75 mm double amplitude at frequency of 10 to 55Hz (for 1 minute) in each X,Y,Z direction for 1 hour
- Shock:300 m/s2 (≈ 30G) in each X, Y, Z direction for 3 times
- Ambient temp.: -10 to 55℃, storage: -25 to 65℃ (no freezing or condensation)
- Ambient humi.:35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation)
- Protection rating: IP66 (front part, when using the rubber waterproof ring, IEC standard)
