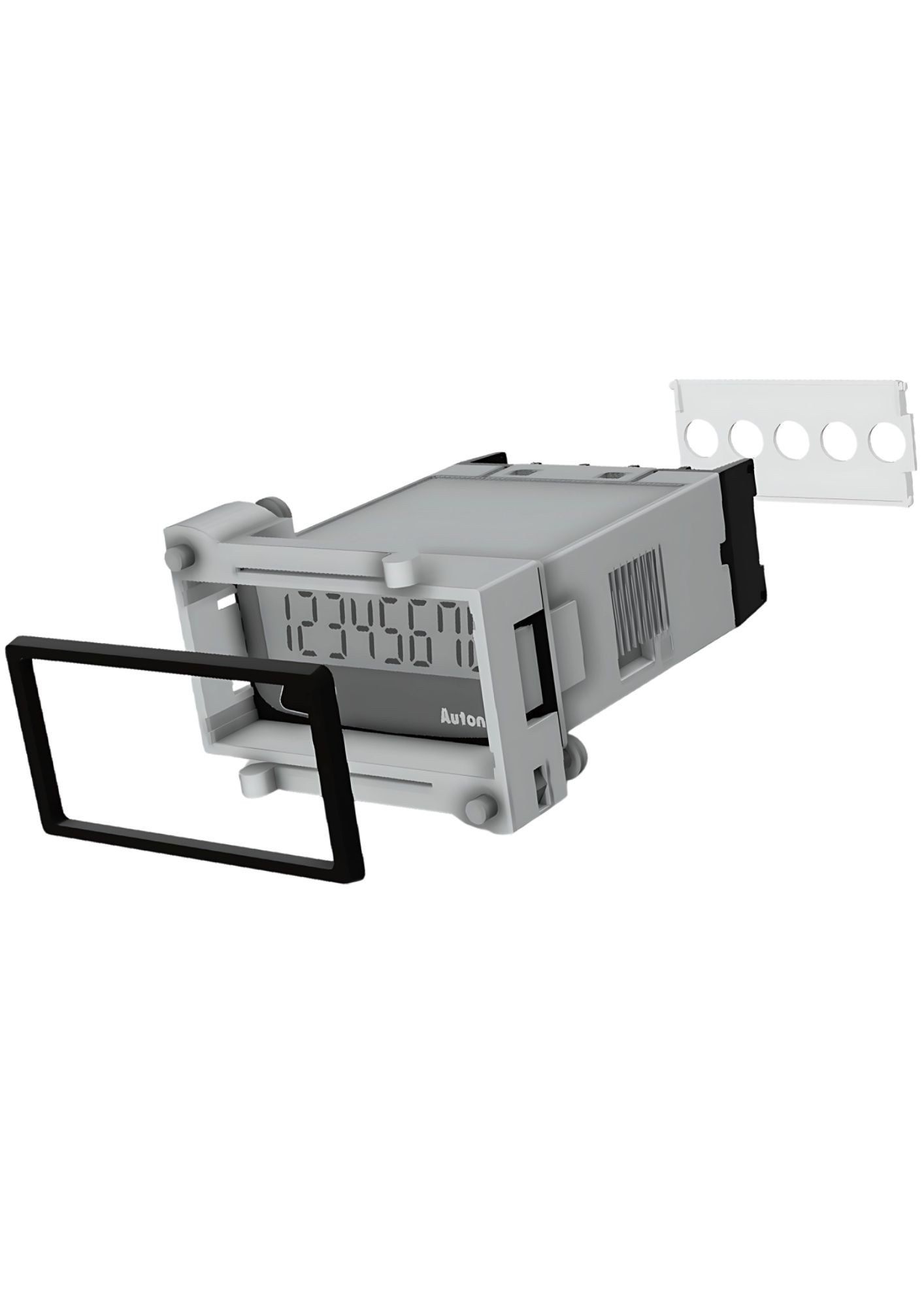

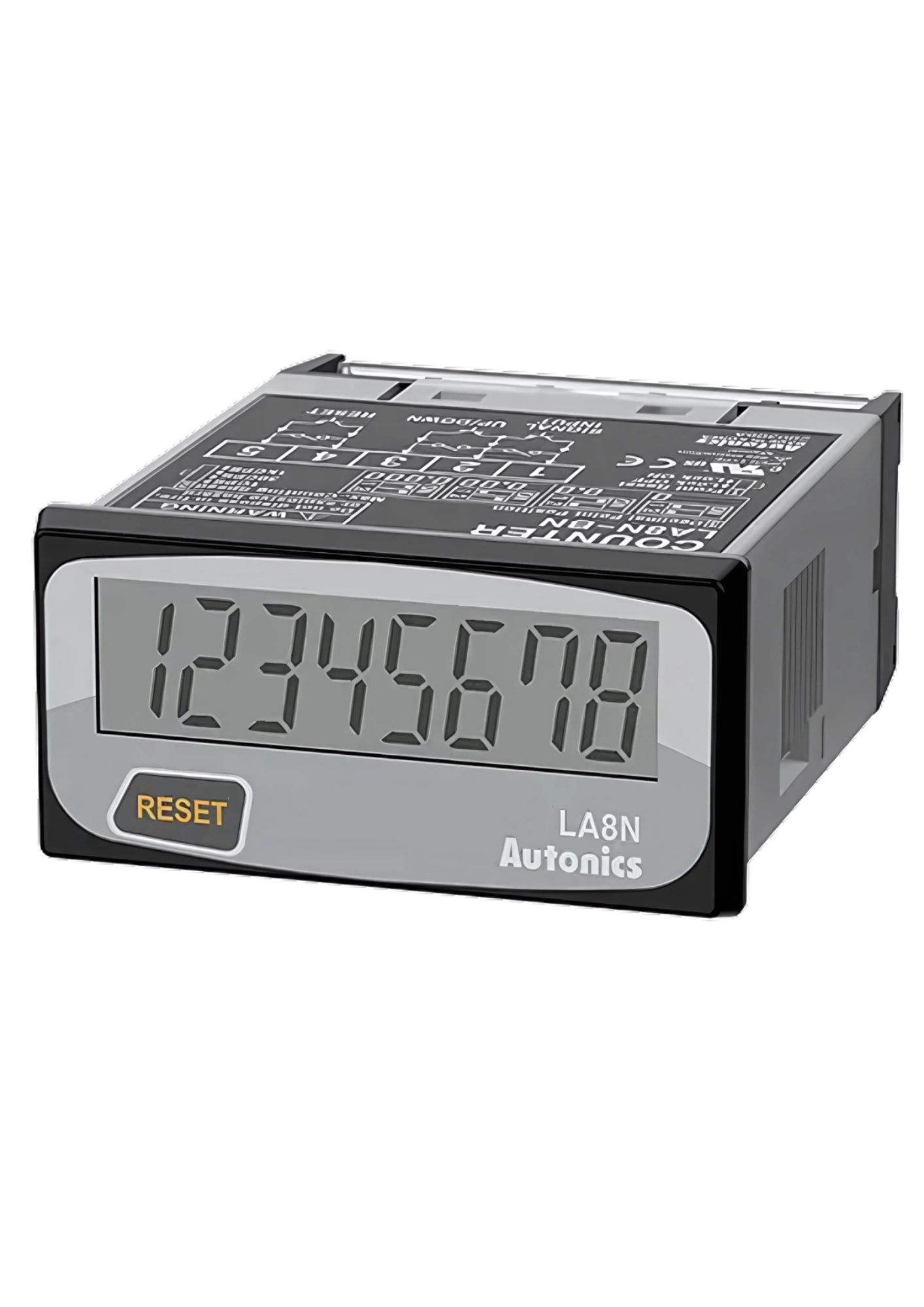

Autonics LA8N-BN,  Compact 8-Digit, 7 Segment LCD Digital Counter, Panel Mount
Autonics LA8N-BN,  Compact 8-Digit, 7 Segment LCD Digital Counter, Panel Mount Autonics LA8N-BN,  Compact 8-Digit, 7 Segment LCD Digital Counter, Panel Mount

Autonics LA8N-BN, Compact 8-Digit, 7 Segment LCD Digital Counter, Panel Mount

In stock
SKU
LA8N-BN
Special Price ₹2,052.60 Regular Price ₹3,732.00
(18% GST Extra)
Add to Wish List
  • Display method : 8-digit 7-segment LCD
  • Operation method : Count up, Count down, Count up/down
  • Terminal : Terminal block
  • Power supply : Built-in battery(over 7 years)
  • Min. signal Width : 20ms
  • Control output : Indicator
  • Protection structure : IP66(front panel)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display digits: 8-digit
  • Display method:LCD Zero Blanking (character size: W 3.4 × H 8.7 mm)
  • Max. counting speed:1 cps, 30 cps, 1 kcps
  • Operation method: Count up, count down, count up/down
  • Counting range: -9999999 to 99999999
  • Input method: No-voltage input
  • Counting input (H):Short Residual voltage: ≤ 0.5 VDC~ Max. impedance: ≤ 10 kΩ
  • Counting input (L): Open Min. impedance: ≥ 750 kΩ
  • RESET input: No-voltage input
  • Min. signal width(UP, DOWN): ≈ 20 ms
  • Min. signal width(RESET): ≈ 20 ms
  • Unit weight (packaged):≈ 50g (≈ 96g)
  • Power supply: Built-in battery (CR2477)
  • Battery life cycle: ≳ 7 years (at ≈ 20℃)
  • Backlight power: 24 VDC~ ± 10 %
  • Insulation resistance: ≥ 100 MΩ (500 VDC~ megger)
  • Dielectric strength: 2,000 VAC~ 60 Hz for 1 min
  • Vibration:0.75 mm double amplitude at frequency of 10 to 55Hz (for 1 minute) in each X,Y,Z direction for 1 hour
  • Shock:300 m/s2 (≈ 30G) in each X, Y, Z direction for 3 times
  • Ambient temp.: -10 to 55℃, storage: -25 to 65℃ (no freezing or condensation)
  • Ambient humi.:35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation)
  • Protection rating: IP66 (front part, when using the rubber waterproof ring, IEC standard)
