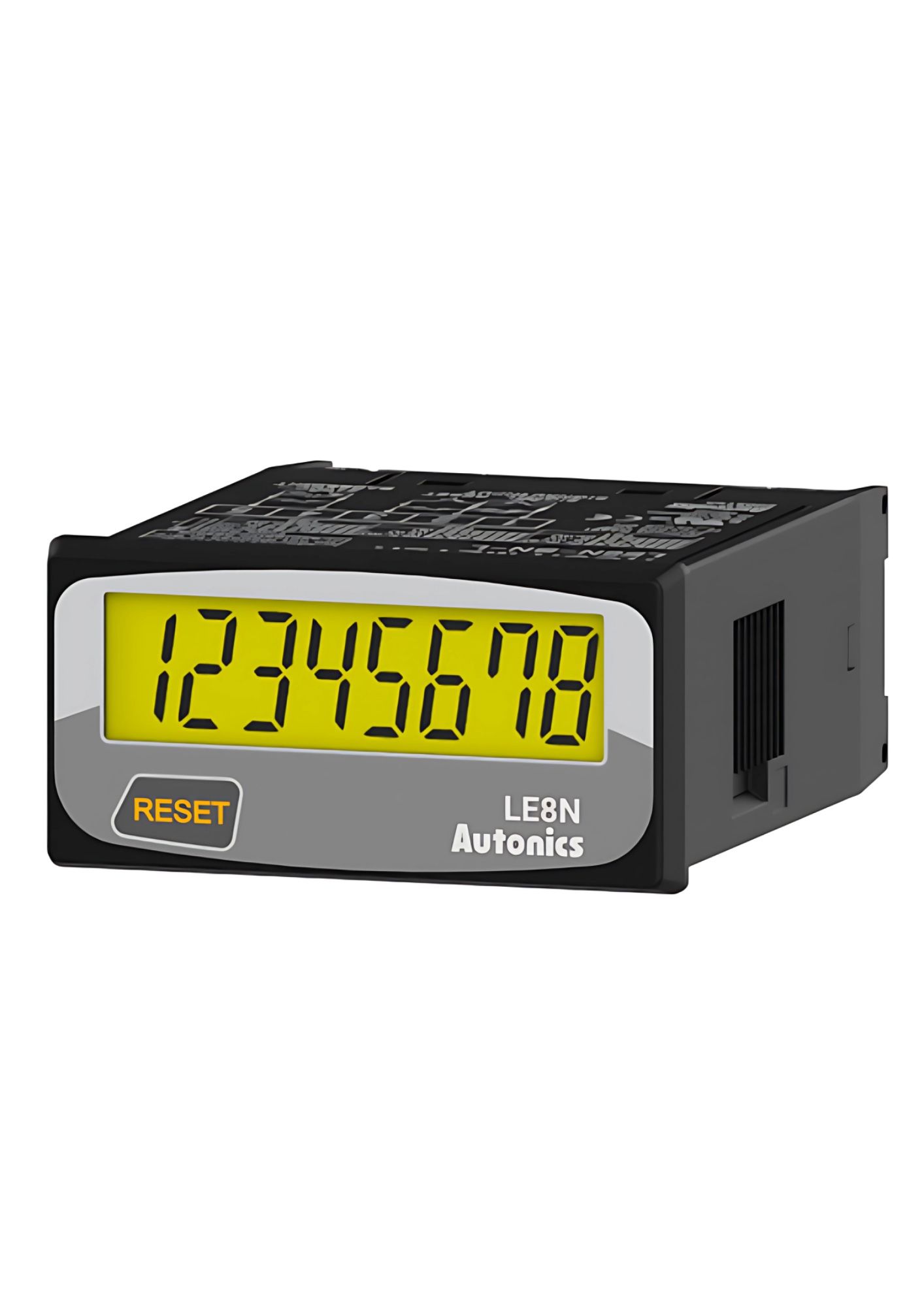

Autonics LE8N-BF, LCD Digital Timer, Size 48x24mm, Panel Mount
Autonics LE8N-BF, LCD Digital Timer, Size 48x24mm, Panel Mount Autonics LE8N-BF, LCD Digital Timer, Size 48x24mm, Panel Mount

Autonics LE8N-BF, LCD Digital Timer, Size 48x24mm, Panel Mount

Out of stock
SKU
LE8N-BF
Special Price ₹1,936.00 Regular Price ₹3,520.00
(18% GST Extra)
  • No additional power due to internal battery
  • Signal input method: no-voltage input, voltage input, free voltage input
  • Screw terminal type (attaching terminal cover)
  • LCD display, backlight model
  • Protection rating: IP66

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display digits:8-digits
  • Input method: Free voltage input
  • Display method: LCD Zero Blanking (character size: W3.4 × H8.7 mm)
  • Operation method: Count up
  • Time range:0 to 99999999
  • Error: Time/Temp.: ± 0.01%
  • Counting input(H): 24-240VAC~/6-240VDC
  • Counting input(L): 0-2VAC~/0-2.4VDC
  • RESET input: No-voltage input
  • Min. signal width : SIGNAL INPUT, RESET: ≳ 20 ms
  • Power supply: Built-in battery(CR2477)
  • Battery life cycle: ≳ 10 years (at ≈ 20℃)
  • Backlight power: 24VDC ± 10%
  • Insulation resistance: ≥ 100 MΩ (500VDC - megger)
  • Dielectric strength: Between the charging part and the case: 2,000 VAC ~ at 50/60 Hz for 1min
  • Vibration: 0.75 mm double amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 1 hour
  • Vibration(malfunction): 0.5 mm double amplitude at frequency of 10 to 55Hz in each X,Y,Z direction for 10 min
  • Shock: 300 m/s2 (≈ 30 G) in each X,Y,Z direction for 3 times
  • Shock (malfunction): 100 m/s2 (≈ 10 G) in each X,Y,Z direction for 3 times
  • Ambient temperature:-10 to 55℃, storage: -25 to 65℃ (no freezing or condensation)
  • Ambient humidity: 35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation)
  • Protection rating: IP66 (front part, when using the rubber waterproof ring, IEC standard)

No specifications available for this product.
